BODY SEALING LOCATIONS
TSB Revision
CORROSION PROTECTION
4-2
BODY SEALING LOCATIONS
M4040001000138
If the sealant application is directly visible on the
outer plate and requires appearance quality of the
application in areas such as the drip rail, pillar, clinch
and so on, then apply the sealant so that it is flat, or
wipe off any excess mounding after the application.
Be careful not to obstruct the water draining hole.
NOTE: The bold dotted line indicates the application
area on the rear.
.

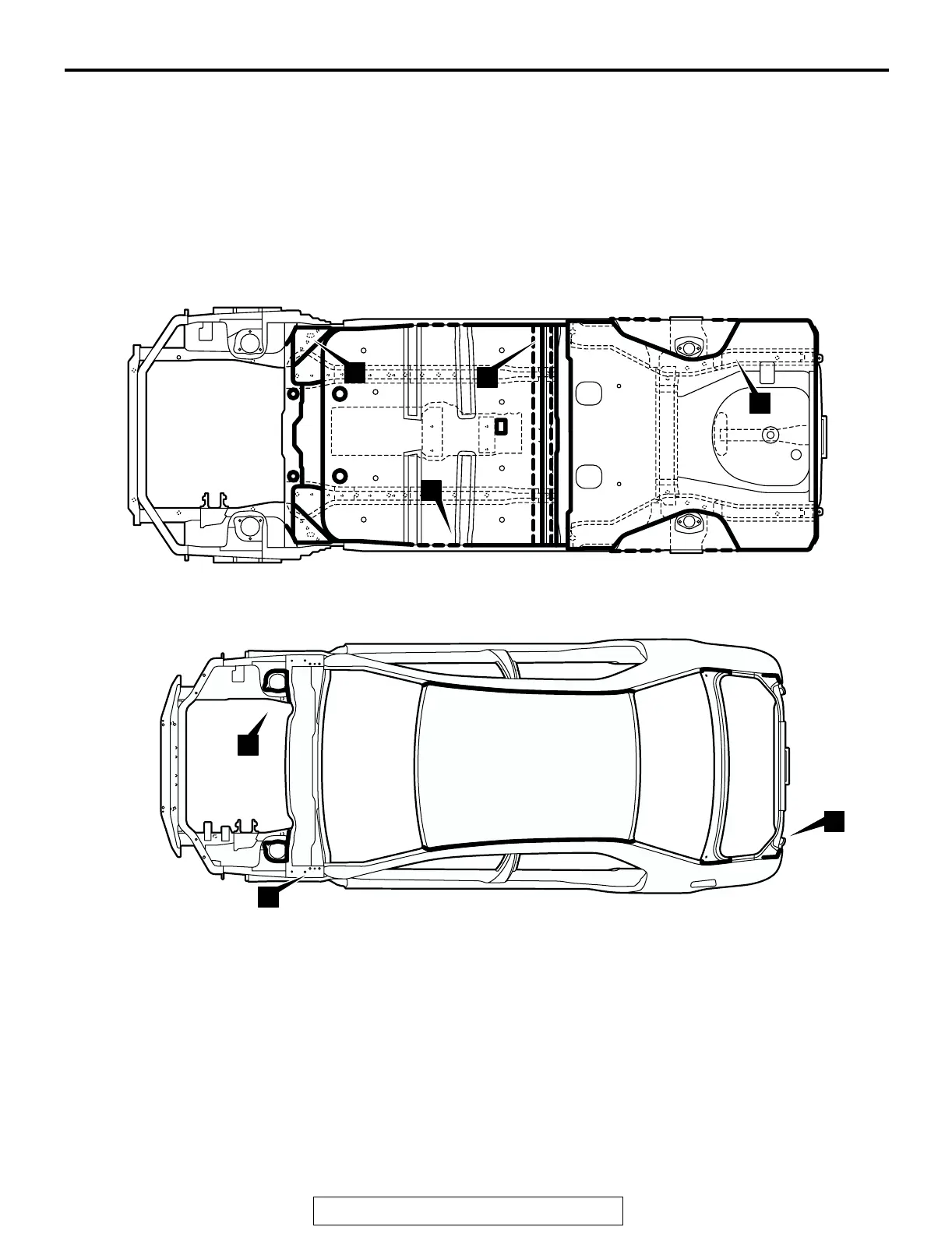

FLOOR
UPPER BODY
AB202132
AB
1
2
3
4
AB202133
5
6
7
AB
To Next Page
