MAIN BODY
BODY
42-5
BODY SHELL
M2420003000093
Impact safety body

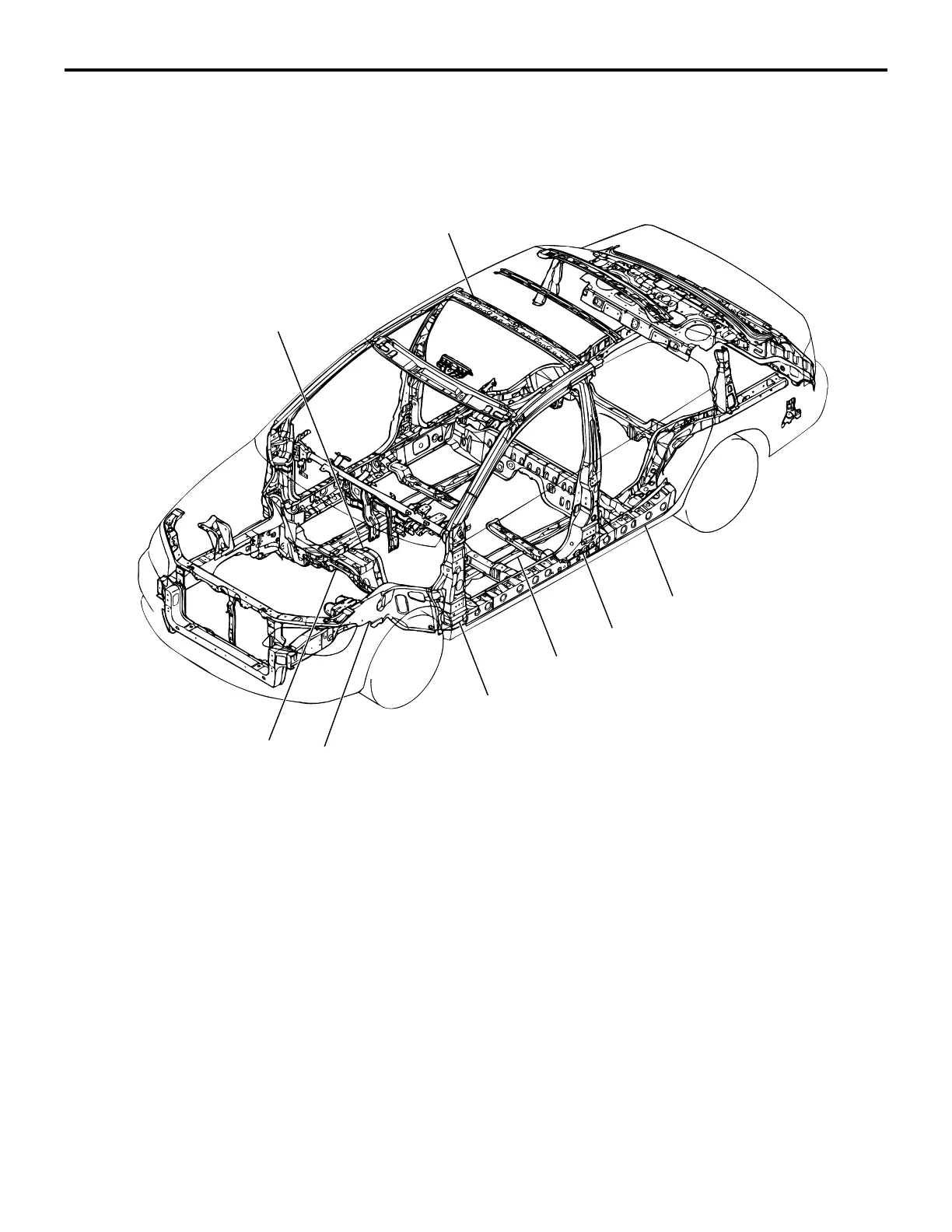

The following structure ensures survival space dur-
ing impact and facility to rescue passengers.
1. Application of enlarged and linear cross section
of front side member
2. Addition of dash panel cross member
3. Application of thicker dash panel lower
4. Enlarged cross section of front floor side member
5. Enlarged cross section of side sill outer reinforce-
ment
6. Thicker front pillar reinforcement and center pillar
reinforcement
7. Enlarged cross section of roof bow
AB201008
6
1
2
4
3
6
7
5
AB
