LIGHTING
CHASSIS ELECTRICAL
54A-5
LIGHTING
M2540004000192
EXTERIOR LIGHTS
HEADLIGHT ASSEMBLY
• A high intensity discharge (HID) headlight is pro-
vided for low-beam headlight, so that visibility is
greatly improved compared with usual halogen
headlight. In structure and operation, refer to .
• The front turn-signal light, position light and fog
light are integrated in a single unit for four bulb
type headlight.
REAR COMBINATION LIGHT
• A rear combination light is exclusive for EVOLU-
TION.
HIGH MOUNT STOP LIGHT
• A high mount stop light is installed to the rear
shelf.
.
NOTE: The brackets ( ) show the bulb type.
.

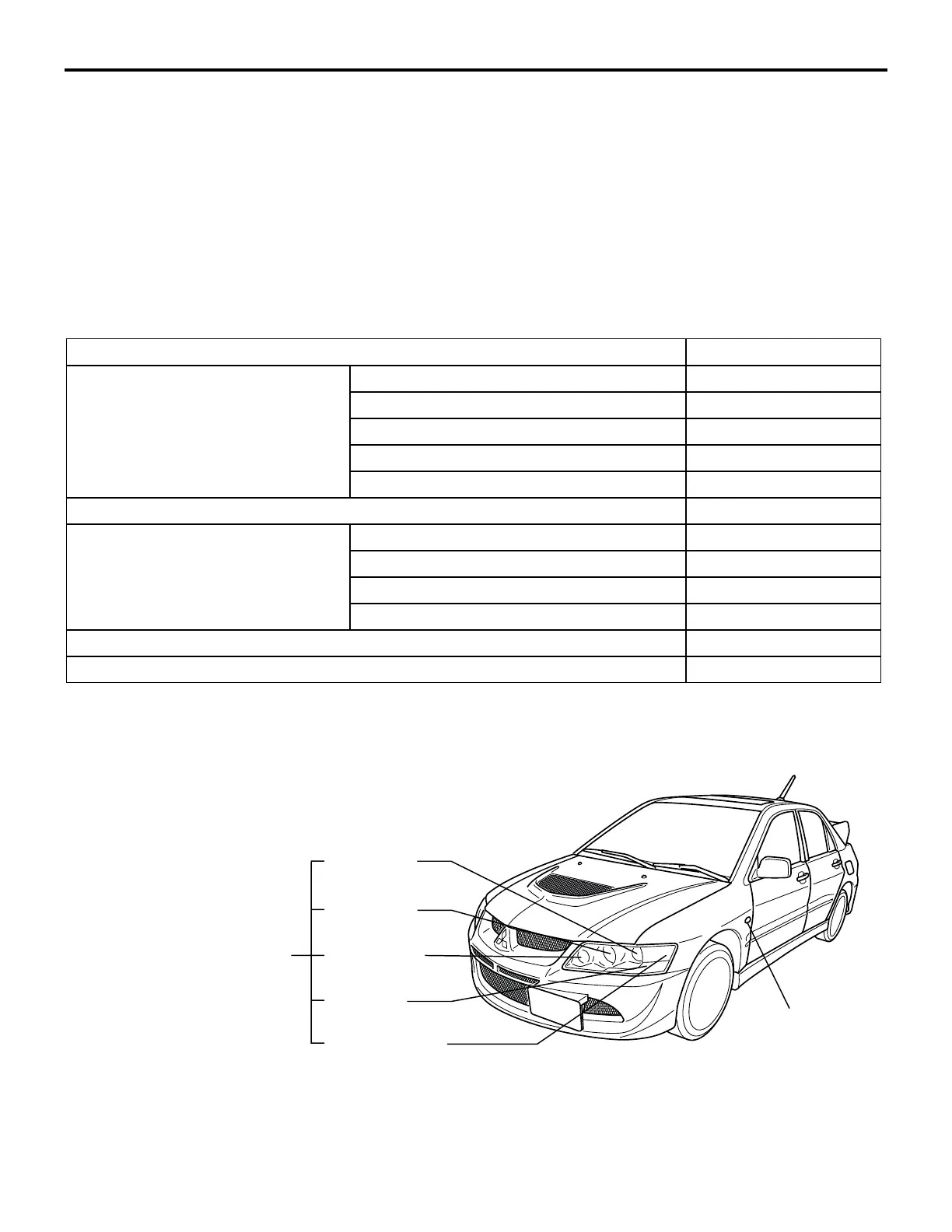

CONSTRUCTION DIAGRAM
ITEM SPECIFICATIONS
Headlight assembly W High-beam W (halogen bulb) 60 (HB3)
Low-beam W (discharge bulb) 35 (D2S)
Fog light W 51 (HB4)
Position light W 5
Front turn-signal light W 21
Side turn-signal light W 21
Rear combination light W Tail W 5
Tail/stop W 5/21
Turn-signal W 21
Back-up W 21
High mount stop light W 21
License plate light W x number 5 × 2
AC210961
AB
FRONT
TURN
SIGNAL
LIGHT
FOG LIGHT
HEADLIGHT
ASSEMBLY
HEADLIGHT
(LOW-BEAM)
SIDE TURN
SIGNAL LIGHT
POSITION LIGHT
HEADLIGHT
(HIGH-BEAM)
