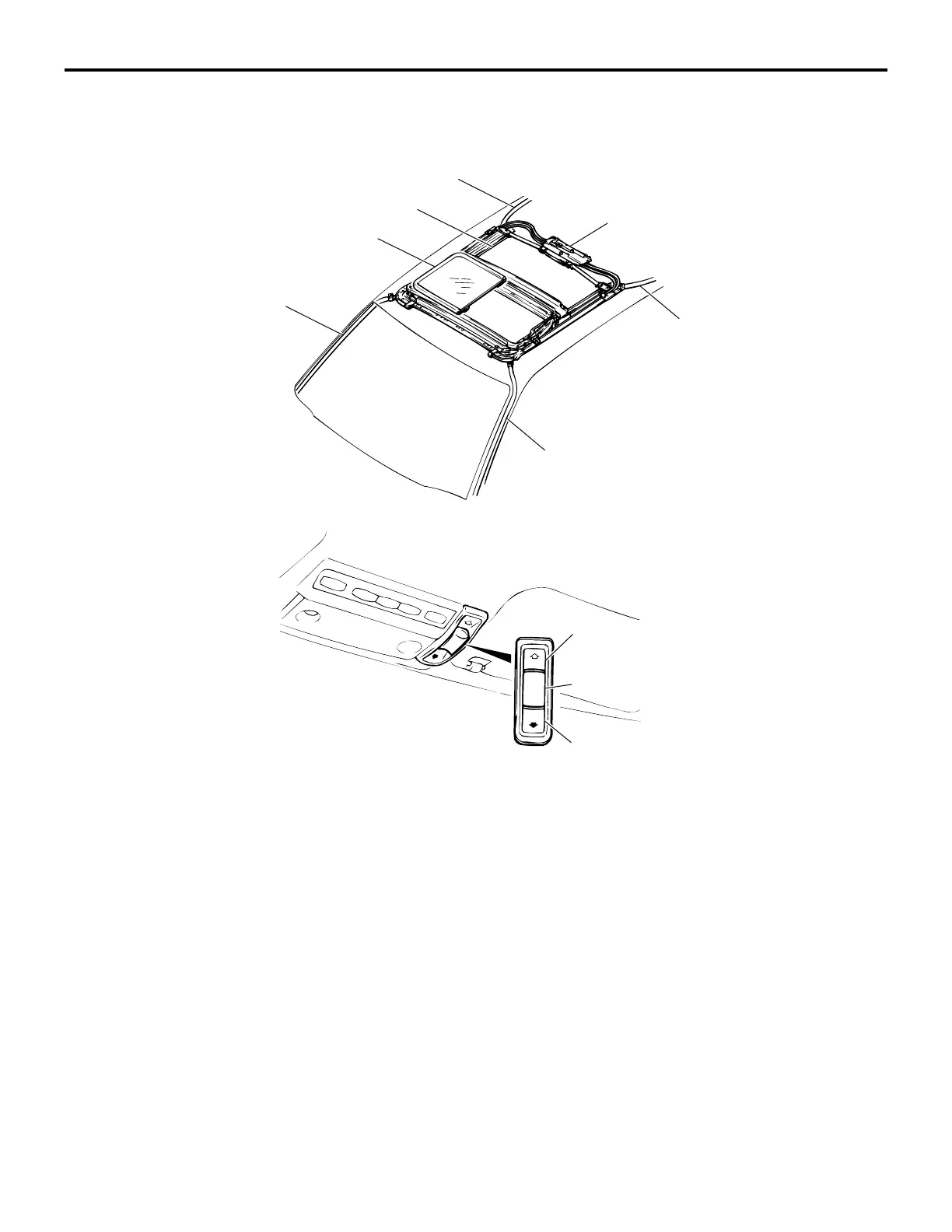

Construction diagram
The power sliding glass sunroof with the tilt-up func-
tion to provide sufficient ventilation by tilting up
(30mm) as well as sufficient sunlight and a sense of
emancipation by opening the sunshade even if the
roof lid glass is fully closed is installed on some mod-
els as an option. This sunroof has the following fea-
tures:
• All functions, including sliding open/close, tilting
up/down, and stop can be done by operating a
single switch. Also, all functions can be done by
one touch operation.
• Jamming prevention mechanism in which the roof
lid glass moves in the opposite direction and
stops during sliding close or tilt down movement
when the outside force is applied is featured.
• Due to the elimination of manual operation in the
event of a malfunction, a new function of moving
the roof approximately 30 mm increments to the
fully closed position is adopted. This occurs
whenever the close/down switch is pressed after
jamming prevention mechanism is disabled,
when a reverse movement repeated for 5 times
or more is triggered by deformation, or when jam-
ming prevention mechanism is activated by error.
• After the ignition switch is turned to the OFF posi-
tion, the sunroof can be operated for 30 seconds.
(If the driver's seat door is open during that partic-
ular time, the sunroof can be operated for another
30 seconds. However, as soon as the door is
closed, the key off operation function is disabled.)
AC210365AB
DRAIN HOSE
SUNSHADE
ROOF LID GLASS
DRAIN HOSE
DRAIN HOSE
DRAIN HOSE
SUNROOF MOTOR ASSEMBLY
(BUILT-IN SUNROOF ECU)
OPENING SWITCH
TILT-UP SWITCH
CLOSE/DOWN SWITCH
