SUNROOF
BODY
42-18
• Fully closing operation as a transmitter adjust-
ment function can be done with the lock switch.
(Refer to GROUP 54B, SIMPLIFIED WIRING
SYSTEM - SWSP.54B-6.)
DESCRIPTION OF STRUCTURE AND
OPERATION
.
MOTOR
The motor is installed at the front of the housing. It
consists of the motor body, drive gear and sunroof-
ECU.
SUNROOF-ECU
The sunroof-ECU has a built-in microprocessor
which controls motor operation in accordance with
signals from the sunroof switches and from the
ETACS.

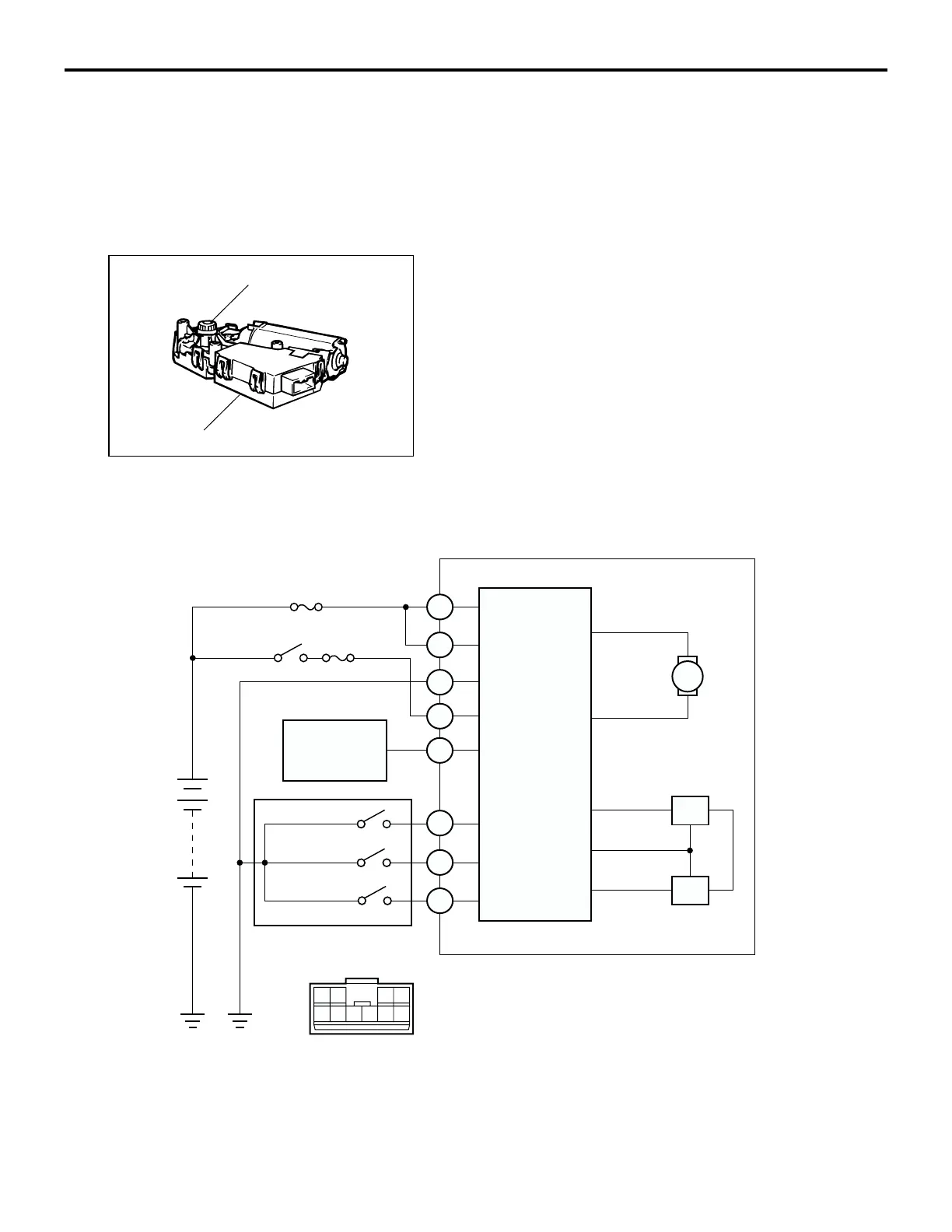

SYSTEM DIAGRAM
AC210361
DRIVE GEAR
AB
SUNROOF-ECU
3
2
8
7
6
10
M
AC210351
5
4321
109876
1
5
AB
IGNITION SWITCH
ETACS-ECU
CLOSE/DOWN
SWITCH
UP SWITCH
OPEN SWITCH
SUNROOF SWITCH
SUNROOF-ECU
MOTOR
SENSOR 1
SENSOR 2
SENSOR
POWER
SUPPLY
