COMBINATION METER
CHASSIS ELECTRICAL
54A-8
COMBINATION METER
M2540005000151
The combination meter features large, clearly visible
analog gauges. The gauges are arranged with the
tachometer in the middle, the speedometer at left,
and the fuel and coolant temperature gauges and
indicator lamps at right.
• The speedometer is an electronic type speedom-
eter which operates by the pulse signal gener-
ated by the speed sensor.
• A large, clear LCD type odo-tripmeter is provided.
The odometer continuously displays values while
the tripmeter has a twin-trip (trip A, trip B) func-
tion which is switched by a reset button.
• The fuel gauge has a triangular mark indicating
the location of the fuel filler door on the left side of
the vehicle.
• A position light indicator is provided to show
clearly the taillight lighting condition.

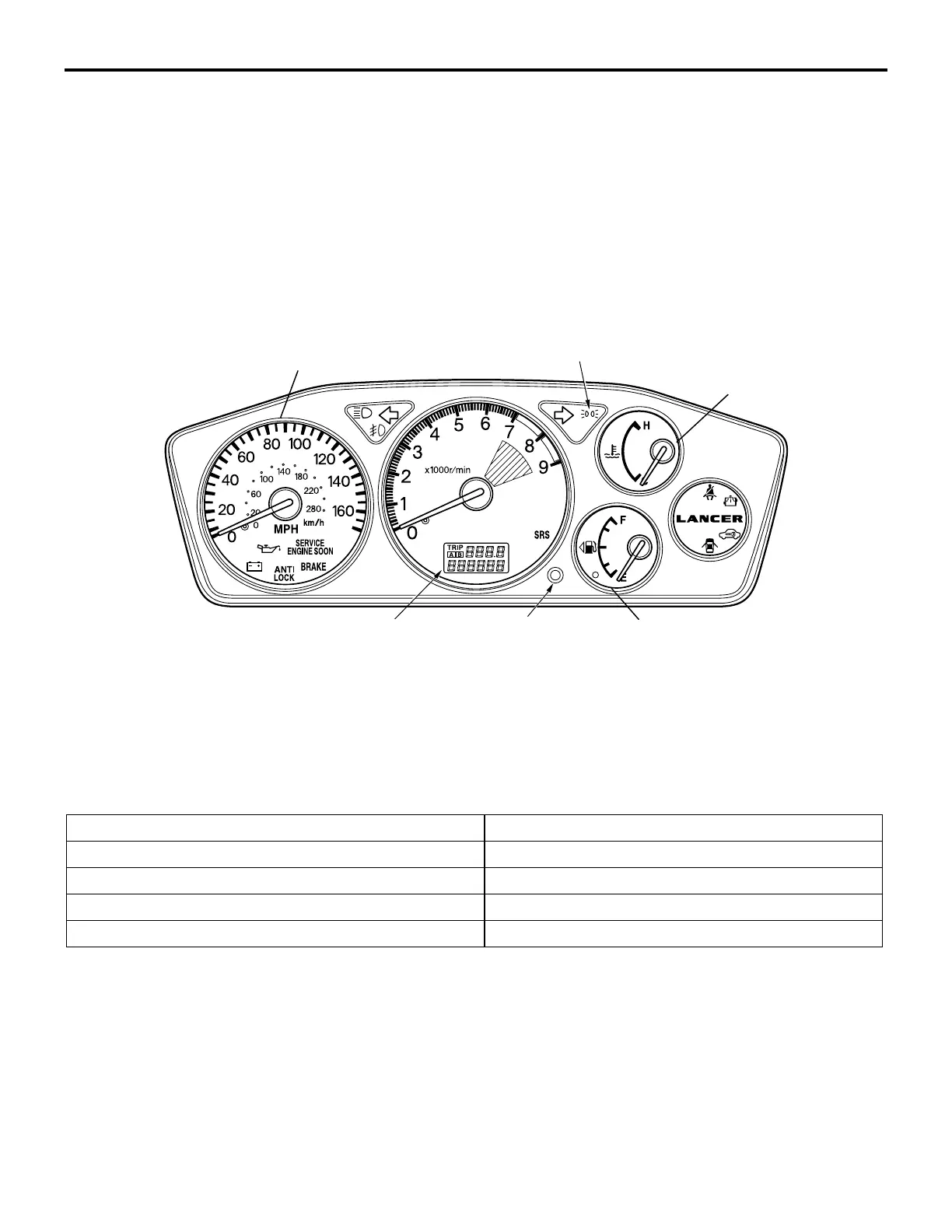

CONSTRUCTION DIAGRAM
RADIO, CD PLAYER, SPEAKER, ANTENNA
M2540006000143
RADIO AND CD PLAYER
Two types of 1 DIN size integrated audio units are
provided for the radio and tape player.
SPEAKER
Six speakers (front door: 16 cm, rear shelf: 16 cm,
tweeter: 3.5 cm) are provided.
The speaker is a dual cone full range speaker.
ANTENNA
A roof whip antenna is provided.
AC209828
COOLANT TEMPERATURE
GAUGE
SPEEDOMETER
FUEL GAUGE
RESET BUTTON
LCD TYPE
ODO-TRIPMETER
AB
POSITION LIGHT INDICATOR
ITEM AUDIO
AM/FM electronic tuning radio Equipped
CD player Equipped
CD auto-changer (6-disk pack player) Equipped (Option)
Power amplifier with radio 35 W × 4
