SEAT BELT
INTERIOR
52A-8
SEAT BELT RETRACTOR WITH FORCE LIMITER
.
The driver’s/front passenger’s seat belt retractor has been
equipped with a force limiter. The force limiter is a device which
operates when a predetermined force is applied, and limits the
force.
.
OPERATION
1. If a collision energy is transmitted to the seat belt, the ELR
mechanism will operate to lock the seat belt.
2. If the energy increases to a predetermined value, the torsion
bar will be distorted. As the spindle rotates together with the
torsion bar, the seat belt webbing is pulled out, reducing the
impact to the occupants.

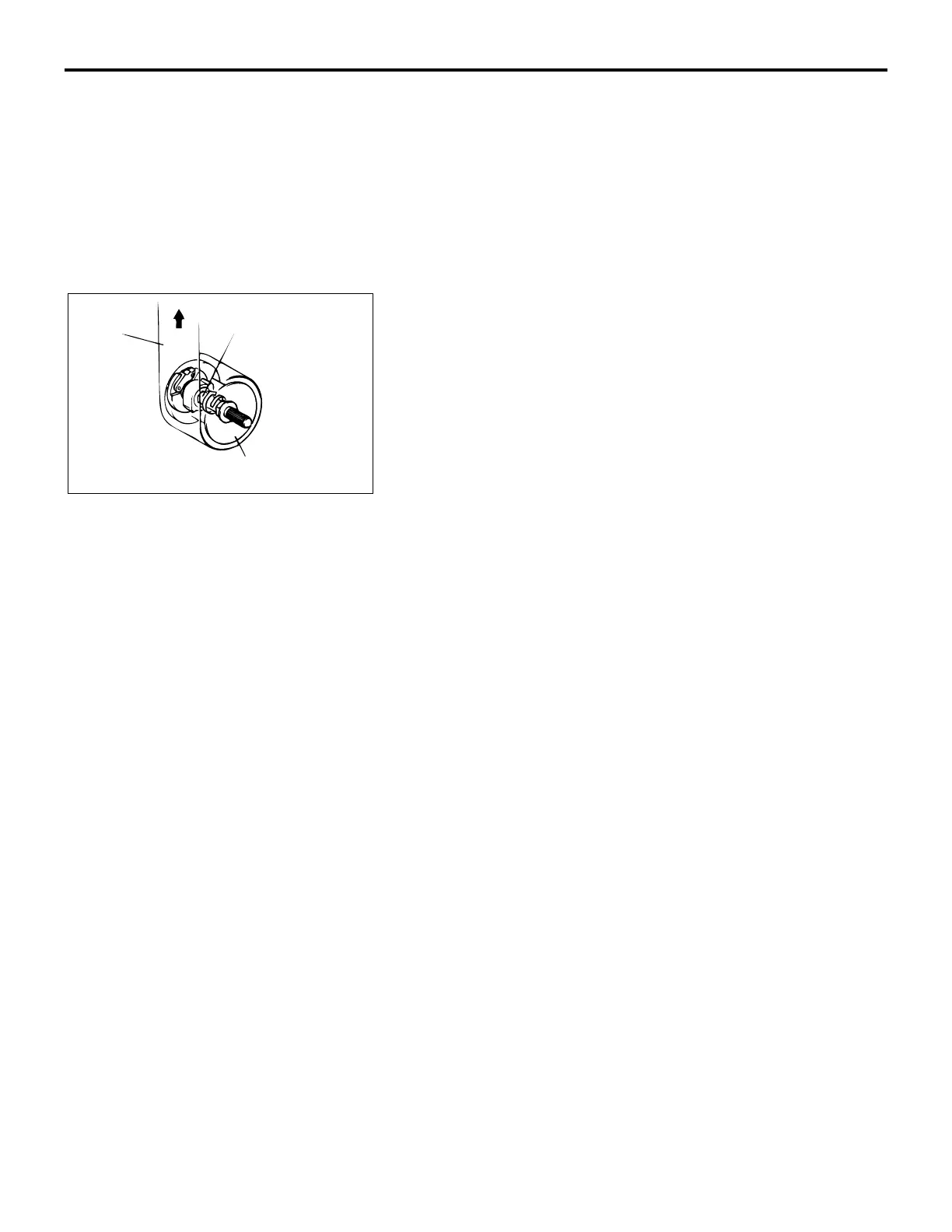

AC100083
TORSION BAR
SPINDLE
BELT
AB
