SYSTEM OPERATION
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
52B-7
SYSTEM OPERATION
M2521001000116
A passenger’s (front) air bag module and clock
spring are the same as OUTLANDER.

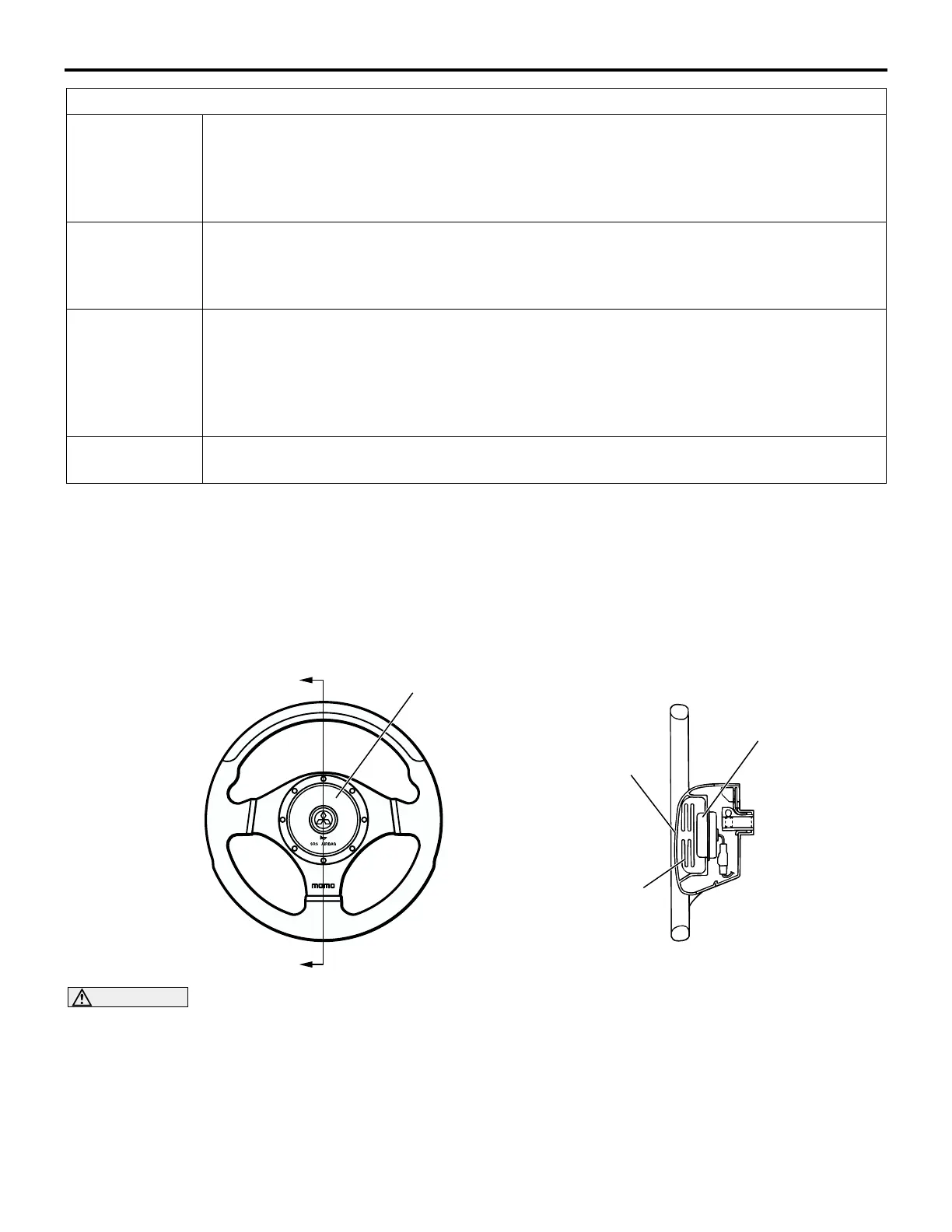

DRIVER’S AIR BAG MODULE
CAUTION
Never disassemble the air bag module.
The driver’s air bag module is incorporated into the
3-spoke steering wheel. The driver’s air bag module
is an assembly part consisting of air bag, module
cover, inflator, and its their fasteners. It is installed
into the steering wheel. The air bag is made from
nylon and inflates by the gas generating from the
inflator. As a driver is being pressed to the air bag, it
deflates discharging gas from two vents at the rear of
the air bag to reduce the shock from the impact. An
inflator that does not contain sodium azide is used.
G WARNING
CHILDREN CAN BE KILLED OR INJURED BY PASSENGER AIR BAG. THE BACK
SEAT IS THE SAFEST PLACE FOR CHILDREN 12 AND UNDER. MAKE SURE ALL
CHILDREN USE SEAT BELTS OR CHILD SEAT. NOT TO BE REMOVED EXCEPT BY
OWNER.
H CAUTION: SRS
FIX STRG. WHEEL AT TIRES STRAIGHT AHEAD BEFORE GEARBOX REMOVAL.
OTHERWISE, MAY DAMAGE SRS CLOCK SPRING MAKING SRS SYSTEM IN
OPERATIVE. RISKING SERIOUS DRIVER INJURY.
I DANGER SEAT BELT PRETENSIONER
CAUTION THIS ASSEMBLY CONTAINS AN EXPLOSIVE INITIATOR
FLAMMABLE MATERIAL
TO PREVENT PERSONAL INJURY
• DO NOT IMPACT, DISMANTLE OR INSTALL IT INTO ANOTHER VEHICLE.
• SERVICE OR DISPOSE OF IT AS DIRECTED IN THE REPAIR MANUAL.
JCAUTION:
DO NOT DISASSEMBLE OR DROP.
LABEL CONTENTS
AC211615
AB
A
A
AIR BAG MODULE
SECTION A - A
INFLATOR
AIR BAG
MODULE COVER
To Next Page
