VENTILATION SYSTEM
HEATER, AIR CONDITIONING AND VENTILATION
55-6
VENTILATION SYSTEM
M2551002000145
DESCRIPTION OF STRUCTURE AND OPERATION
The following increases air volume for ventilation and
for defogging windows.
• Increased outside air intake duct area
• Increased size of air outlet on the back of the rear
bumper
• Installation of blower type defroster

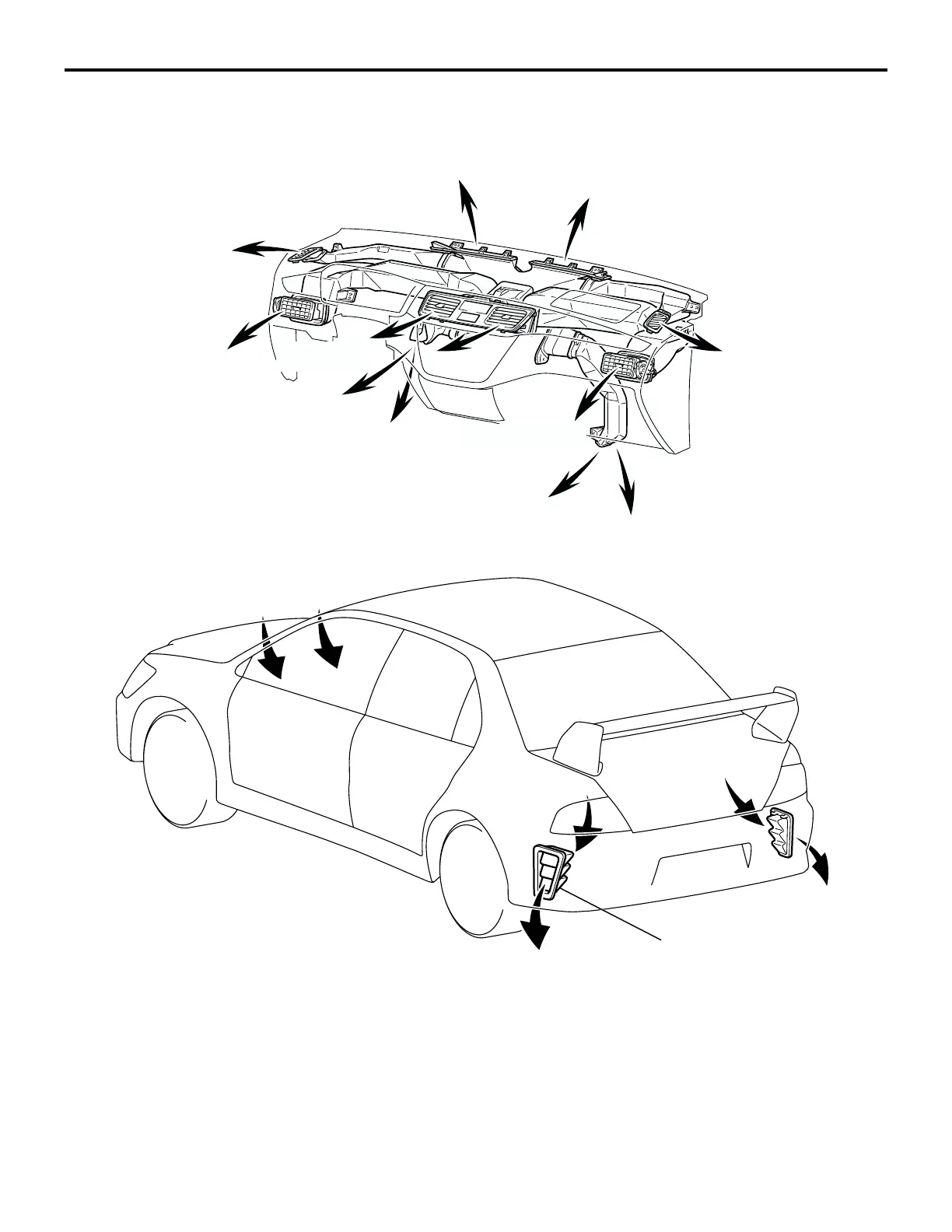

AC210428
TO FRONT DOOR WINDOW
(SIDE DEFROSTER)
SIDE VENTILATOR
CENTER
VENTILATOR
TO DRIVER SEAT FOOTWELL
TO PASSENGER SEAT FOOTWELL
SIDE VENTILATOR
TO FRONT DOOR WINDOW
(SIDE DEFROSTER)
TO WINDSHIELD (DEFROSTER)
AB
AC210865
AIR OUTLET
AB
