GENERAL DESCRIPTION
ENGINE LUBRICATION
12-2
GENERAL DESCRIPTION
M2120000100012
The drawn cup air-cooled type engine oil cooler has
been adopted. The engine oil cooler is installed
below the right headlight assembly and brings in the
air through the oil cooler duct of the front bumper to
cool the engine oil.
SPECIFICATIONS

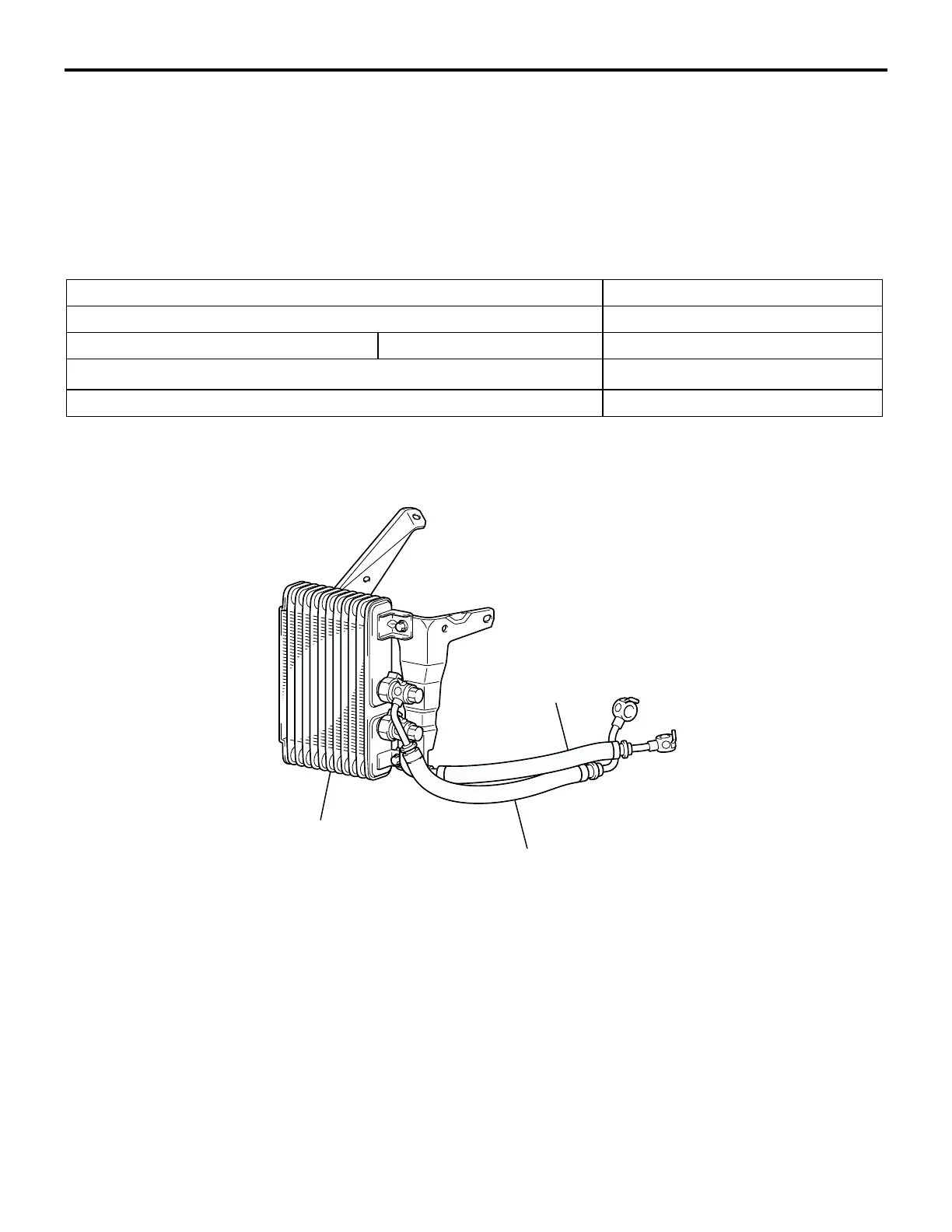

CONSTRUCTION DIAGRAM
ITEM SPECIFICATION
Type Drawn cup type
Core size mm (in) Width × Height × Thickness 160 × 200 × 49 (6.3 × 7.9 × 1.93)
Engine oil cooler oil amount dm
3
(qt)
0.35 (0.37)
Performance kJ/h (kcal/h) 29,900 (7,143)
AC210268
ENGINE OIL COOLER
FEED HOSE
ENGINE OIL COOLER
RETURN HOSE
ENGINE OIL COOLER
AB
