GENERAL DESCRIPTION
CLUTCH
21-2
GENERAL DESCRIPTION
M2210000100063
The clutch is a dry single-disc, diaphragm type using
hydraulic controls.
SPECIFICATIONS

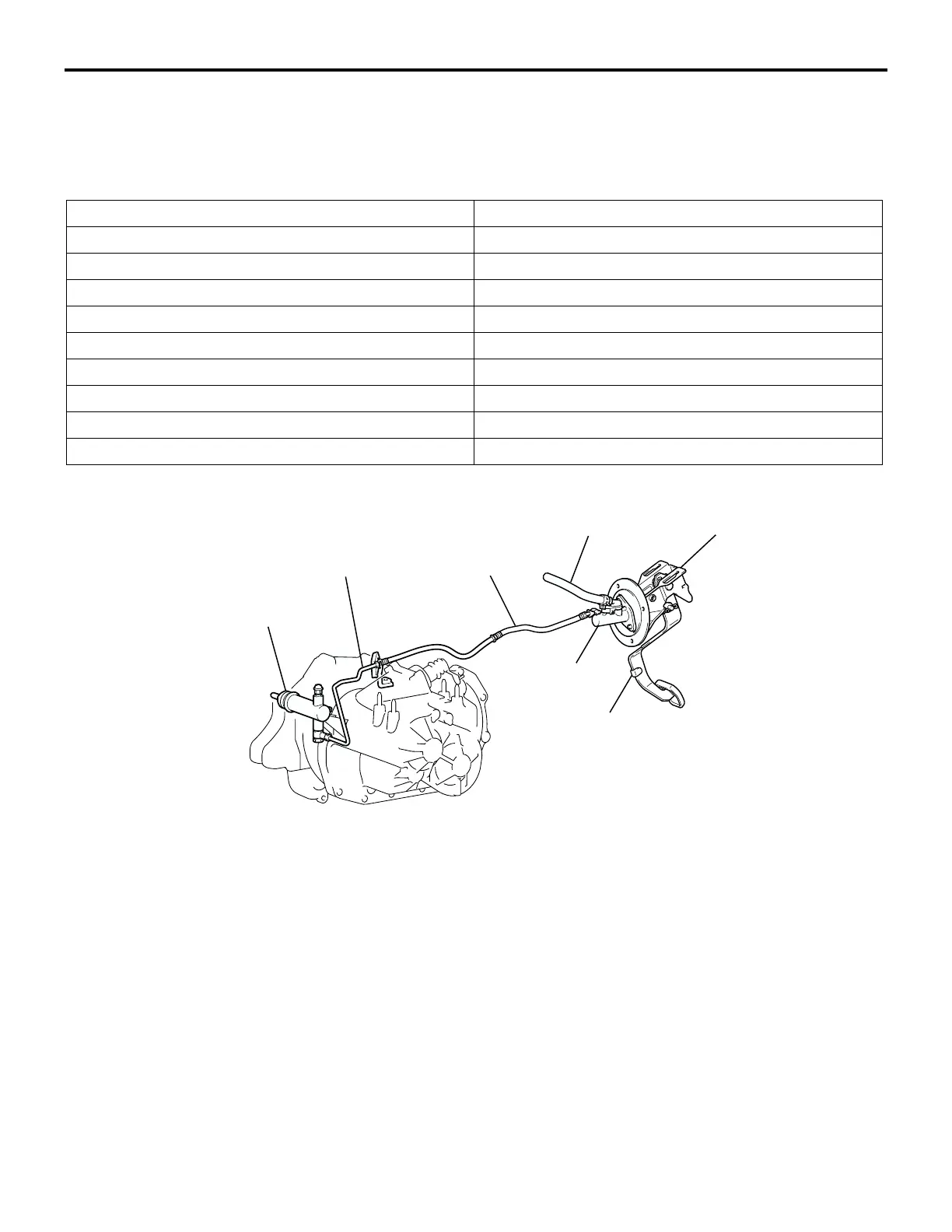

CONSTRUCTION DIAGRAM
ITEM SPECIFICATION
Engine model 4G63-DOHC-Intercooler Turbocharger
Clutch disc type Dry single plate type
Clutch disc facing diameter OD x ID mm (in) 240 × 160 (9.4 × 6.3)
Clutch cover type Diaphragm spring type
Clutch cover setting load N (lb) 9,320 ± 750 (2,095 ± 169)
Control system Hydraulic type
Release cylinder I.D. mm (in) 20.64 (0.81)
Master cylinder I.D. mm (in) 15.87 (5/8)
Clutch fluid Brake fluid DOT 3 or DOT 4
AC211157
AB
CLUTCH RELEASE
CYLINDER
CLUTCH PIPE
CLUTCH HOSE
RESERVOIR HOSE
CLUTCH PEDAL ASSEMBLY
CLUTCH MASTER
CYLINDER
STOPPER
