GENERAL DESCRIPTION
MANUAL TRANSAXLE
22A-3
AC207467
AB
12
11
10
9
8
7
6
5
4
321
19 18 17 16 15 14
20
13

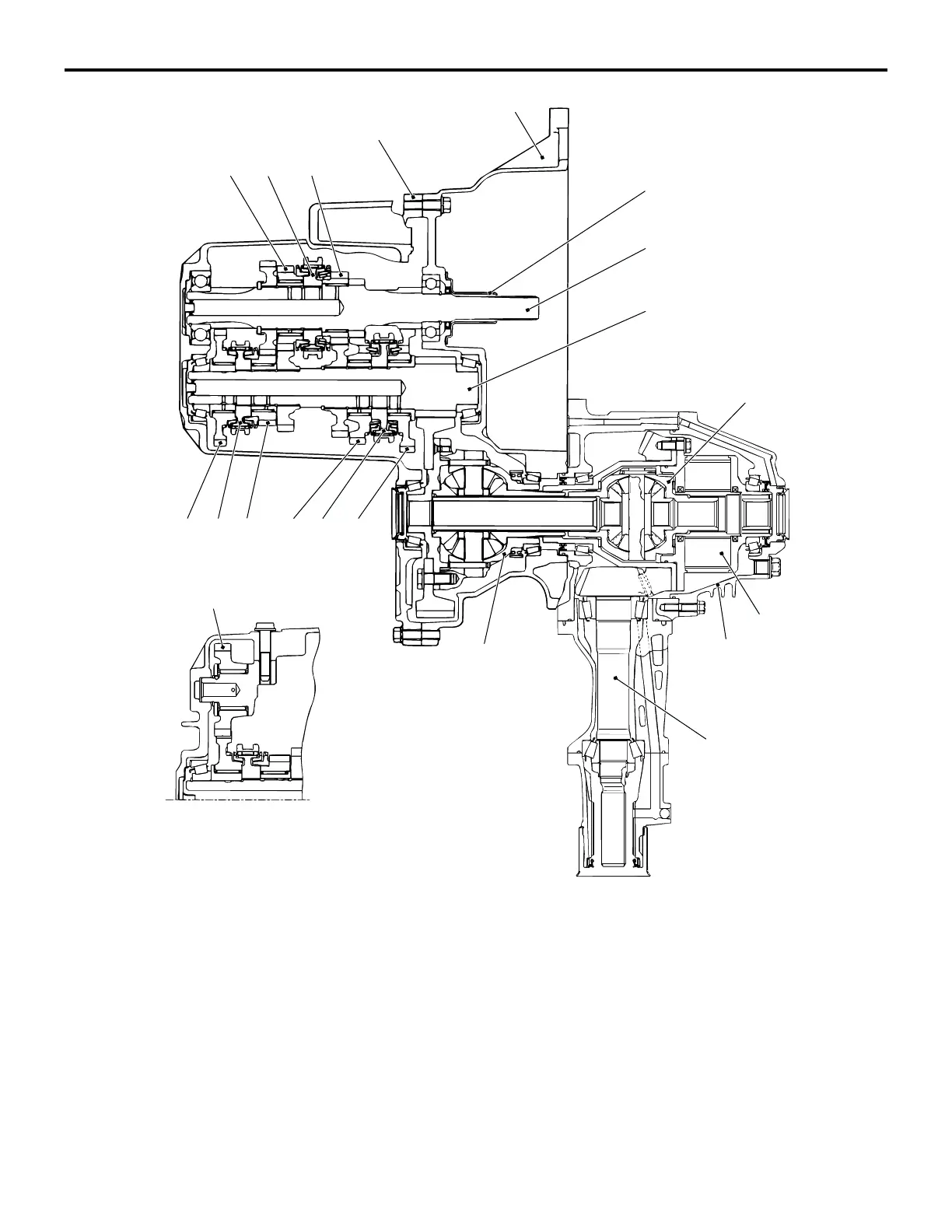

1. 4TH SPEED GEAR
2. 3RD − 4TH SPEED
SYNCHRONIZER HUB
3. 3RD SPEED GEAR
4. TRANSAXLE CASE
5. CLUTCH HOUSING
6. REVERSE BEARING RETAINER
7. INPUT SHAFT
8. OUTPUT SHAFT
9. FRONT DIFFERENTIAL
10. VISCOUS COUPLING UNIT (VCU)
11. TRANSFER CASE
12. HYPOID PINION
13. CENTER DIFFERENTIAL
14. 1ST SPEED GEAR
15. 1ST − 2ND SPEED
SYNCHRONIZER HUB
16. 2ND SPEED GEAR
17. 5TH SPEED GEAR
18. 5TH − REVERSE SPEED
SYNCHRONIZER HUB
19. REVERSE SPEED GEAR
20. REVERSE IDLER GEAR
