GENERAL DESCRIPTION
PROPELLER SHAFT
25-2
GENERAL DESCRIPTION
M2250000100089
A 3 way split, 4-joint type propeller shaft with center
bearing, with the following features is utilized:
• The No.3 joint incorporates an LJ, which is light
and compact.
• An insulator is located at the center bearing to
vehicle body joint, reducing vibration.
• For environmental protection, a lead-free grease
is used on the LJ and the center bearing.
NOTE: .
•
LJ: Löbro joint
SPECIFICATIONS
NOTE: *:The propeller shaft length indicates the
length between the center points of each joint.

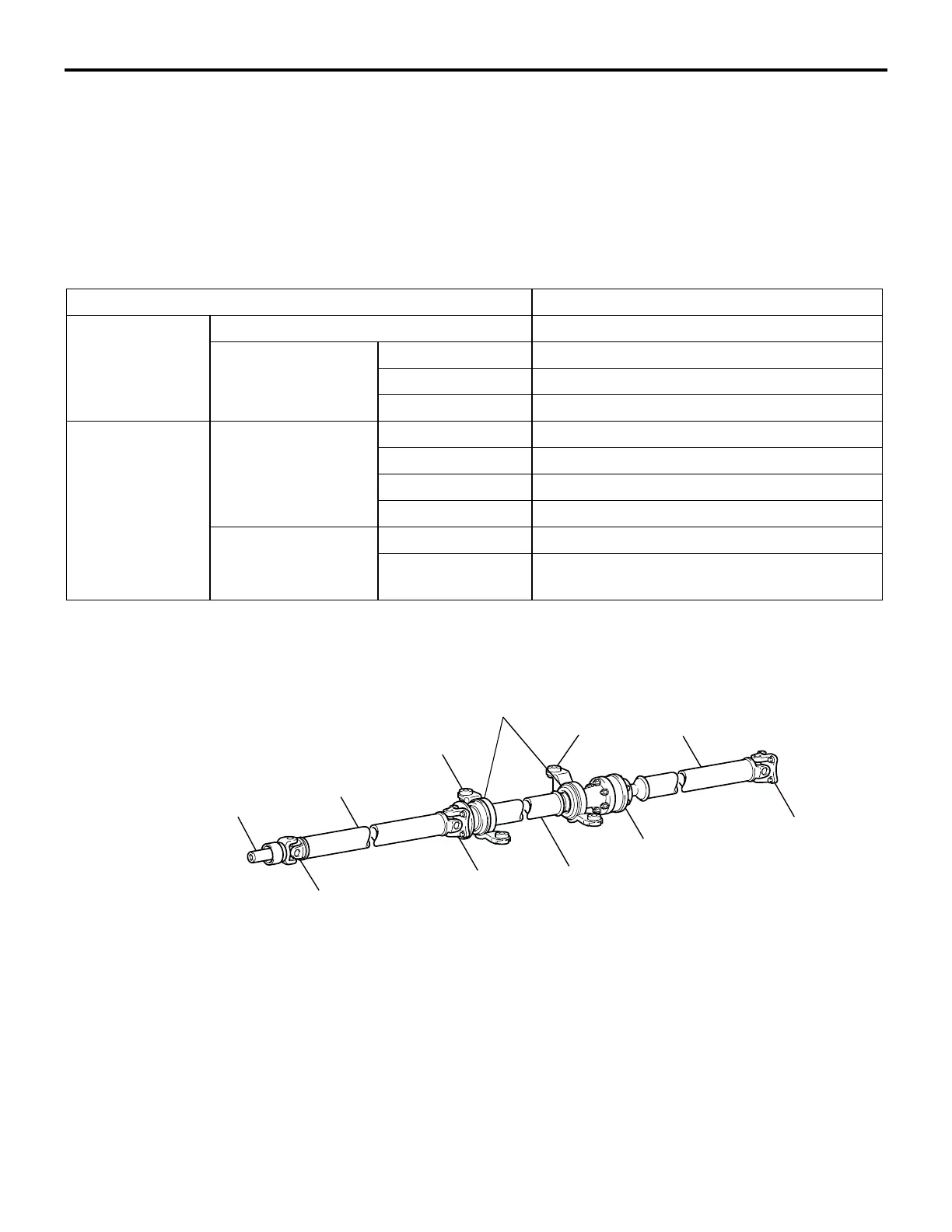

CONSTRUCTION DIAGRAM
ITEM SPECIFICATION
Propeller shaft Type 3 way split 4-joint type propeller shaft
Length* × Outside
diameter mm (in)
Front 608.5 x 65 (24.0 x 2.56)
Center 551 x 65 (21.7 x 2.56)
Rear 750.5 x 65 (29.5 x 2.56)
Universal joint Type No.1 Cross type (cauking method)
No.2 Cross type (cauking method)
No.3 Constant velocity type (LJ)
No.4 Cross type (cauking method)
Cross type joint Bearing Non-lubrication type needle roller bearing
Journal diameter
mm (in)
16.3 (0.64)
AC211158
CENTER BEARING
SLEEVE YOKE
No.1 JOINT
FRONT
PROPELLER SHAFT
No.2 JOINT
CENTER
PROPELLER
SHAFT
REAR
PROPELLER SHAFT
No.4 JOINT
No.3 JOINT(LJ)
AB
INSULATOR
INSULATOR
