REAR AXLE
REAR AXLE
27-2
REAR AXLE
M2270003000083
The rear axle consists of rear wheel hub assembly,
knuckles and driveshafts, and has the following fea-
tures:
• The wheel bearing incorporates a unit ball bear-
ing (double-row angular contact ball bearing) for
reduced friction.
• The rear wheel hub assembly combines the hub,
wheel bearing, housing, and oil seal in a single
unit for fewer parts, better rigidity, improved
assembly precision, and better structural organi-
zation.
• The driveshaft on wheel side incorporates an EBJ
type constant velocity joint.
• The driveshaft on differential side incorporates a
TJ type constant velocity joint.
• ABS rotors for detecting the wheel speed are
press-fitted to the EBJ.
• For environmental protection, a lead-free grease
is used on the joints.
NOTE: .
•
EBJ: Eight Ball Fixed Joint; The use of the
smaller-sized eight balls inside the joint achieves
weight saving and compact size compare with BJ
(Birfield Joint).
•
TJ: Tripod Joint
SPECIFICATIONS
NOTE: The wheel bearing is part of the hub, there-
fore its size is not listed here.

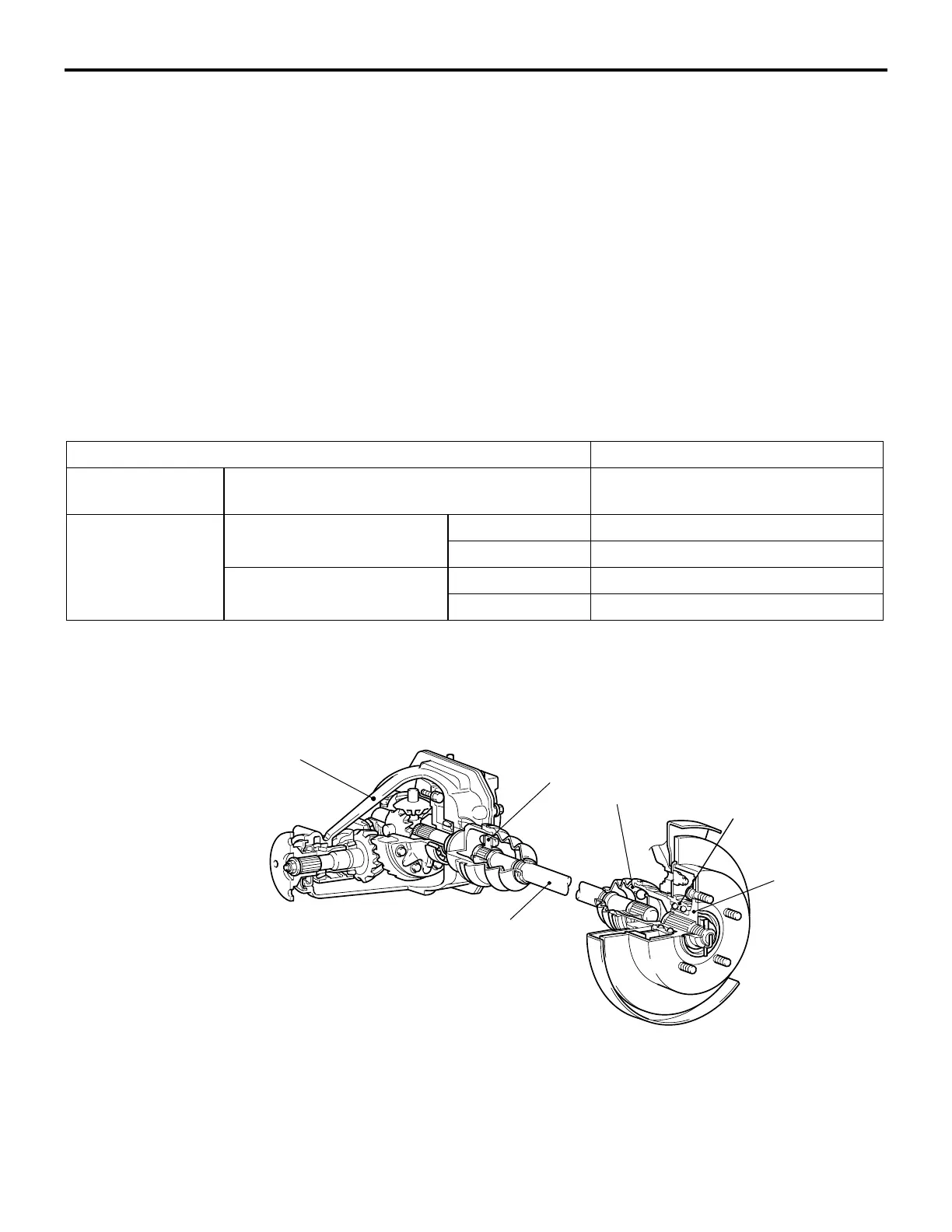

CONSTRUCTION DIAGRAM
ITEM SPECIFICATION
Wheel bearing Type Unit ball bearing (Double-row angular
contact ball bearing)
Drive shaft Type Outer EBJ
Inner TJ
Length (joint to joint) ×
diameter mm (in)
Left 485.6 × 25 (19.1 × 1.0)
Right 575.5 × 25 (22.7 × 1.0)
AC211190
REAR WHEEL
HUB ASSEMBLY
EBJ
TJ
DRIVE SHAFT
DIFFERENTIAL
CARRIER
WHEEL
BEARING
AB
