DIFFERENTIAL MOUNT
The front of differential carrier is supported with the
differential support member via the differential mount
bracket with insulator. The rear is supported with the
differential support arm.

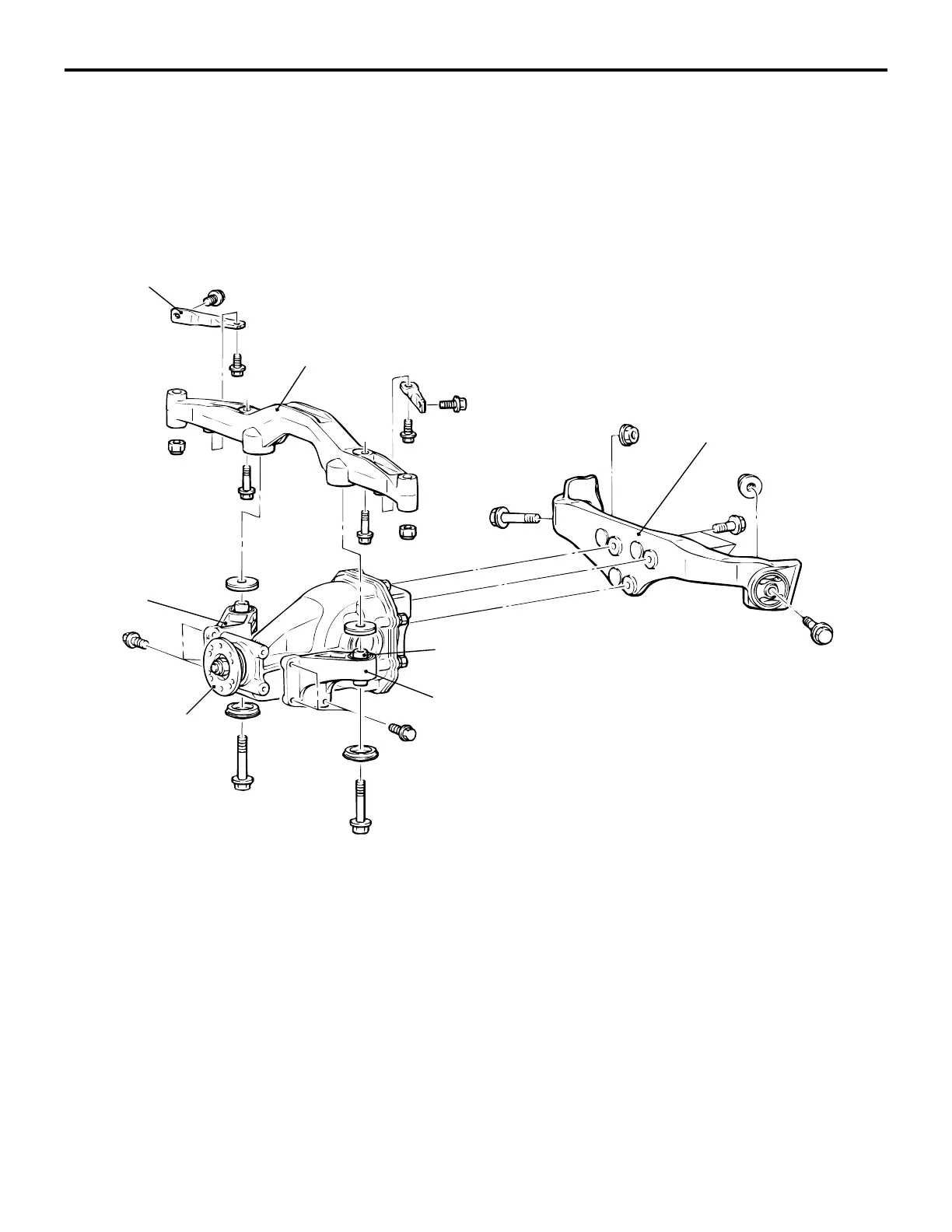

CONSTRUCTION DIAGRAM
AC211191
TOE CONTROL
BAR
DIFFERENTIAL MOUNTING
BRACKET (LH)
DIFFERENTIAL
MOUNTING
BRACKET (RH)
DIFFERENTIAL
CARRIER
AB
DIFFERENTIAL SUPPORT
MEMBER
INSULATOR
DIFFERENTIAL SUPPORT
ARM
