GENERAL DESCRIPTION
REAR SUSPENSION
34-3

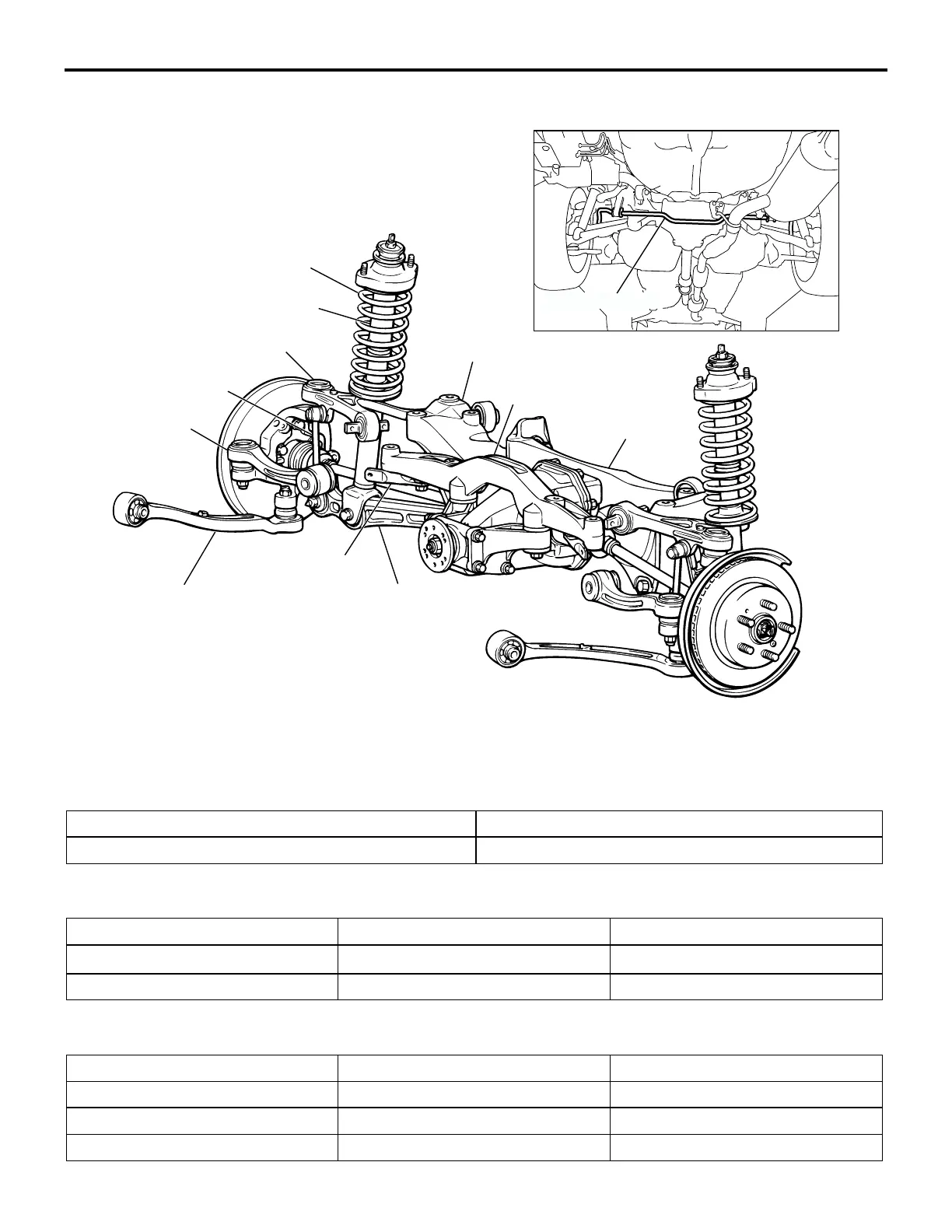

CONSTRUCTION DIAGRAM
SPECIFICATIONS
.
SUSPENSION SYSTEM
.
WHEEL ALIGNMENT
.
COIL SPRING
AC211385
AB
SHOCK ABSORBER
ASSIST LINK
CONTROL BAR
COIL SPRING
CROSSMEMBER
(FORGED ALUMINUM)
LOWER ARM ASSEMBLY
(FORGED ALUMINUM)
TRAILING ARM ASSEMBLY
(FORGED ALUMINUM)
UPPER ARM ASSEMBLY
(FORGED ALUMINUM)
DIFFERENTIAL SUPPORT
MEMBER
DIFFERENTIAL
SUPPORT ARM
STABILIZER BAR
ASSIST LINK
(FORGED ALUMINUM)
STABILIZER BAR LINK
ITEM SPECIFICATION
Suspension method Trailing arm type multi-link
ITEM LANCER EVOLUTION LANCER
Camber
−1°00' −0°40'
Toe-in mm (in) 3 (0.12) 3 (0.12)
ITEM LANCER EVOLUTION LANCER
Wire diameter mm (in) 12 (0.5) 10 (0.4)
Average diameter mm (in) 88 (3.5) 90 (3.5)
Free length mm (in) 287 (11.3) 370 (14.6)
