Mitsubishi LANCER EVOLUTION 2003 User Manual

GENERAL DESCRIPTION
FRONT SUSPENSION
33A-3

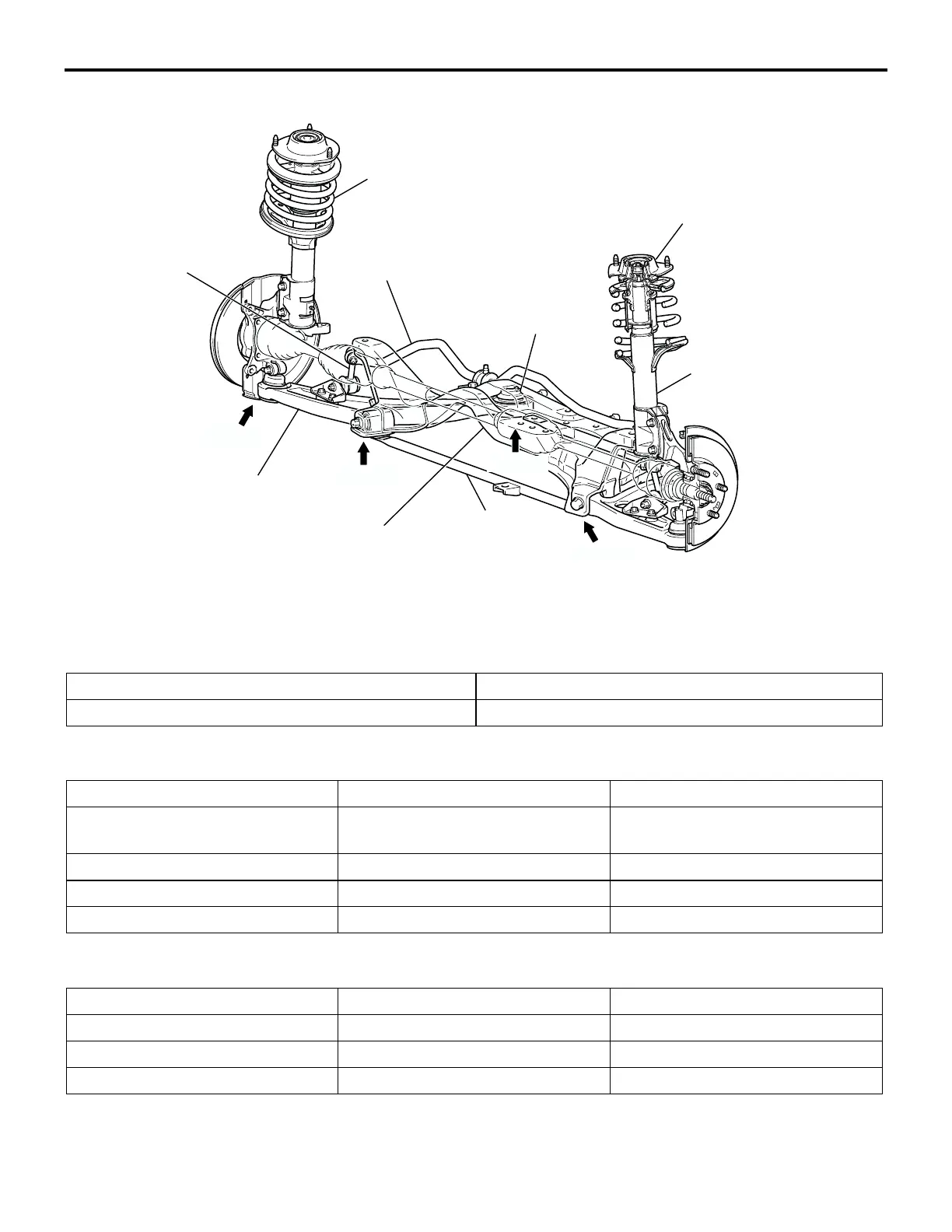

CONSTRUCTION DIAGRAM
SPECIFICATIONS
.
SUSPENSION SYSTEM
.
WHEEL ALIGNMENT
.
COIL SPRING
AC211383
AB
STABILIZER BAR
LOWER ARM ASSEMBLY
(FORGED ALUMINUM)
FRONT AXLE No.1
CROSSMEMBER
STRUT
(INVERTED STRUT)
STRUT INSULATOR
COIL SPRING
STABILIZER LINK
(PILLOW BALL JOINT)
FRONT AXLE
CROSSMEMBER BAR
LOWER ARM BUSHING
(PILLOW BALL BUSHING)
A-POINT
A-POINT
G-POINT
B-POINT
ITEM SPECIFICATION
Suspension method MacPherson strut with coil springs
ITEM LANCER EVOLUTION LANCER
Camber -1°00' <Default factory setting>
(-2°00' adjustment possible)
0°00'
Caster 3°55' 2°50'
Kingpin inclination 13°45' 12°35'
Toe-in mm (in) 0 (0) 1 (0.04)
ITEM LANCER EVOLUTION LANCER (SPORT)
Wire diameter mm (in) 14 (0.6) 14 (0.6)
Average diameter mm (in) 155 (6.1) 160 (6.3)
Free length mm (in) 286 (11.3) 363 (14.3)
