FX2N Series Programmable Controllers Outputs 6
6-7
6.2.1 In-rush currents
These currents should be kept as low as possible. The root mean square (
Ι rms)<0.2A.
ReferenceEqn1for(
Ι rms)
Ι r - In-rush current [A] Τ r - In-rush time [sec]
Ι s - Switch current [A] Τ s - Switch time [sec]
Τ f - Operation time [sec]
Impulsions de courant
Toutes les impulsions de courant doivent être réduites au minimum. Valeur effective ( Ι rms )0.2A.
Voir formule inférieure pour (
Ι rms ).
Ι r = Impulsion de courant [A] Τ r = Durée de l’impulsion de courant [s]
Ι s = Courant de commutation [A] Τ s = Durée de commutation [s]
Τ f = Temps d’activation [s]
Stromstöße
Alle Stromstöße sollten so klein wie möglich gehalten werden. Effektivwert (
Ι rms) 0.2A. Siehe
untere Formel für (
Ι rms).
Ι r = Stromstoß [A] Τ r = Zeitdauer des Stromstoßes [s]
Ι s = Schaltstrom [A] Τ s = Schaltdauer [s]
Τ f = Aktivierungszeit [s]
Impulsidicorrent
Tutti gli impulsi di corrente dovrebbero essere mantenuti quanto più possibile piccoli.
Valore effettivo (Irms) 0.2 A. V. formula in basso per (Irms).
Ι r = impulso di corrente [A] Τ r = durata dell’impulso di corrente [s]
Ι s = corrente di commutazione [A] Τ s = durata commutazione [s]
Τ f = tempo di attivazione [s]
Impulsos de corriente
Todos los impulsos de corriente deberán mantenerse a un valor lo más bajo posible.
Valor eficaz (Irms) 0.2 A. Ver abajo la fórmula para (Irms).
Ι r = Impulso de corriente [A] Τ r = Duración del impulso de corriente [s]
Ι s = Corriente de conexión [A] Τ s = Duración de conexión [s]
Τ f =Tiempodeactivación[s]

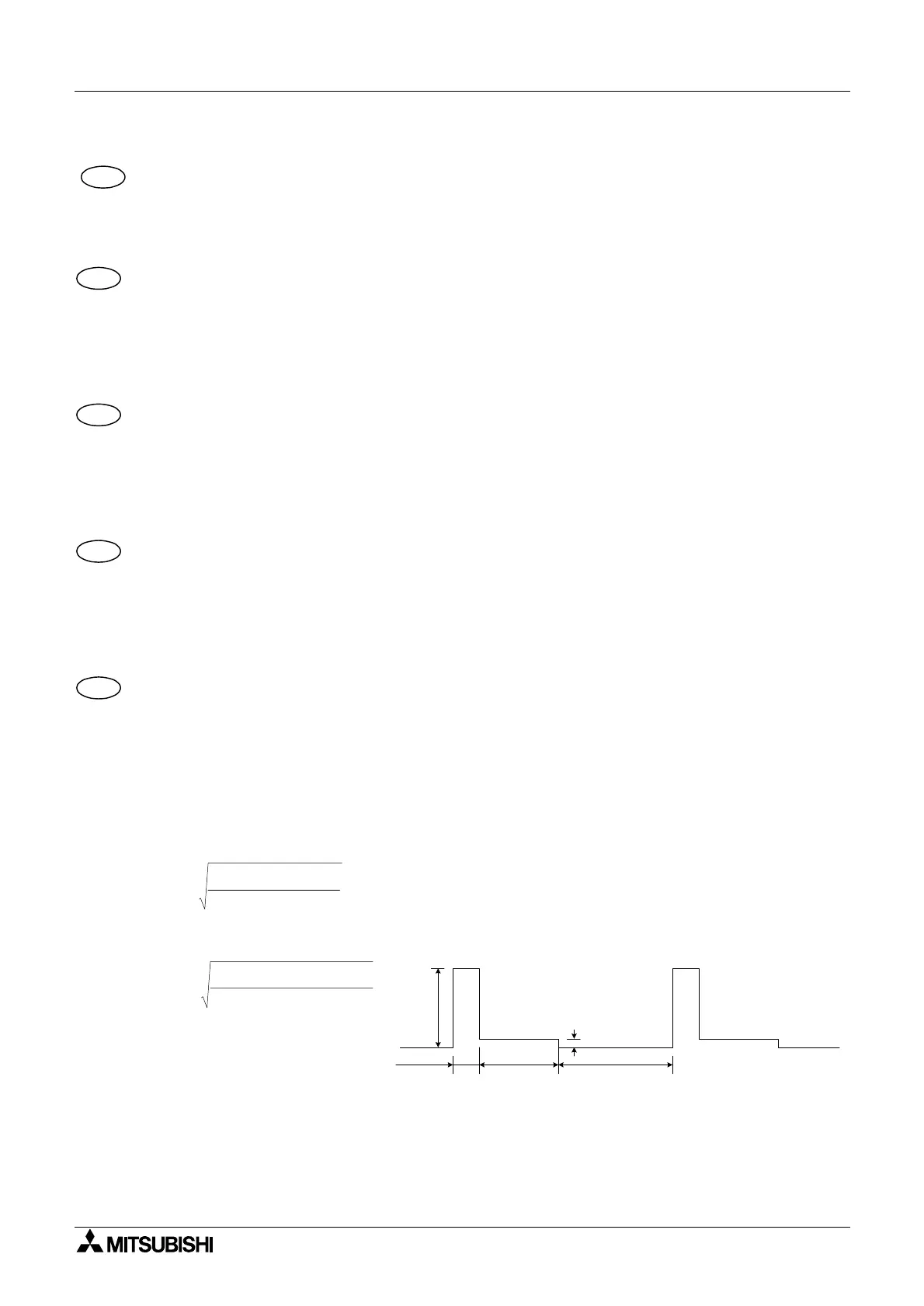

Figure 6.2: ENG
- Current graph
FRE
- Diagramme électrique
GER
- Stromdiagramm
ITL
- Diagramma della corrente
ESP
- Diagrama de corriente
ENG
FRE
GER
ITL
ESP
Ι rms =
Eqn 1
× Τ r + × Ι r
2
Τ s
Ι s
2
Τ r + Τ s Τ f +
0.2A =
Ex.
× 0.02 + × 4
2
0.7
0.4
2
++0.02 0.7 10
Ι r
Ι s
Τ r Τ s Τ f
