11. OPTIONS AND AUXILIARY EQUIPMENT
11 - 82

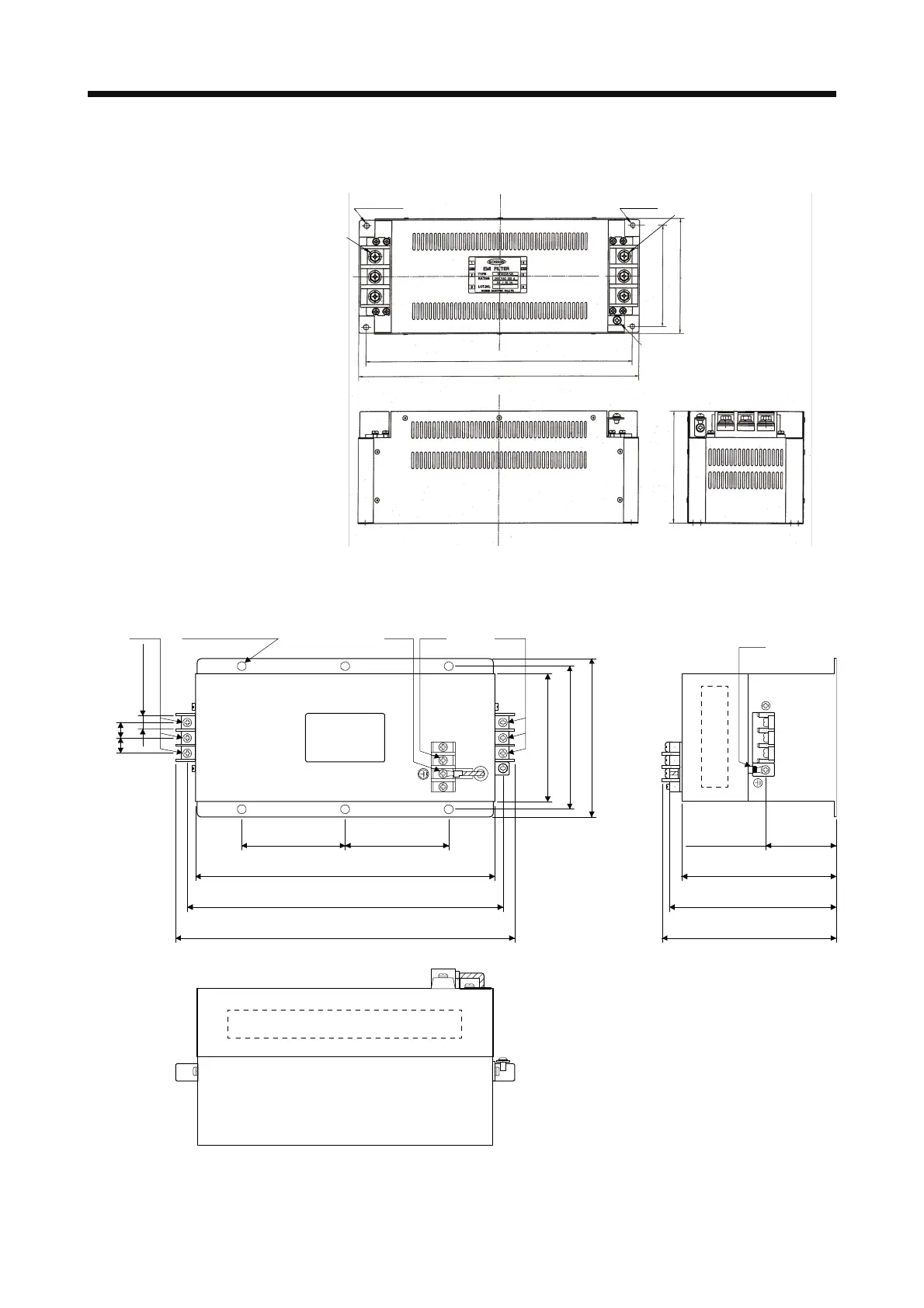

HF3100A-UN
[Unit: mm]
2-6.5 × 8
M8
145 ± 1 165 ± 3
M6
380 ± 1
400 ± 5
160 ± 3
M8
2-
φ
6.5
TF3005C-TX/TX3020C-TX/TF3030C-TX
[Unit: mm]
290 ± 2
100 ± 1 100 ± 1
308 ± 5
332 ± 5
Approx. 12.2
3-M4
16 16
6-R3.25 length: 8
M4 M4
125 ± 2
3-M4
140 ± 1 155 ± 2
IN
150 ± 2
Approx.6.75 ± 3
Approx. 160
170 ± 5
M4
