AK600847

BALANCER CHAIN <4B12>

ENGINE OVERHAUL

11B-52

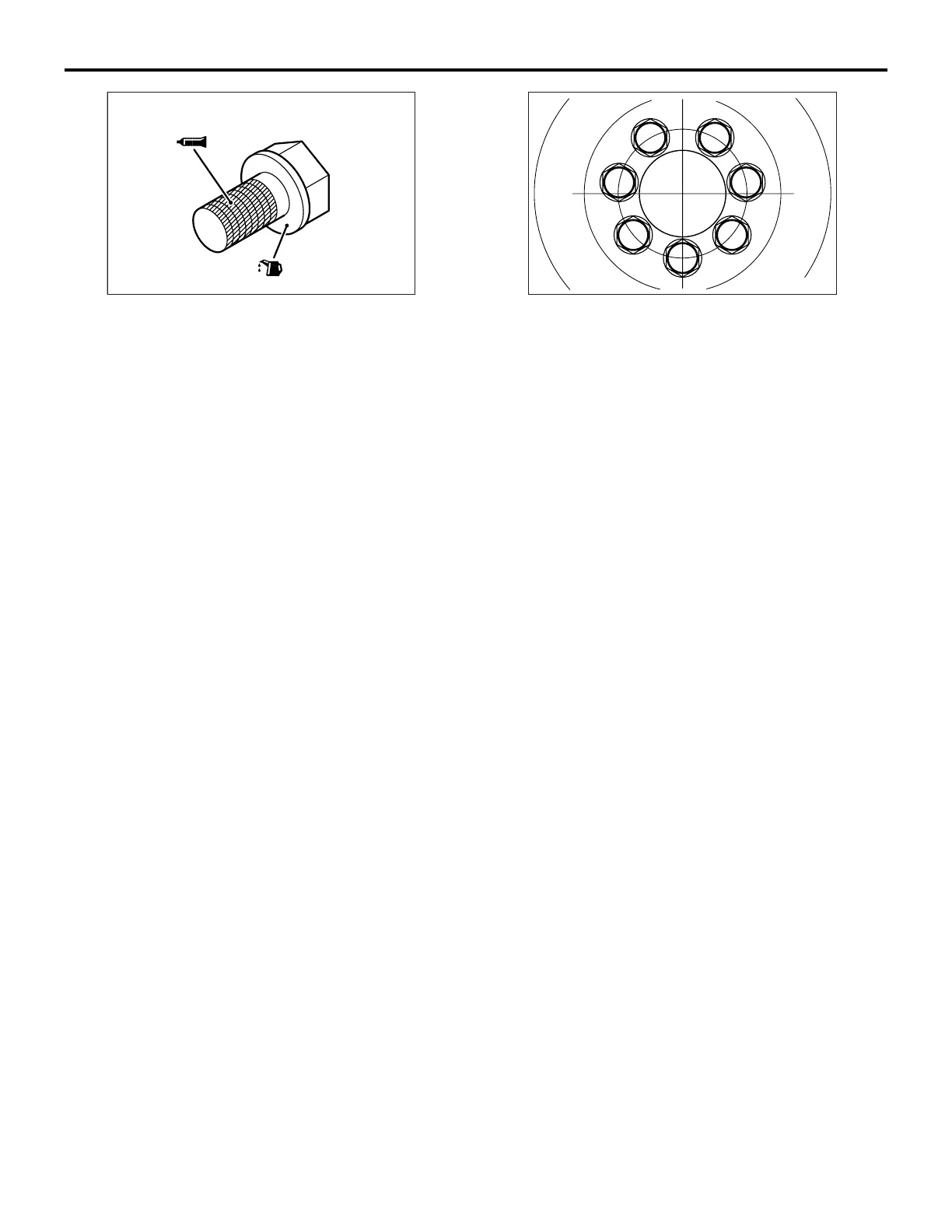

3. Apply engine oil to thread of crankshaft and bolt

seat area of drive plate.

4. Apply the sealant to the thread of drive plate bolts.

Specified sealant:

ThreeBond 1324 or equivalent

AK603576

5. Tighten drive plate bolts to temporary torque of 40

⋅m in the order shown to illustration.

6. Tighten drive plate bolts to specified torque of 130

⋅m in the order shown in the illustration.
