Mitsubishi OUTLANDER Service Manual

CRANKSHAFT AND CYLINDER BLOCK
ENGINE OVERHAUL
11B-61

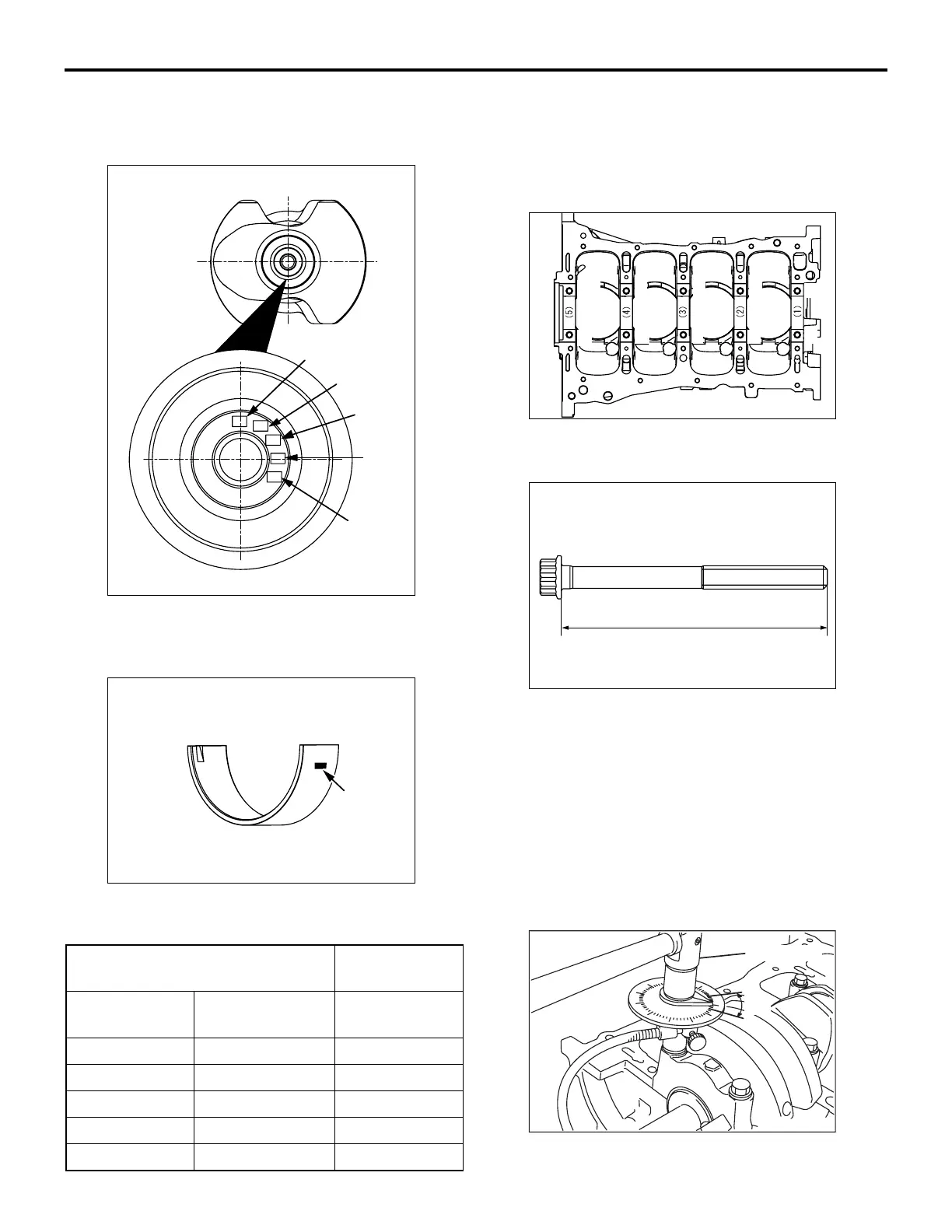

>>D<< CRANKSHAFT BEARING LOWER
INSTALLATION
AK502528
AC
No.1
No.2
No.3
No.4
No.5
Journal identification mark position
1. When replacing the crankshaft bearing lower,
select a bearing with the size corresponding to the
crankshaft journal diameter in the table below.
AK502418
AF
Identificatio
n
mark
2. The crankshaft bearing lower has an identification
mark at the illustrated position.
Crankshaft Crankshaft
bearing
Identification
mark
Journal
diameter mm
Identification
mark
0 51.985 − 51.988 0
1 51.982 − 51.985 1
2 51.979 − 51.982 2
3 51.976 − 51.979 3
4 51.973 − 51.976 4
3. Install the selected crankshaft bearing lower.
>>E<< CRANKSHAFT BEARING CAP /
CRANKSHAFT BEARING CAP BOLT
INSTALLATION
AK502395
10
9
6
5
1
2
3
4
7
8
AC
1. Install the crankshaft bearing cap with reference
to the identification mark as illustrated.
AK402401AC
Shank length
2. Make sure that the shank length of the bolt is at or
below the limit before installing the crankshaft
bearing cap bolt. If the length exceeds the limit,
replace the bolt with a new one.
Limit: 75.5 − 76.5 mm
3. Apply engine oil to the threaded portion and seat
surface of the bolt.
4. Tighten crankshaft bearing cap bolts to the torque
of 26.5
± 2.0 N⋅m according to the tightening
order.
AK502750
45˚
MB991614
AC
