Mitsubishi Pick-Up 1987 - Page 101

Chapter 11 Body
.
I Spare tire lock cylinder
2 Spare tire
3 Spare tire carrier
4 Rear opening trim
5 Retractor cover

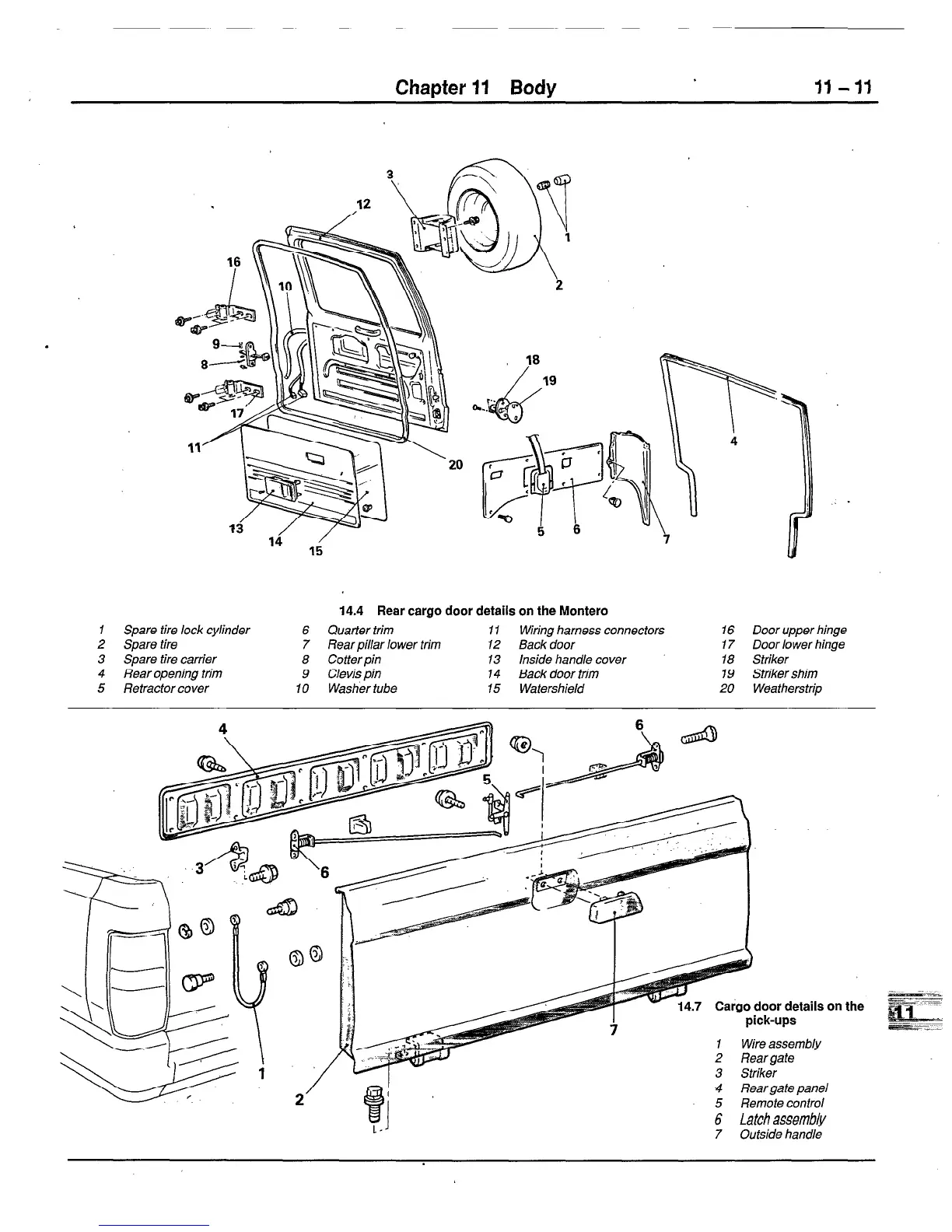

14.4 Rear cargo door details on the Montero
6 Quarter trim 11 Wiring harness connectors
7 Rear pillar lower trim
12 Back door
8 Coffer pin
13 Inside handle cover
9 Clevis pin I4 Back door trim
10 Washer tube
15 Watershield
16 Door upper hinge
17
Door lower hinge
18 Striker
19 Striker shim
20 Weatherstrip
14.7 Caigo door details on the
7
pick-ups
1 Wire assembly
2 Rear gate
/’ yJ
-
3 Striker
8’
4 Rear gate panel
J
5 Remote control
EJ
L-
6 Latch assembly
7 Outside handle
