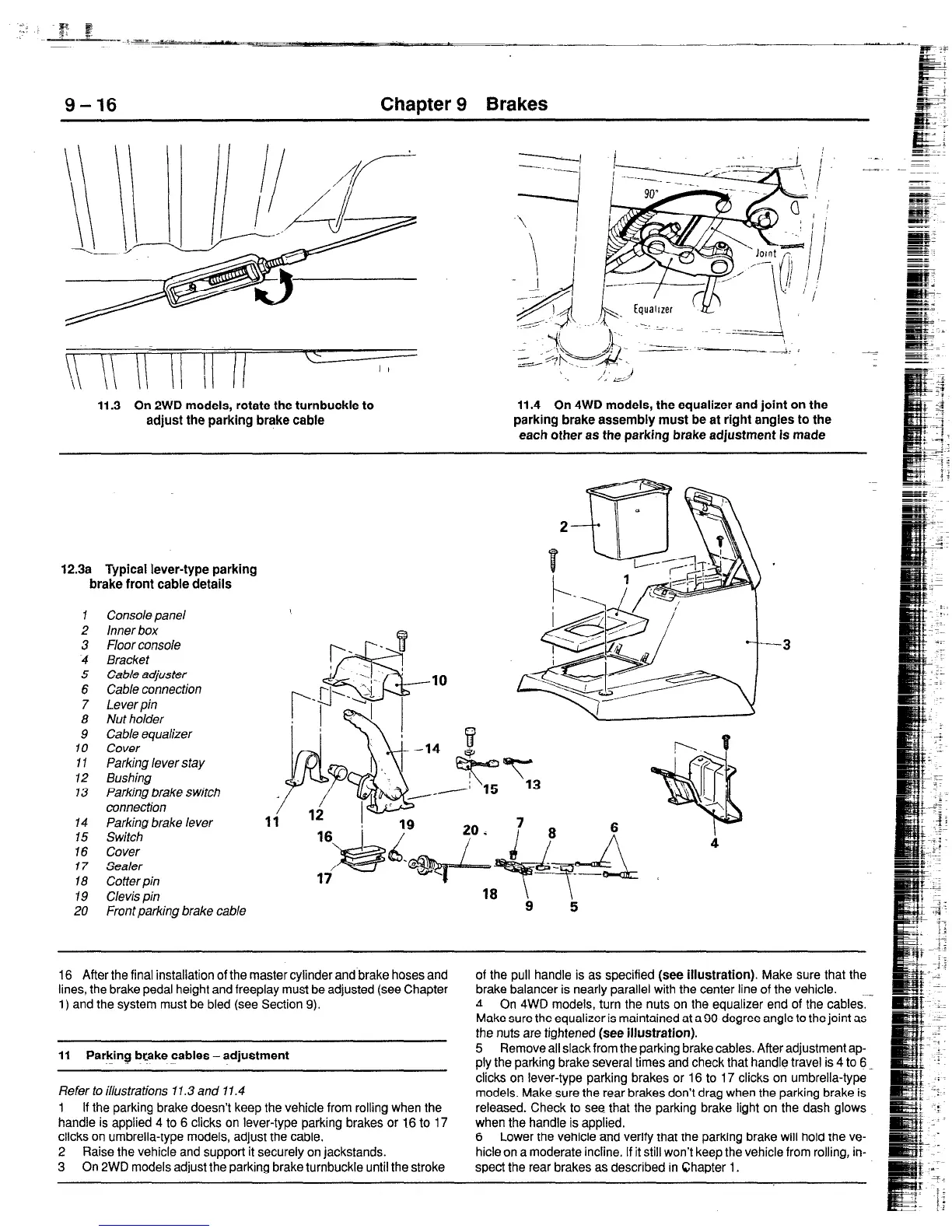

Chapter 9 Brakes
11.3 On 2WD models, rotate the turnbuckle to
11.4 On 4WD models, the equalizer and joint on the
adjust the parking brake cable parking brake assembly must be at right angles to the
each other as the parking brake adjustment is made
12.3s Typical lever-type parking
brake front cable details
I
2
3
;I
5
6
7
8
9
10
11
12
13
14
75
16
17
18
19
20
Console panel
Inner box
Floor console
Bracket
Cable aquster
Cable connection
Lever pin
Nut holder
Cable equalizer
Cover
Parking lever stay
Bushing
Parking brake switch
connection
Parking brake lever
Switch
Cover
Sealer
Cotter pin
Clevis pin
Front parking brake cable
16 After the final installation of the master cylinder and brake hoses and
lines, the brake pedal height and freeplay must be adjusted (see Chapter
1) and the system must be bled (see Section 9).
11 Parking brake cables -adjustment
Refer to illustrations 11.3 and 71.4
1 If the parking brake doesn’t keep the vehicle from rolling when the
handle is applied 4 to 6 clicks on lever-type parking brakes or 16 to 17
clicks on umbrella-type models, adjust the cable.
2 Raise the vehicle and support it securely on jackstands.
3 On 2WD models adjust the parking brake turnbuckle until the stroke
18
\ \
9
5
of the pull handle is as specified
(see illustration).
Make sure that the
brake balancer is nearly parallel with the center line of the vehicle.
4 On 4WD models, turn the nuts on the equalizer end of the cables.
Make sure the equalizer is maintained at a go-degree angle to the joint as
the nuts are tightened
(see illustration).
5 Remove all slack from the parking brake cables. After adjustment ap-
ply the parking brake several times and check that handle travel is 4 to 6
clicks on lever-type parking brakes or 16 to 17 clicks on umbrella-type
models. Make sure the rear brakes don’t drag when the parking brake is
released. Check to see that the parking brake light on the dash glows
when the handle is applied.
6 Lower the vehicle and verify that the parking brake will hold the ve-
hicle on a moderate incline. If it still won’t keep the vehicle from rolling, in-
spect the rear brakes as described in Chapter 1.
