Chapter 9 Brakes

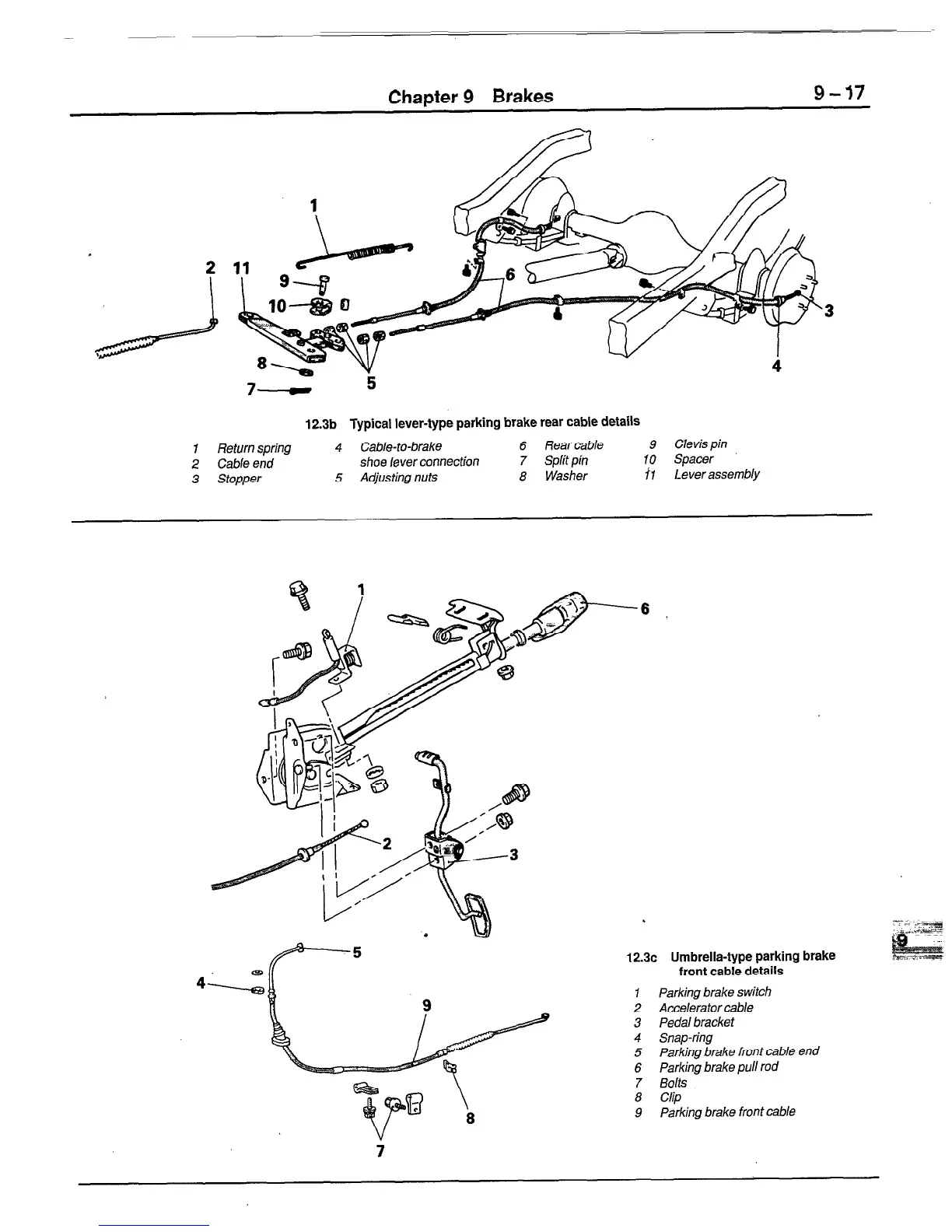

12.3b Typical lever-type parking brake rear cable details
1 Return spring
4 Cable-to-brake
6 Rear cable
9 Clevis pin
2 Cable end
shoe /ever connection 7 Split pin
10 Spacer
3 Stopper
5 Aausting nuts
8 Washer
il Lever assembly
12.3~ Umbrella-type parking brake
front cable details
1
Parking brake switch
2 Accelerator cable
3 Pedal bracket
4 Snap-ring
5 Parking brake front cable end
6 Parking brake pull rod
7 Bolts
8 Clip
9 Parking brake front cable
