9-18
Chapter 9 Brakes

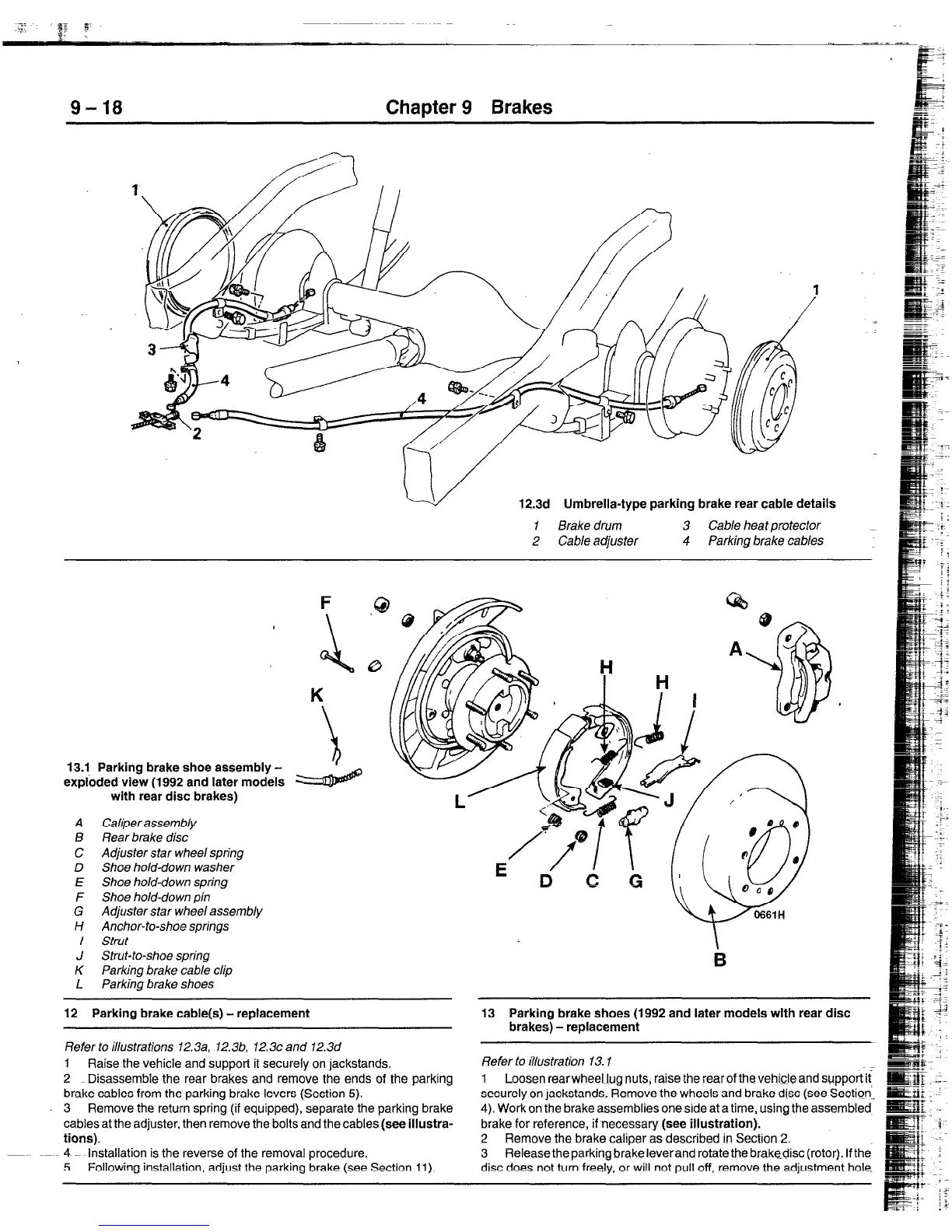

12.3cl 12.3cl Umbrella-type parking brake rear cable details Umbrella-type parking brake rear cable details
1 Brake drum 3 Cable heat protector
2 Cable adjuster 4 Parking brake cables
1 Brake drum
2 Cable adjuster
3 Cable heat protector
4 Parking brake cables
13.1~ Parking brake shoe assembly -
exploded view (1992 and later models
with rear disc brakes)
A Caliper assembly
B Rear brake disc
C Adjuster star wheel spring
D Shoe hold-down washer
E Shoe hold-down spring
F Shoe hold-down pin
G Adjuster star wheel assembly
H Anchor-to-shoe springs
I Strut
J Strut-to-shoe spring
K Parking brake cable clip
L Parking brake shoes
12 Parking brake cable(s) - replacement
Refer to illustrations 12.3a, 12.3b, 12.3~ and 12.3d
1
Raise the vehicle and support it securely on jackstands.
2 Disassemble the rear brakes and remove the ends of the parking
brake cables from the parking brake levers (Section 5).
3 Remove the return spring (if equipped), separate the parking brake
cables at the adjuster, then remove the bolts and the cables (see illustra-
tions).
~~~ 4 -~~ Installation is the reverse of the removal procedure.
5 Following installation,
adjust
the parking brake (see Section 11).
13 Parking brake shoes (1992 and later models wlth rear disc
brakes) - replacement
Refer to ii&s tra tion 13. I
1 Loosen rearwheeljug nuts, raise the rear of thevehikcleand support ii
securely on jackstands. Remove the wheels and brake disc (see Section-
4). Work on the brake assemblies one side at a time, using the
assembled
brake for reference, if necessary (see illustration).
2 Remove the brake caliper as described in Section 2.
3 Release the parking brake lever and rotate the brakedisc (rotor). If the
disc does not turn freely, or will not pull off, remove the adjustment hole.
