Chapter 4 Fuel and exhaust systems
Standard body

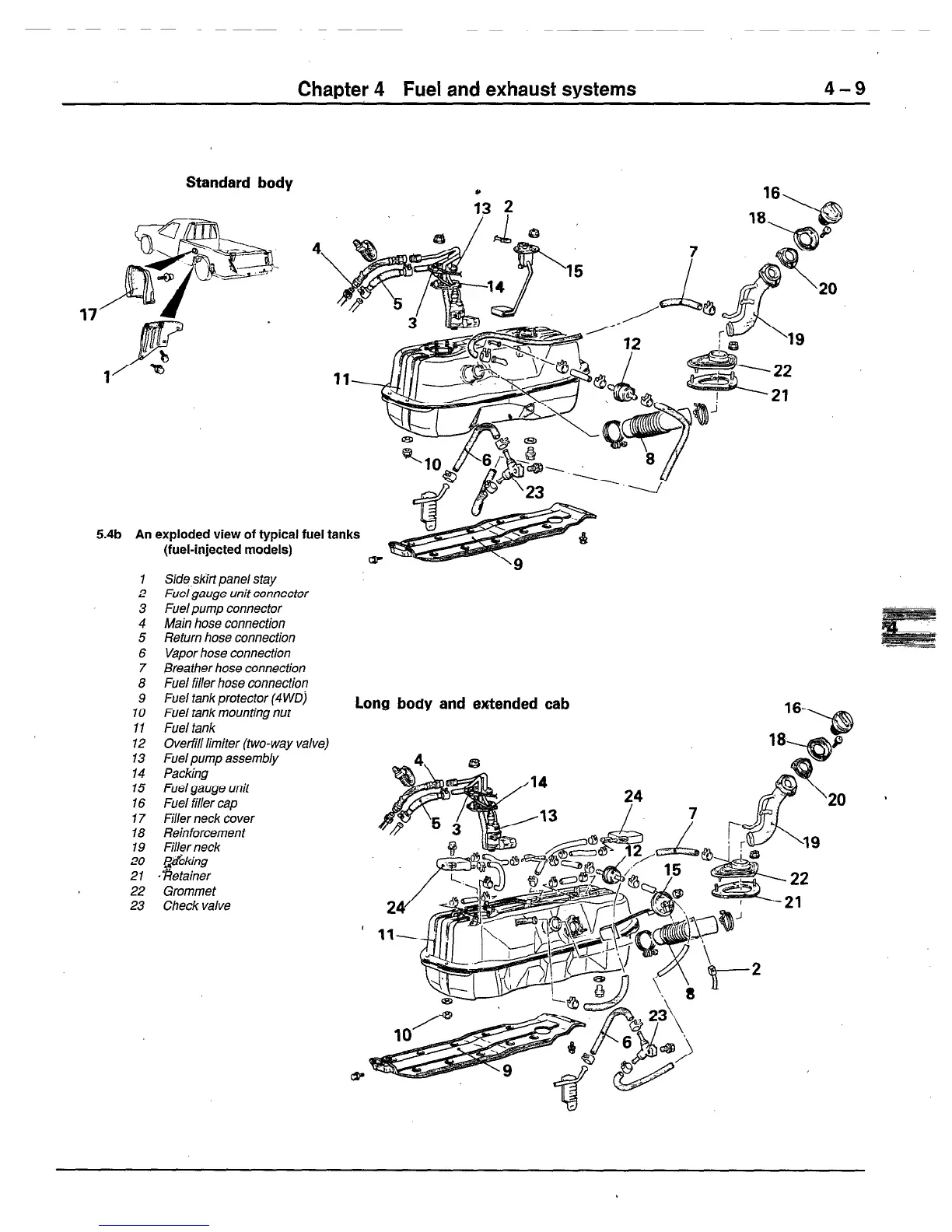

5.4b An exploded view of typical
(iuel-injected mod&s)
1 Side skirt panel stay
2 Fuel gauge unit connector
3 Fuelpump connector
4 Main hose connection
5
Return hose connection
6 Vapor hose connection
7 Breather hose connection
8 Fuel filler hose connection
9 Fuel tank protector (4
WDj
10 Fuel tank mounting nut
11 Fuel tank
12
Overfill limiter (two-way valve)
13 Fuel pump assembly
14 Packing
15 Fuel gauge unit
16 Fuel filler cap
17
Filler
neck cover
18 Reinforcement
19 Filler neck
20 PAeking
21 ei%etainer
22 Grommet
23 Check valve
br
Long body and extended cab
