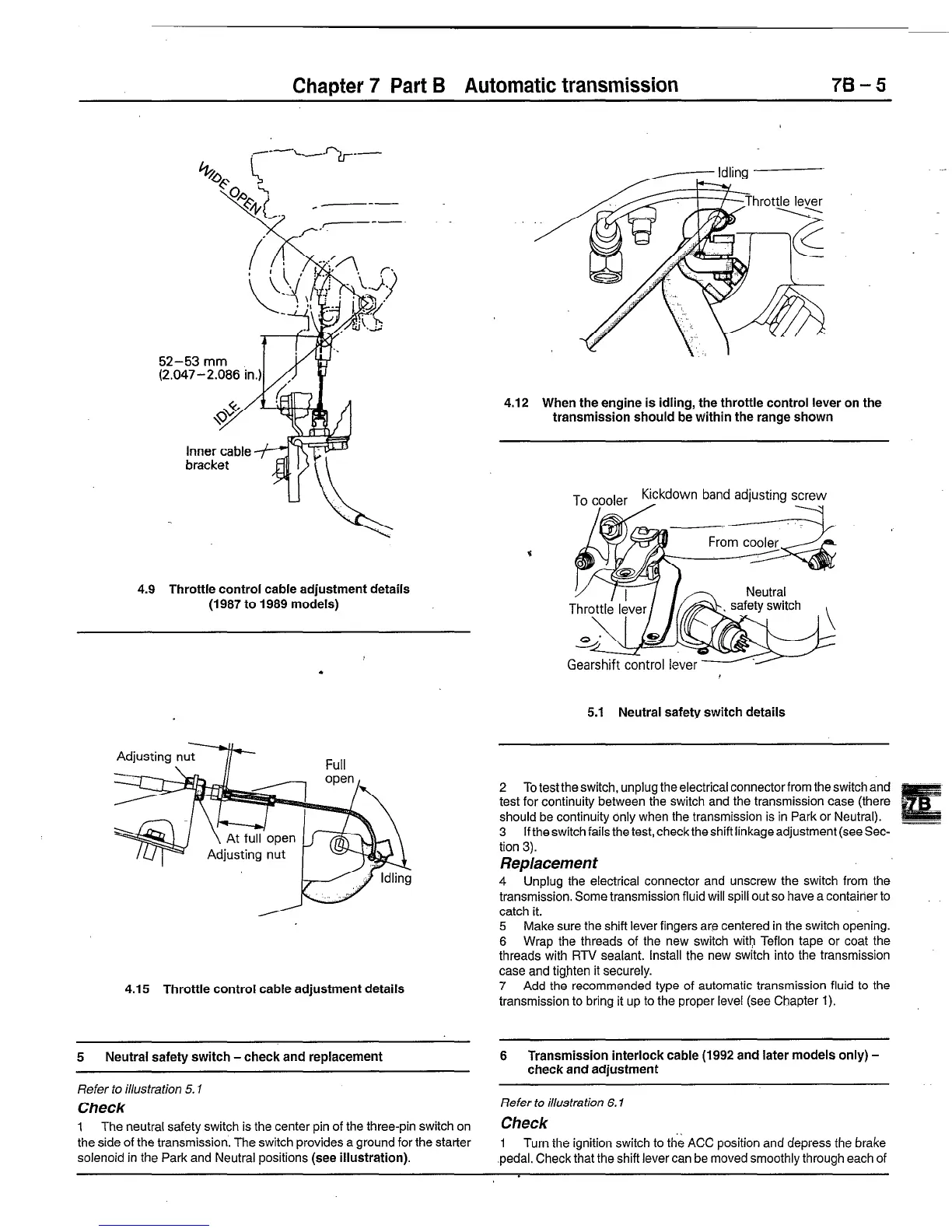

Chapter 7 Part B Automatic transmission
52-53 mm
(2.047-2.086 in.)
4.12 When the engine is idling, the throttle control lever on the
transmission should be within the range shown
4.9 Throttle control cable adjustment details
(1987 to 1989 models)
4.15 Throttle control cable adjustment details
5 Neutral safety switch -check and replacement
Refer to illustration 5.1
Check
1 The neutral safety switch is the center pin of the three-pin switch on
the side of the transmission. The switch provides a ground for the starter
solenoid in the Park and Neutral positions (see illustration).
Kickdown band adjusting screw
5.1 Neutral safety switch details
2 To test the switch, unplug the electrical connector from the switch and
test for continuity between the switch and the transmission case (there
should be continuity only when the transmission is in Park or Neutral).
3 If the switch fails the test, check the shift linkage adjustment (see Sec-
tion 3).
Replacement
4 Unplug the electrical connector and unscrew the switch from the
transmission. Some transmission fluid will spill out so have a container to
catch it.
5 Make sure the shift lever fingers ar,e centered in the switch opening.
6 Wrap the threads of the new switch with Teflon tape or coat the
threads with RTV sealant. Install the new switch into the transmission
case and tighten it securely.
7 Add the recommended type of automatic transmission fluid to the
transmission to bring it up to the proper level (see Chapter 1).
8 Transmission interlock cable (1992 and later models only) -
check and adjustment
Refer to illustration 6.1
Check
1 Turn the ignition switch to the ACC position and depress the brake
pedal. Check that the shift lever can be moved smoothly through each of
