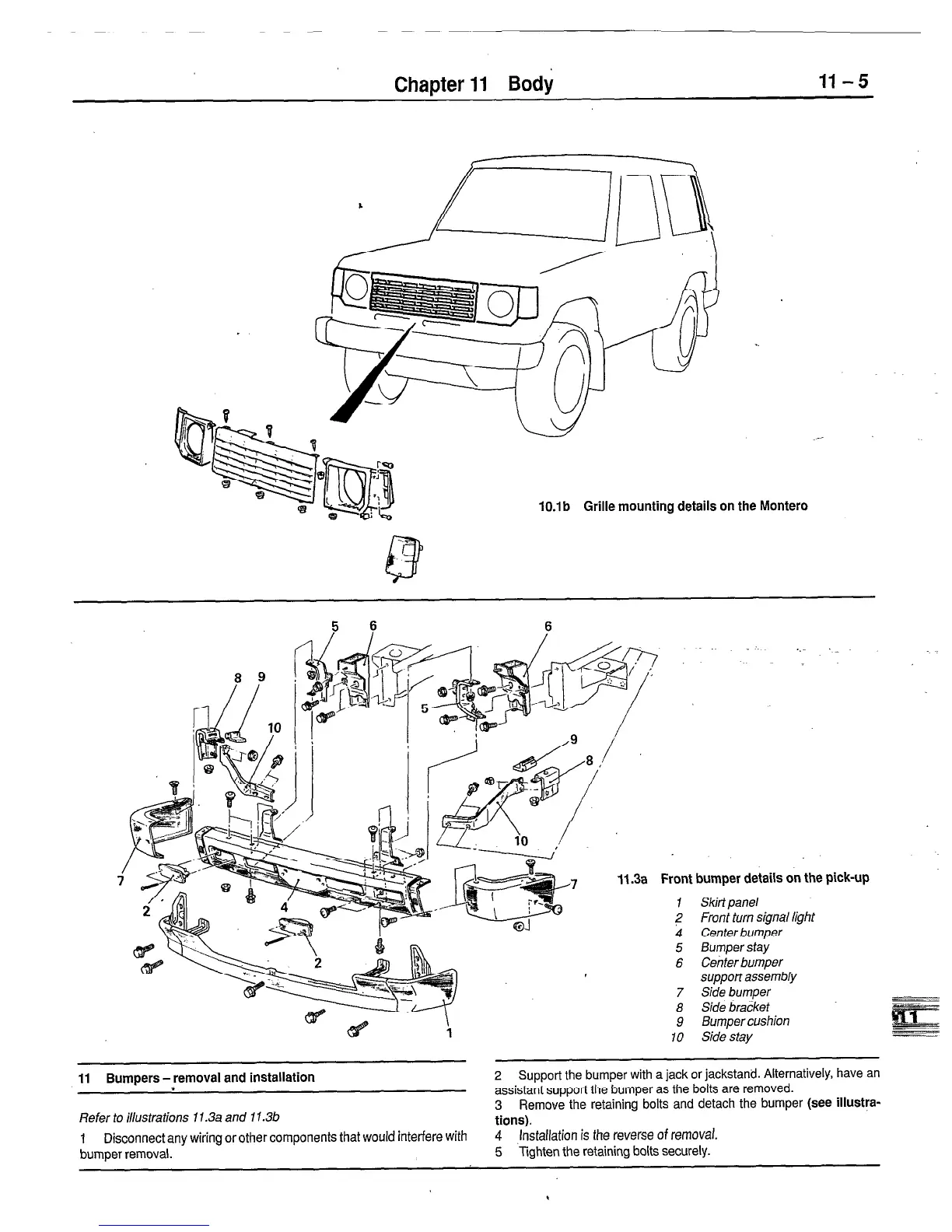

Chapter 11 Body
11-5
10.1 b Grille mounting details on the Montero
11.3a Front bumper details on the pick-up
7
6
Q
10
Skirt panel
Front turn signal light
Center bumper
Bumper stay
Center bumper
support assembly
Side bumper
Side braEket
Bumper cushion
Side stay
11 Bumpers - removal and installation
*
Refer to illustrations 11.3a and 11.3b
1 Disconnect any wiring or other components that would interfere with
bumper removal.
2 Support the bumper with a jack or jackstand. Alternatively, have an
assistant support
the
bumper as the
bolts are removed.
3 Remove the retaining bolts and detach the bumper
(see illustra-
tions).
4 Installation is the reverse of removal.
5 Tighten the retaining
bolts
securely.
