Mitsubishi PLA-A12BA - Outdoor Unit Refrigerant Flow

42
PUZ-A24NHA3(-BS) PUZ-A30NHA3(-BS) PUZ-A36NHA3(-BS)

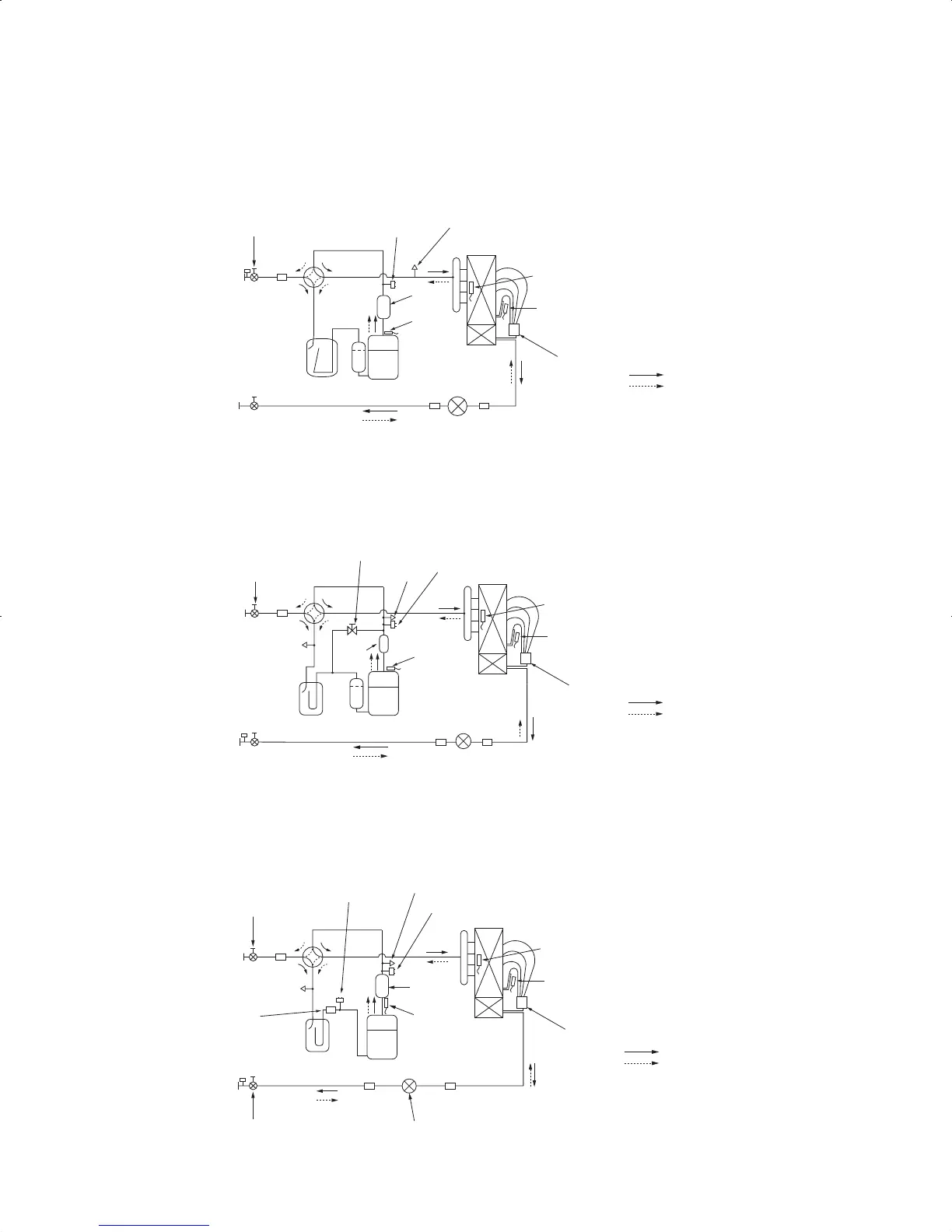

Outdoor heat exchanger
Thermistor
(TH3)
Thermistor
(TH6)
Distributor
Service
port
(check)
Accumulator
Compressor
Refrigerant GAS pipe
15.88A({5/8)
Refrigerant LIQUID pipe
9.52A({3/8)
Stop valve
(with service port)
4-way valve
Service
port
(check)
High pressure
protect switch
Refrigerant flow in cooling
Refrigerant flow in heating
Linear expansion valve
Muffler
Ball valve
Bypass valve
(#50)
Strainer
(#100)
Strainer
(#100)
Strainer
Thermistor
(TH32)
Accumulator
Stop valve
(with service port)
Compressor
Refrigerant GAS pipe
12.7A({1/2)
Refrigerant LIQUID pipe
6.35A({1/4)
Stop valve
4-way valve
Service
port(check)
High pressure
protect switch
Outdoor heat exchanger
Thermistor
(TH3)
Thermistor
(TH6)
Distributor
Muffler
Thermistor
(TH32)
Linear expansion valve
Refrigerant flow in cooling
Refrigerant flow in heating
(#50)
Strainer
(#100)
Strainer
(#100)
Strainer
<4-way valve solenoid coil>
Heating : ON
Cooling : OFF
PUZ-A42NHA3(-BS)
Service
port
(check)
Accumulator
Compressor
Refrigerant GAS pipe
15.88A({5/8)
Refrigerant LIQUID pipe
9.52A({3/8)
4-way
valve
Service port
(check)
High pressure protect switch
Linear expansion valve
Muffler
Thermistor
(TH4)
Refrigerant flow in cooling
Refrigerant flow in heating
Ball valve
(#50)
Strainer
Strainer
(#100)
Strainer
(#100)
Strainer
(#100)
Low pressure protect
switch
Stop valve
(with service port)
Outdoor heat exchanger
Thermistor
(TH3)
Thermistor
(TH6)
Distributor
6-2. OUTDOOR UNIT Unit: mm (inch)
PUZ-A18NHA3(-BS)
