4 SFC PROGRAM CONFIGURATION
MELSEC-Q
[Program Examples]

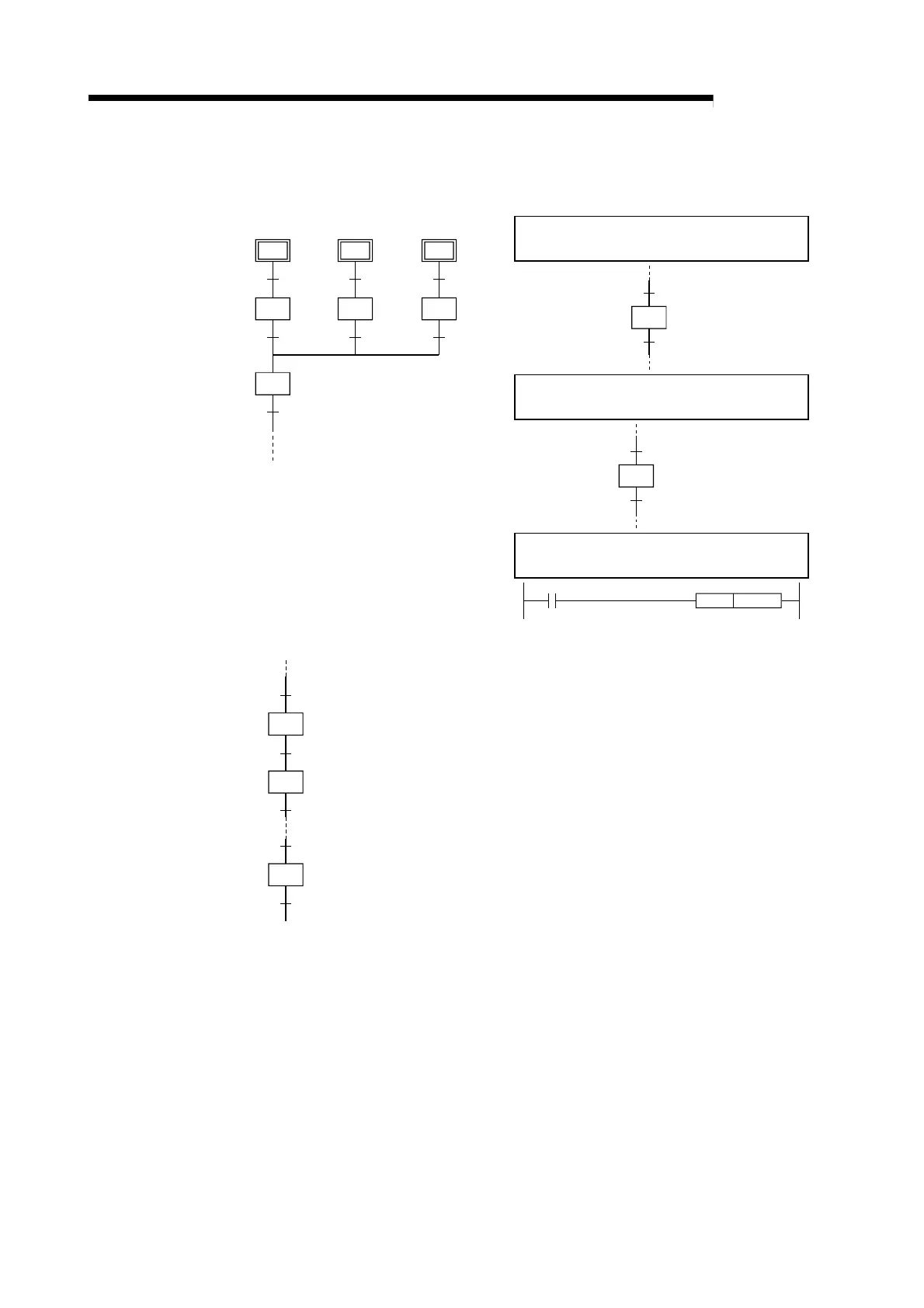

(1) When X1 switches ON, the following program will select and start step 2 of block 1 which
contains multiple initial steps.
When step is designated by operation
output of block 1
aX1
sS2
When step is designated by operation
output of other than block 3
aX1
sBL1\S2
When step is designated by sequence
program
S0 S1 S2
S4 S5
S6
S3
(Block 1)
X1
RST BL1\S2
(2) The following program deactivates held step 5 when step 10 is activated.
rS5
S5
S6
S10
SE
