Mitsubishi Q Series Programming Guide

4 - 26 4 - 26
4 SFC PROGRAM CONFIGURATION
MELSEC-Q

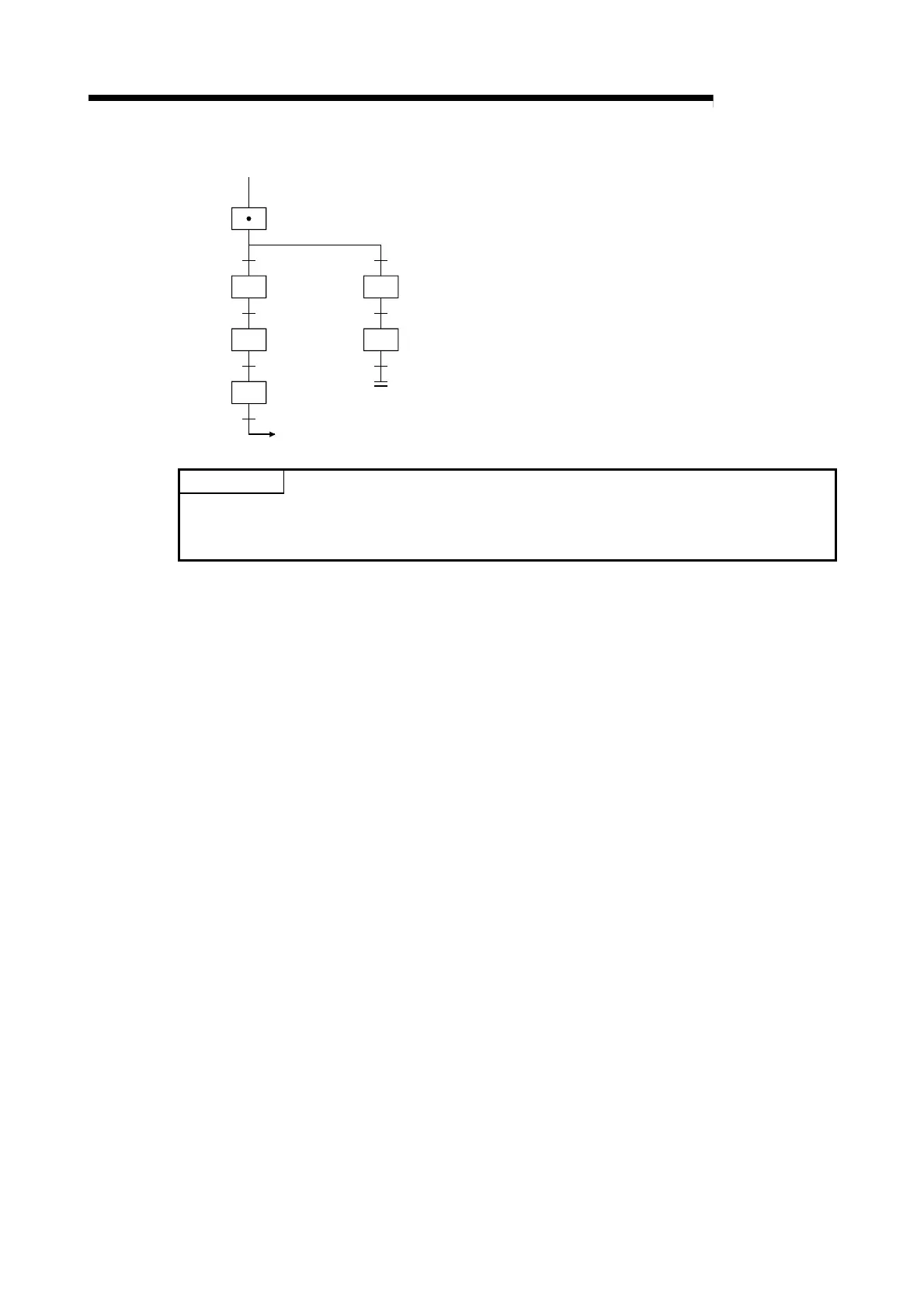

(3) In a selection transition, a coupling can be omitted by a jump transition or end transition.
Step
“n+4”
Transition
condition “c”
Transition
condition “b”
Step
“n+1”
Step
“n+2”
Step
“n+3”
Transition
condition “d”
n
Step
“n+5”
Step n
When transition condition “b” is satisfied at the
step “n” operation output, processing will
proceed in order through steps “n+1”, “n+2”
and “n+3”. When transition condition “d” is
satisfied, processing will jump to step “n”. (For
details on “jump transitions”, see Section
4.3.4.)
POINTS
In a selective transition, the number of branches and the number of couplings may be different.
However, a selection branch and parallel coupling or a parallel branch and selection coupling
cannot be combined.

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
