4 - 2
MELSEC-Q
4 SETUP AND PROCEDURES BEFORE OPERATION

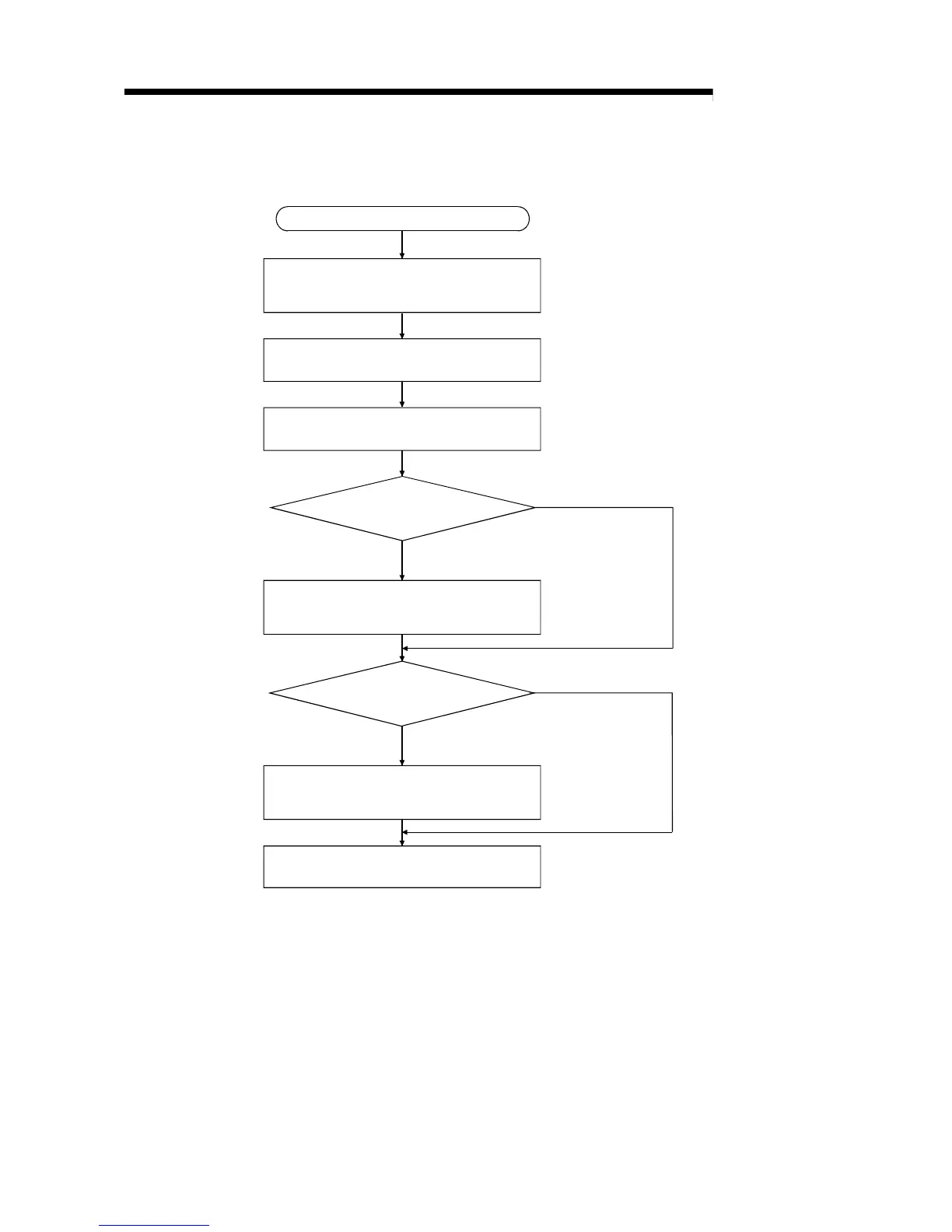

4.2 Setup and Procedures before Operation
Start
Wiring
Wire external devices to the A/D conversion module.
Intelligent function module switch settings
Perform settings using GPPW (see Section 4.5).
Use user range settings?
Offset/gain setting
If user range settings are used, perform the
offset and gain settings (see Section 4.6).
Use the utility package?
Initial setting and automatic refresh setting
The program can be simplified if the utility
package is used for setting (see Chapter 5).
Programming and debugging
Create and check the sequence program.
Use the setting range at the
time of factory shipment.
Use user range settings
NO
YES
Module mounting
Mount the A/D conversion module in the specified
slot.
To Next Page
