5 UTILITY PACKAGE (SW0D5C-QADU-E)

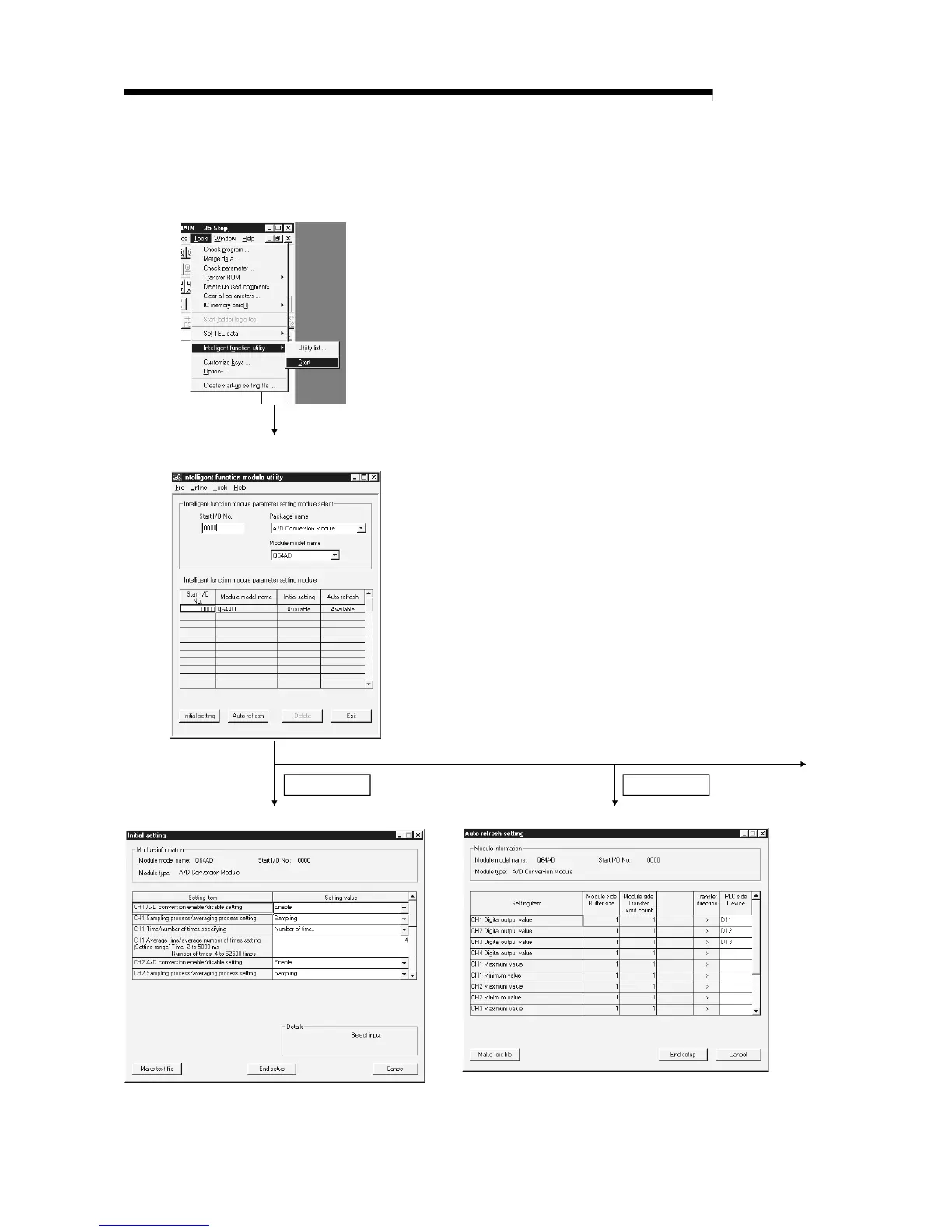

5.3.2 Operation overview
GPPW screen
[Tools] – [Intelligent function utility] – [Start]
Intilligent function module parameter
setting module select screen
Enter "Start I/O No.", then select "Package name" and "Module model name".
See Section 5.3.3
Initial setting screen
See Section 5.4
Initial setting
Auto refresh
Automatic refresh settings screen
See Section 5.5
1)
