5 - 6
MELSEC-Q
5 UTILITY PACKAGE (SW0D5C-QADU-E)
<Text file>
(a) A text file is created by performing the initial setting or automatic refresh
setting, or selecting text file creation
in the monitor/test screen. The text
files can be utilized to create user documents.
QCPU
RUN.
ERR.
USER.
BAT.
BOOT.
RS-232
USB
Q25HCPU
MODE.
A
GPPW/QADU
Disk
Project Project
AA
B
Personal computer
A : Indicates an intelligent
function module parameter.
B : Indicates the data
saved by text file creation.
1)
2)
3)

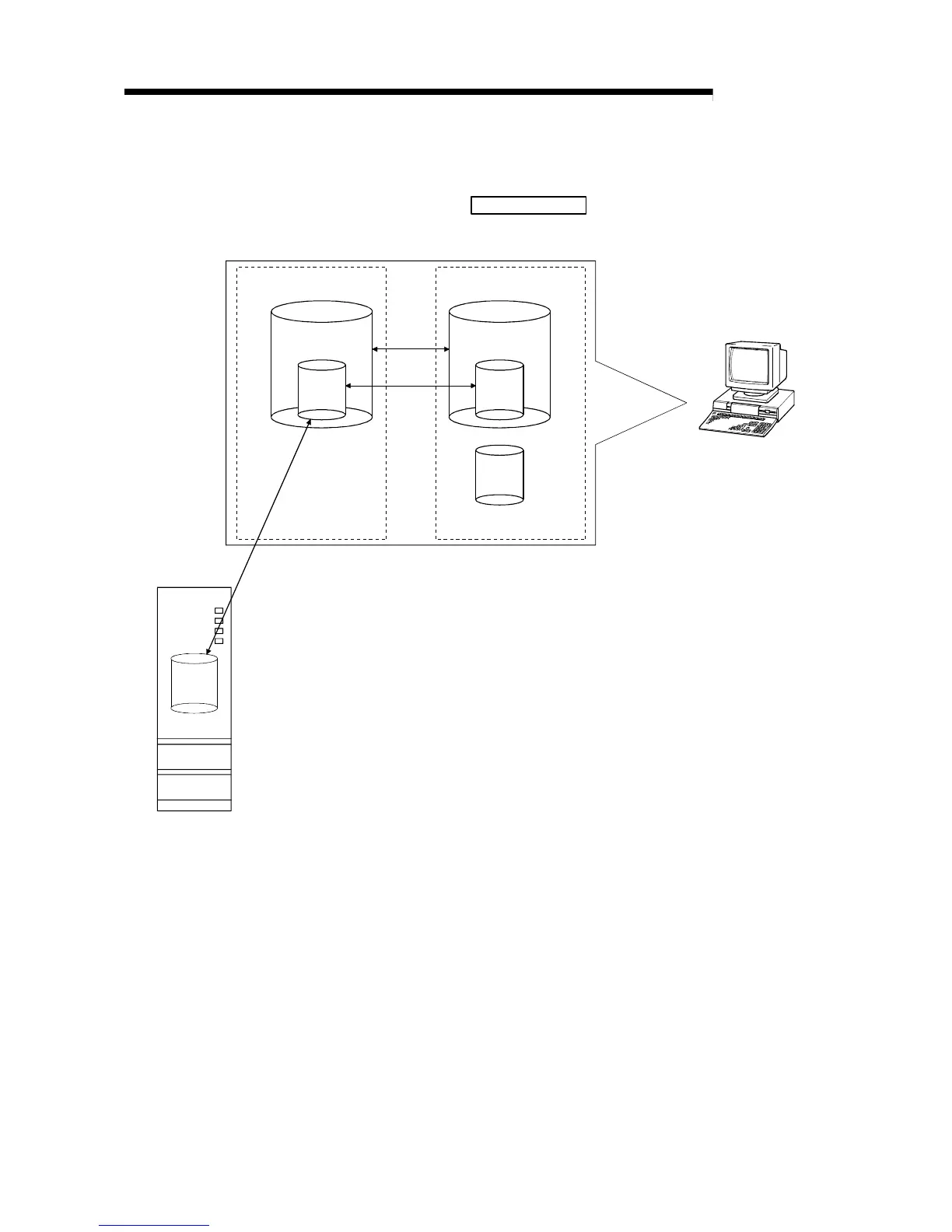

Figure 5.1 Correlation chart for data created using the utility package
To Next Page
