5 - 9
MELSEC-Q
5 UTILITY PACKAGE (SW0D5C-QADU-E)
5.3.3 Starting the intelligent function module utility
[Purpose of setting]
Start the intelligent function module utility from GPPW, and display the module
selection screen for the intelligent function module utility parameter setting. The
screens for performing initial setting, automatic refresh setting and monitor/test
module selection (selecting the module for which monitoring/testing is to be
performed) can be started from this screen.
[Startup procedure]
[Tools] [Intelligent function utility] [Start]

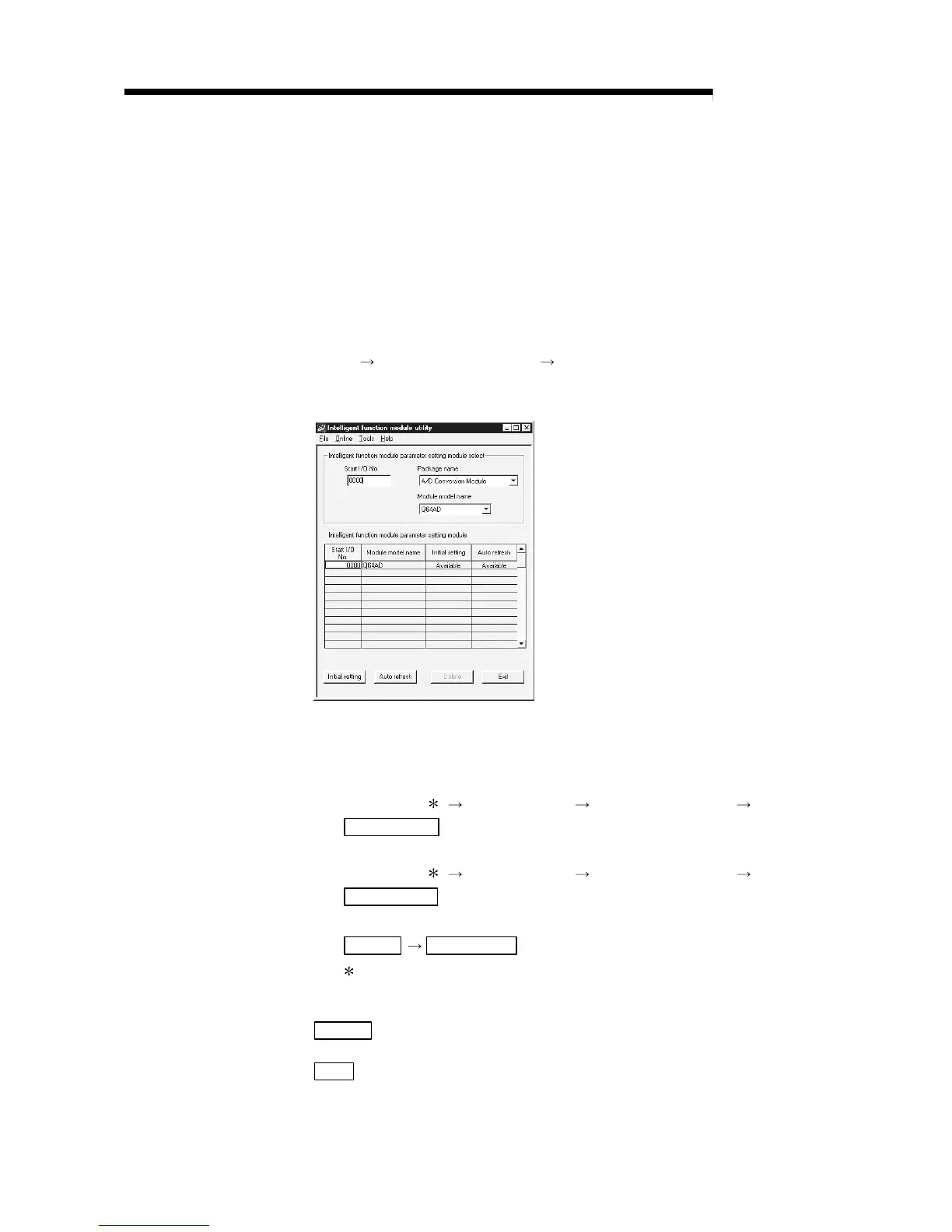

[Setting screen]
[Explanation of items]
(1) How to start each screen
(a) Starting initial setting
"Start I/O No.
" "Package name" "Module model name"
Initial setting
(b) Starting automatic refresh setting
"Start I/O No.
" "Package name" "Module model name"
Auto refresh
(c) Monitor/test module selection screen
Online
Monitor/test
Enter the start I/O numbers in hexadecimal.
(2) Explanation of screen command buttons
Delete
Deletes the initial setting and automatic refresh setting for the
selected module.
Exit
Ends the Intelligent function module utility.
