MELSEC-Q
5 UTILITY PACKAGE (SW0D5C-QADU-E)
5.6 Monitor/Test
5.6.1 Monitor/test screen
[Purpose of setting]
Buffer memory monitoring/testing, I/O signals monitoring/testing, operating condition
setting, offset/gain settings (see Section 5.6.2) are started from this screen.
[Startup procedure]
Monitor/test module selection screen "Start I/O No. " "Package name"
"Module model name"
Monitor/test
Enter the start I/O numbers in hexadecimal.
[Setting screen]

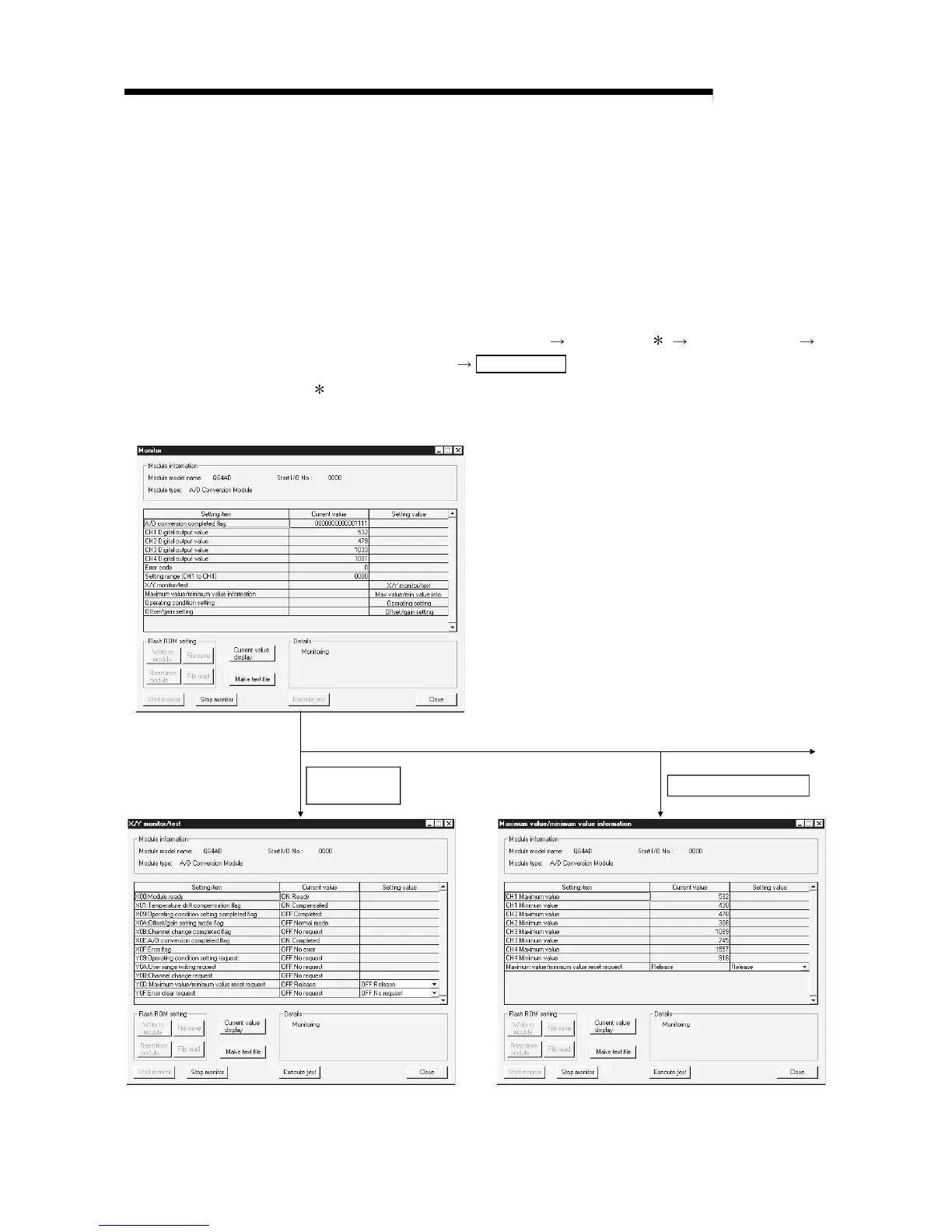

X/Y monitor/test Max value/min value info.
1)
To Next Page
