6 - 2
MELSEC-Q
6 PROGRAMMING
6.1 Programming Example Using the Utility Package
6.1.1 Operating the utility package

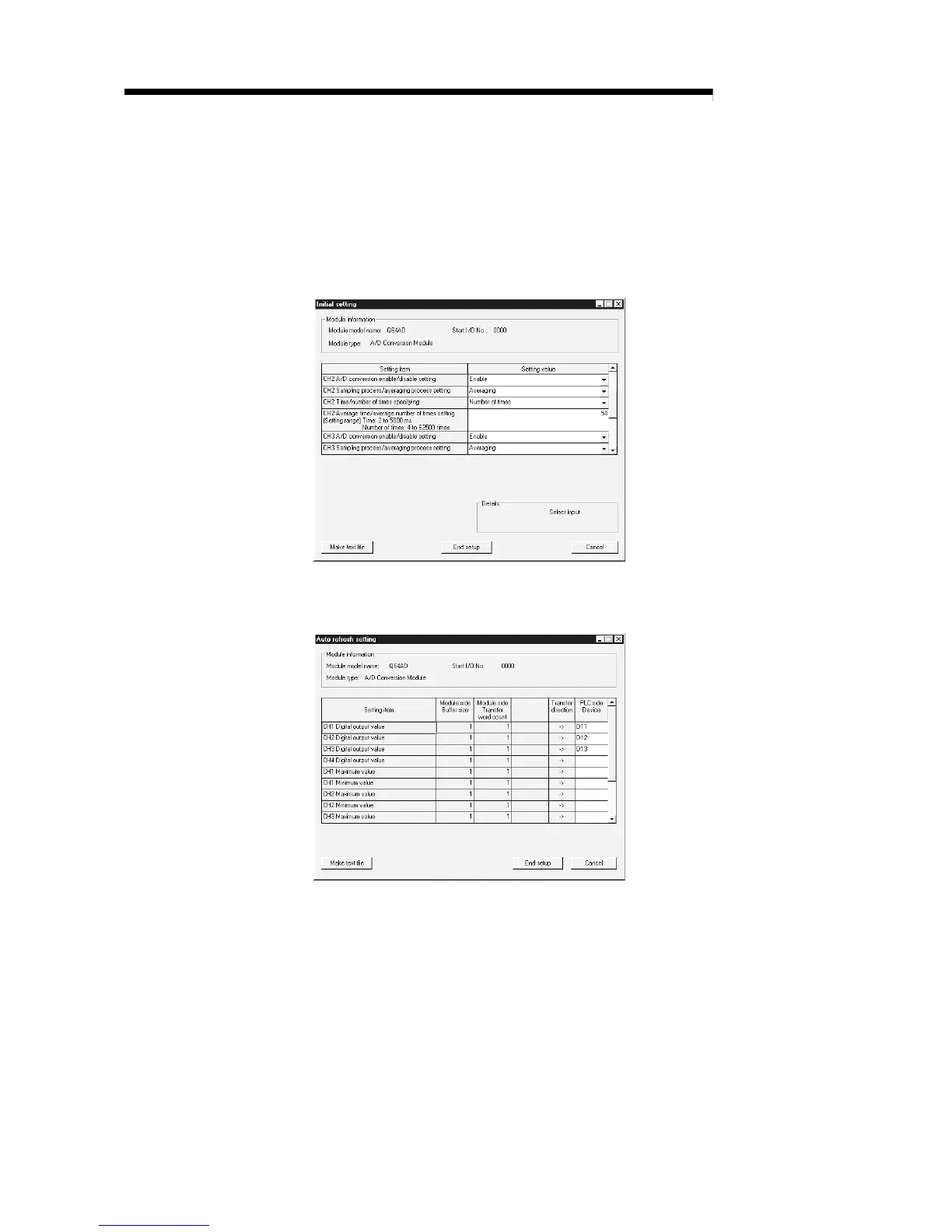

(1) Initial setting (see Section 5.4)
Set channel 1 to sampling processing, channel 2 to averaging processing for 50
times and channel 3 to averaging processing for 1000 ms.
(2) Auto refresh setting (see Section 5.5)
Set the digital output values and error codes for CH1 to 3.
(3) Writing the intelligent function module parameters (see Section
5.3.3)
Write the intelligent function module parameters to the CPU module.
This operation is performed using the parameter setting module selection screen.
