4 - 9
MELSEC-Q
4 SETUP AND PROCEDURES BEFORE OPERATION
(2) Operating procedure
Start the settings with GPPW I/O assignment setting screen.

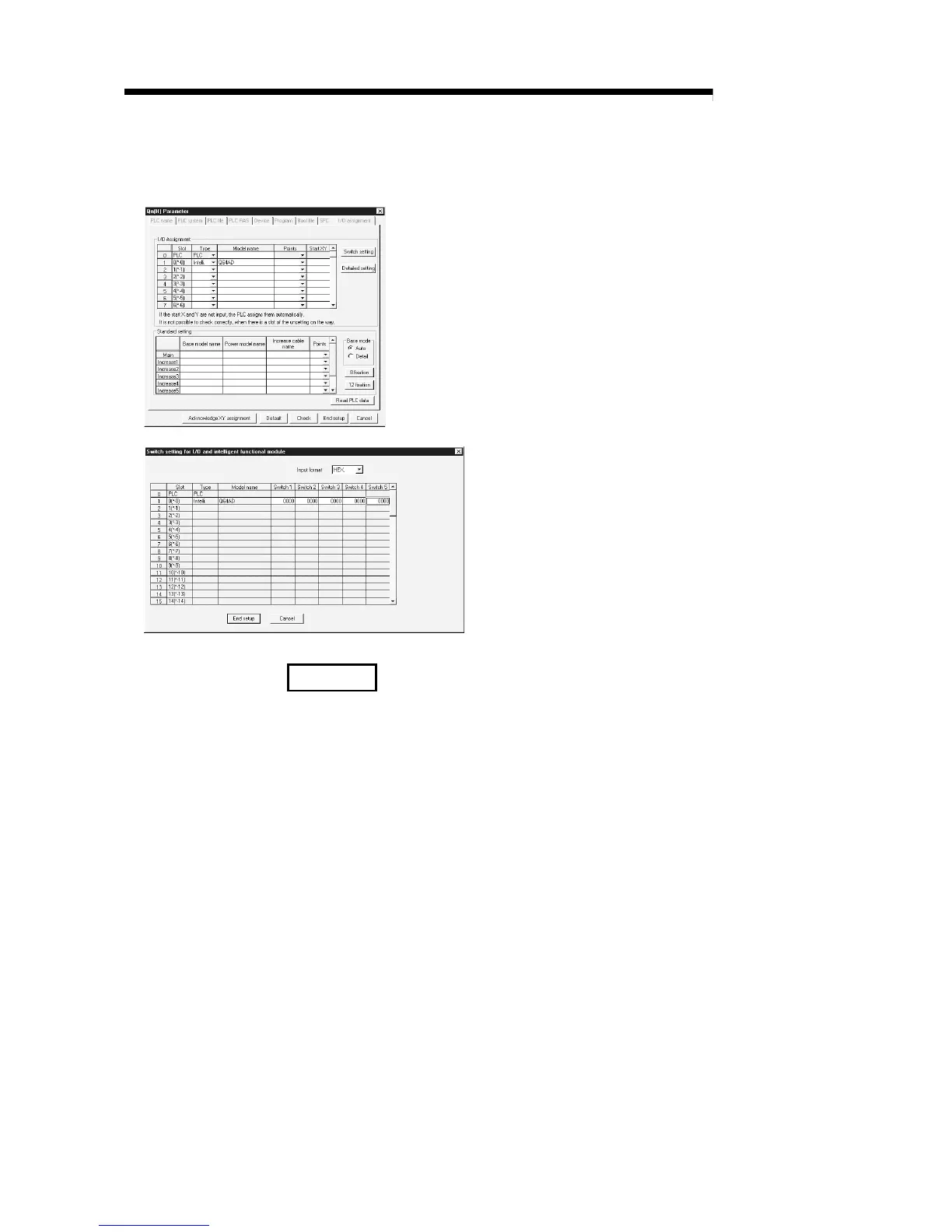

(a) I/O assignment setting screen
Set the following for the slot in which the A/D
conversion module is mounted.
The type setting is required; set other items as
needed.
Type : Select "intelli."
Model name : Enter the module model name.
Points : Select 16 points.
Start XY : Enter the start I/O number for the
A/D conversion module.
(b) Switch setting for intelligent function module
screen
Click on [Switch setting] on the I/O assignment
setting screen to display the screen shown at
left, then set switches 1 to 5.
The switches can easily be set if values are
entered in hexadecimal. Change the entry
format to hexadecimal and then enter the
values.
REMARK
The "Error time output mode" and the "H/W error time CPU operation mode" for the
intelligent function module detailed setting need not be set since they are invalid for
the A/D conversion module.
To Next Page
