5 - 33
MELSEC-Q
5 DATA USED FOR POSITIONING CONTROL

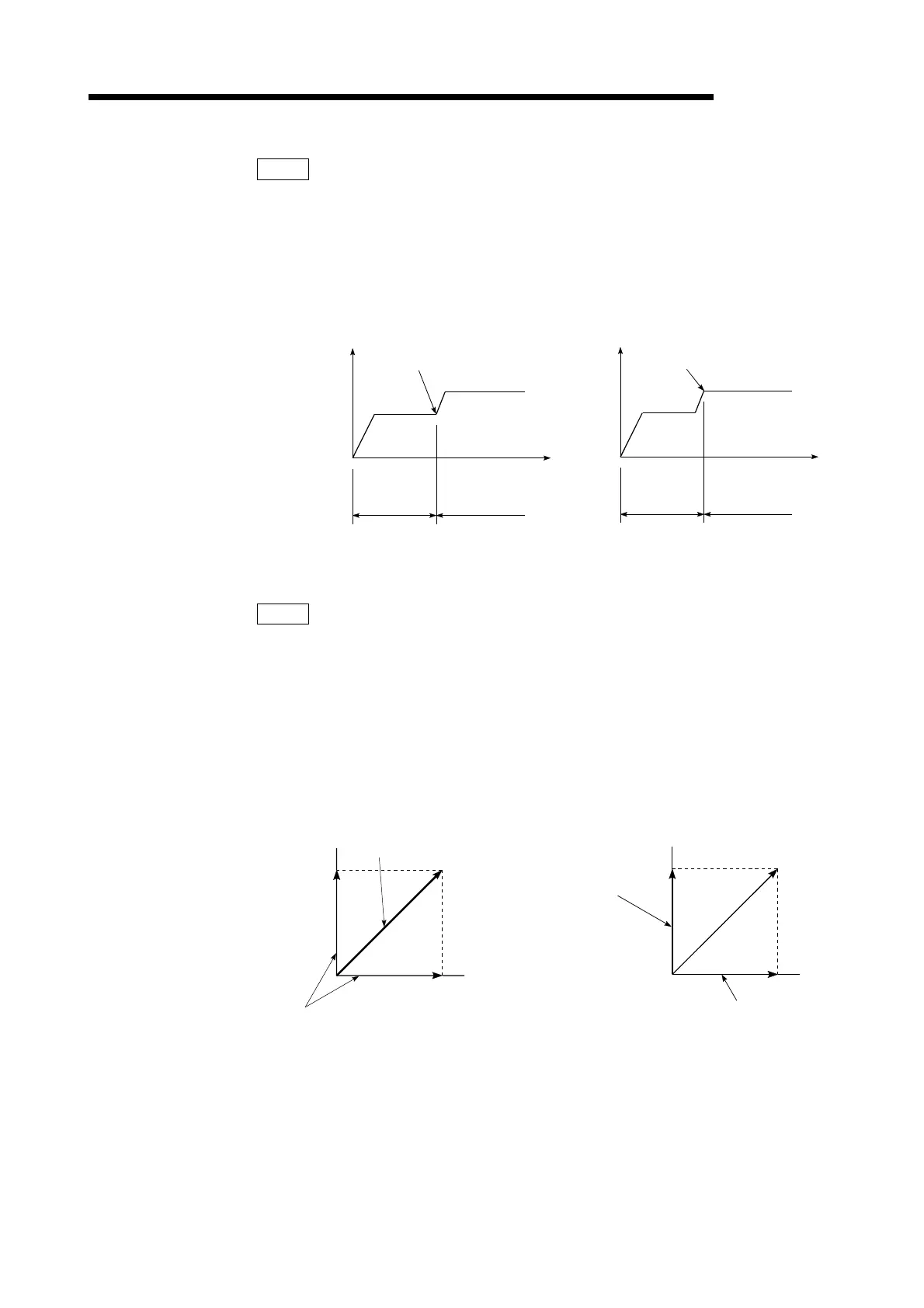

Pr.19
Speed switching mode
Set whether to switch the speed switching mode with the standard switching or
front-loading switching mode.
0 : Standard switching............... Switch the speed when executing the next
positioning data.
1 : Front-loading switching........ The speed switches at the end of the positioning
data currently being executed.
t
n
n+1
Switch the speed when
executing the next positioning data
Speed
n: Positioning
data No.
<For standard switching>
<For front-loading switching>
The next positioning data starts
positioning at the designated speed
t
nn+1
Speed
Pr.20
Interpolation speed designation method
When carrying out linear interpolation/circular interpolation, set whether to
designate the composite speed or reference axis speed.
0: Composite speed.................. The movement speed for the control target is
designated, and the speed for each axis is
calculated by the QD75.
1: Reference axis speed........... The axis speed set for the reference axis is
designated, and the speed for the other axis
carrying out interpolation is calculated by the
QD75.
X axis
Y axis
Designate composite speed
Calculated by QD75
<When composite speed is designated>
Designate speed
for reference axis
<When reference axis speed is designated>
X axis
Y axis
Calculated by QD75
Note: Always specify the reference axis speed if the 4-axis linear interpolation or 2 to 4 axis
speed control has to be performed.
If you specify the composite speed for a positioning operation that involves the 4-axis
linear interpolation or 2 to 4 axis speed control, the error code 523 "interpolation mode
error" will be output when the positioning operation is attempted.
For a positioning operation that involves the circular interpolation, specify the composite
speed always.
