2.4 How to check the function version, serial No.
The function version and the SERIAL No. of the QD75 can be checked in the following
methods.
[1] Method using the rated plate on the module side face
[2] Method using the software
[1] Method using the rated plate on the module side face
Check the alphabet of "SERIAL".
02751
SERIAL No. (The first five digits)
Function version
[2] Method using the software
Check the alphabet at the end of "Product information" displayed on System
monitor "Module's Detailed Information" of GX Developer
1
or on "OS
information" of GX Configurator-QP
2
.

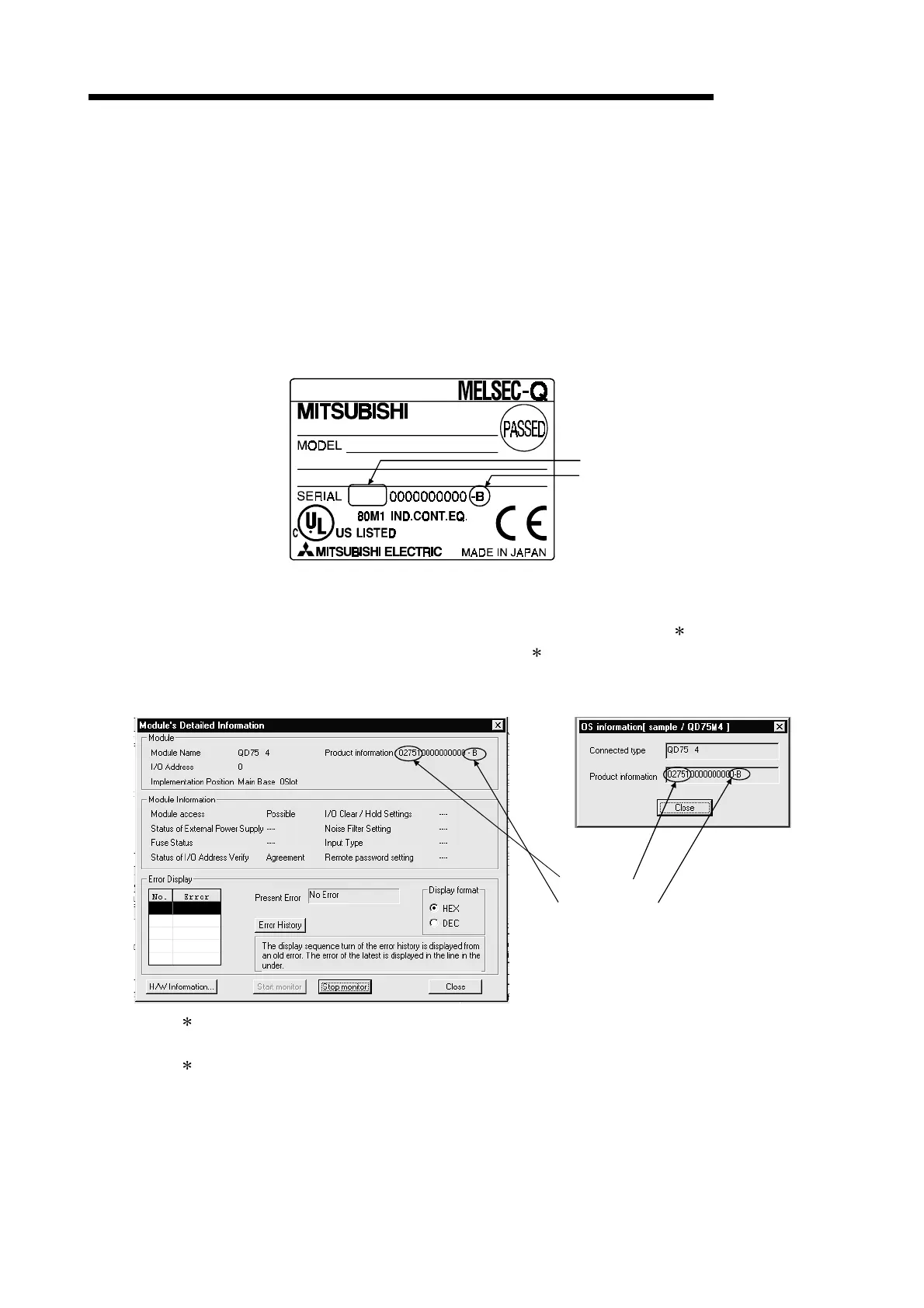

<GX Developer display screen> <GX Configurator-QP display screen>
Function version
M
M
SERIAL No.
1: This check can be made using the version of SW4D5C-GPPW-E or more. For details, refer
to GX Developer Operating Manual.
2: For details, refer to GX Configurator-QP Operating Manual.
