5 - 38
MELSEC-Q
5 DATA USED FOR POSITIONING CONTROL
Setting value, setting range
Setting value buffer memory
address
Item
Value set with peripheral device
Value set with sequence
program
Default
value
Axis 1 Axis 2 Axis 3 Axis 4
0 : Automatic trapezoid
acceleration/deceleration process
0
Pr.34
Acceleration/deceleration
process selection
1 : S-pattern
acceleration/deceleration process
1
0 52 202 352 502
Pr.35
S-pattern ratio
1 to 100 (%) 1 to 100 (%) 100 53 203 353 503
Pr.36
Sudden stop deceleration
time
1 to 8388608 (ms) 1 to 8388608 (ms) 1000
54
55
204
205
354
355
504
505
Pr.37
Stop group 1 sudden stop
selection
56 206 356 506
0 : Normal deceleration stop 0
Pr.38
Stop group 2 sudden stop
selection
57 207 357 507
Pr.39
Stop group 3 sudden stop
selection
1 : Sudden stop 1
0
58 208 358 508

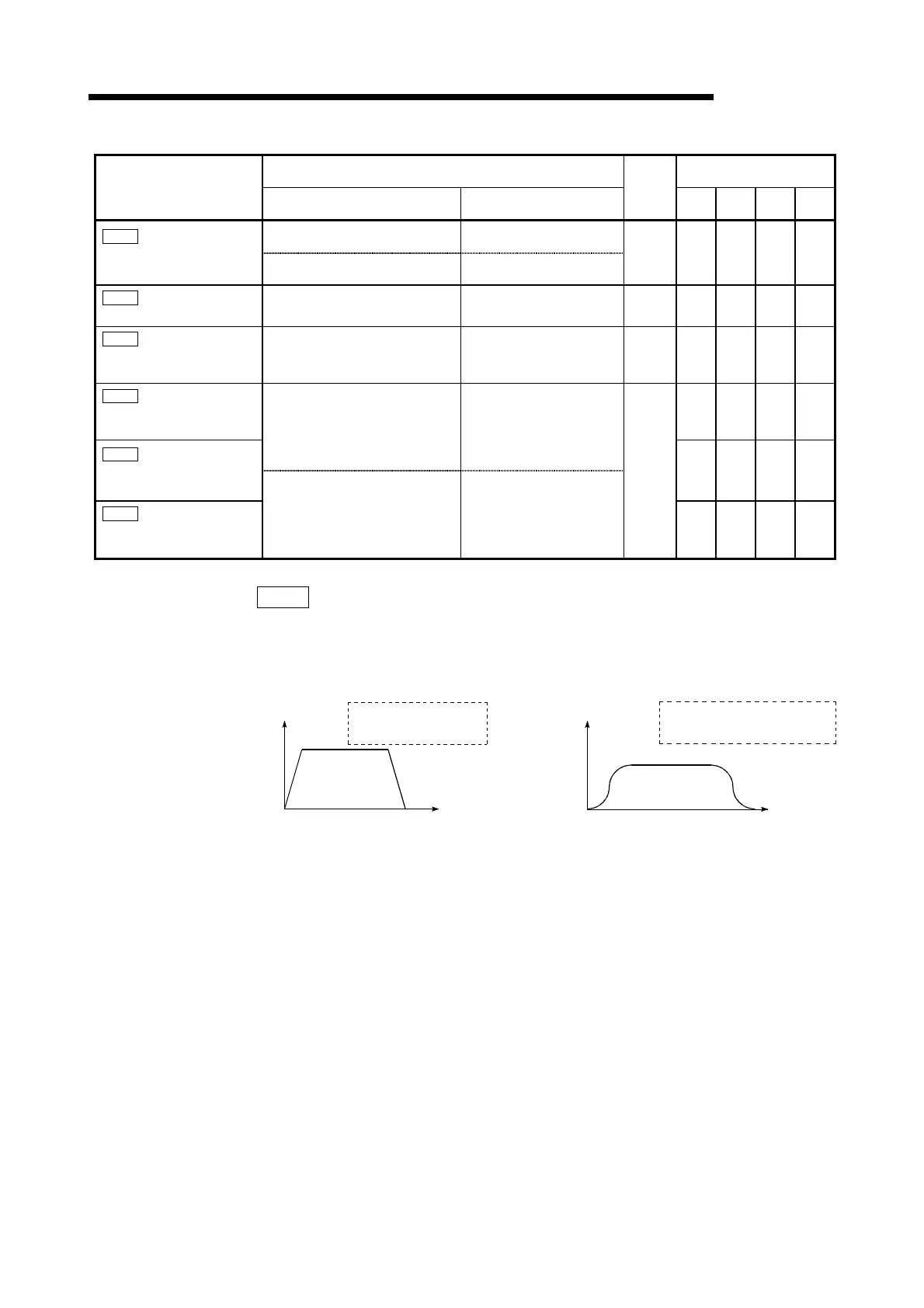

Pr.34
Acceleration/deceleration process selection
Set whether to use automatic trapezoid acceleration/deceleration or S-pattern
acceleration/deceleration for the acceleration/deceleration process.
Note) Refer to "12.7.7 Acceleration/deceleration process function" for details.
Speed
Distance
The acceleration and
deceleration are linear.
<Automatic trapezoid acceleration/deceleration>
<S-pattern acceleration/deceleration>
The acceleration and
deceleration follow a Sin curve.
Speed
Distance
