Mitsubishi QD75M1

7 - 4
MELSEC-Q
7 MEMORY CONFIGURATION AND DATA PROCESS
QD75
Parameter area
Positioning data area
(No.1 to 600)
Block start data area
(No. 7000 to 7004)
PLC CPU
memo area
Monitor data area
Control data area

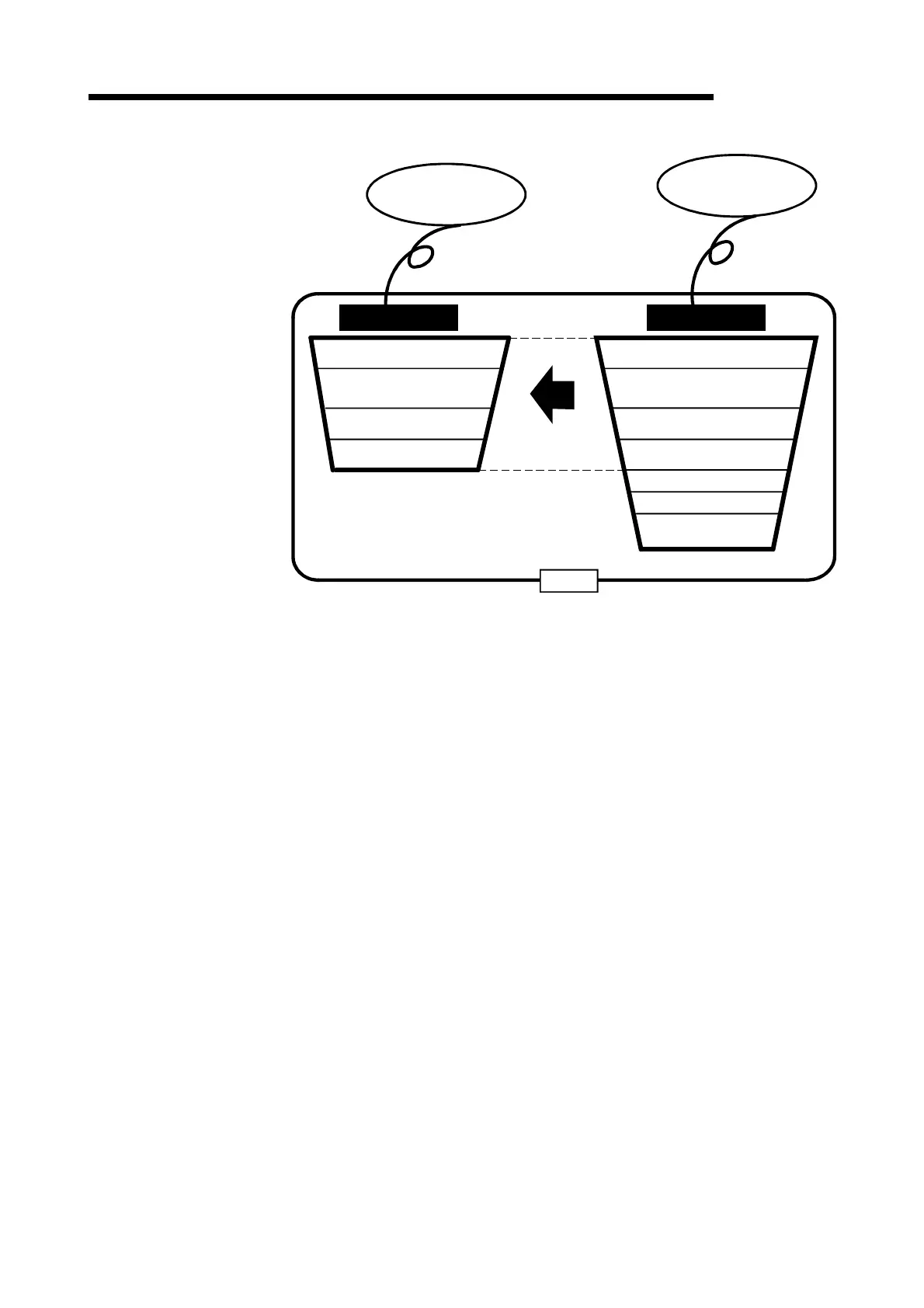

Flash ROM Buffer memory
Parameter area
Positioning data area
(No.1 to 600)
Block start data area
(No.7000 to 7004)
Copy
Data is backed up
here.
User accesses
here.
Servo parameter area
(No.30100 to 30499)
Servo parameter area
(No. 30100 to 30499)
