9 - 6
MELSEC-Q
9 MAJOR POSITIONING CONTROL
[1] Independent positioning control (positioning terminated)
This control is set when executing only one designated data item of positioning. If
a dwell time is designated, the positioning will complete after the designated time
elapses.
This data (operation pattern [00] data) becomes the end of block data when
carrying out block positioning. (The positioning stops after this data is executed.)
Time
Start complete signal
OFF
ON
Dwell time
[X10, X11, X12, X13]
OFF
ON
BUSY signal
OFF
ON
Positioning complete signal
OFF
ON
Positioning terminated (00)
[Y10, Y11, Y12, Y13]
Positioning start signal
[XC, XD, XE, XF]
[X14, X15, X16, X17]
V

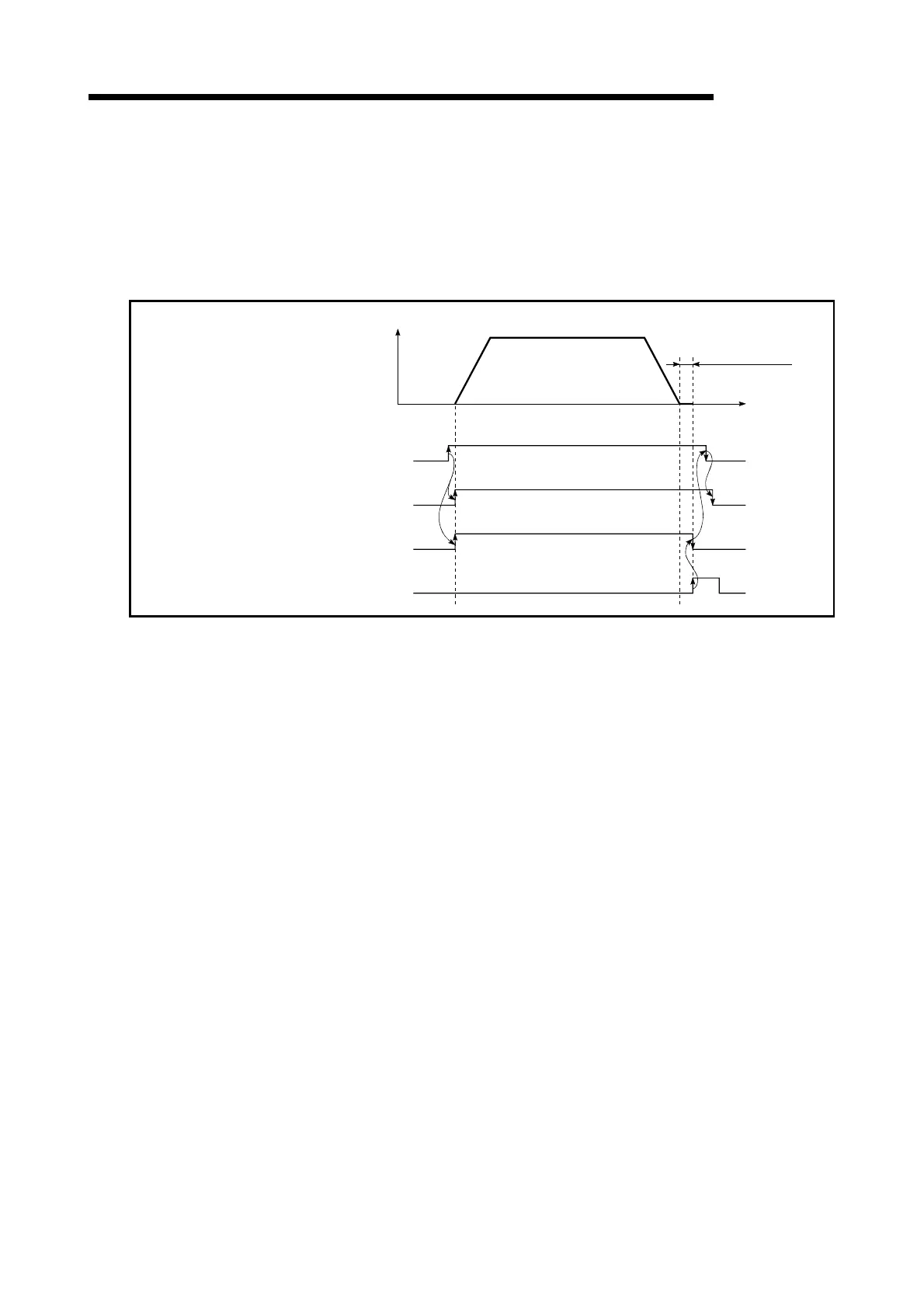

Fig. 9.1 Operation during independent positioning control
