9 - 92
MELSEC-Q
9 MAJOR POSITIONING CONTROL

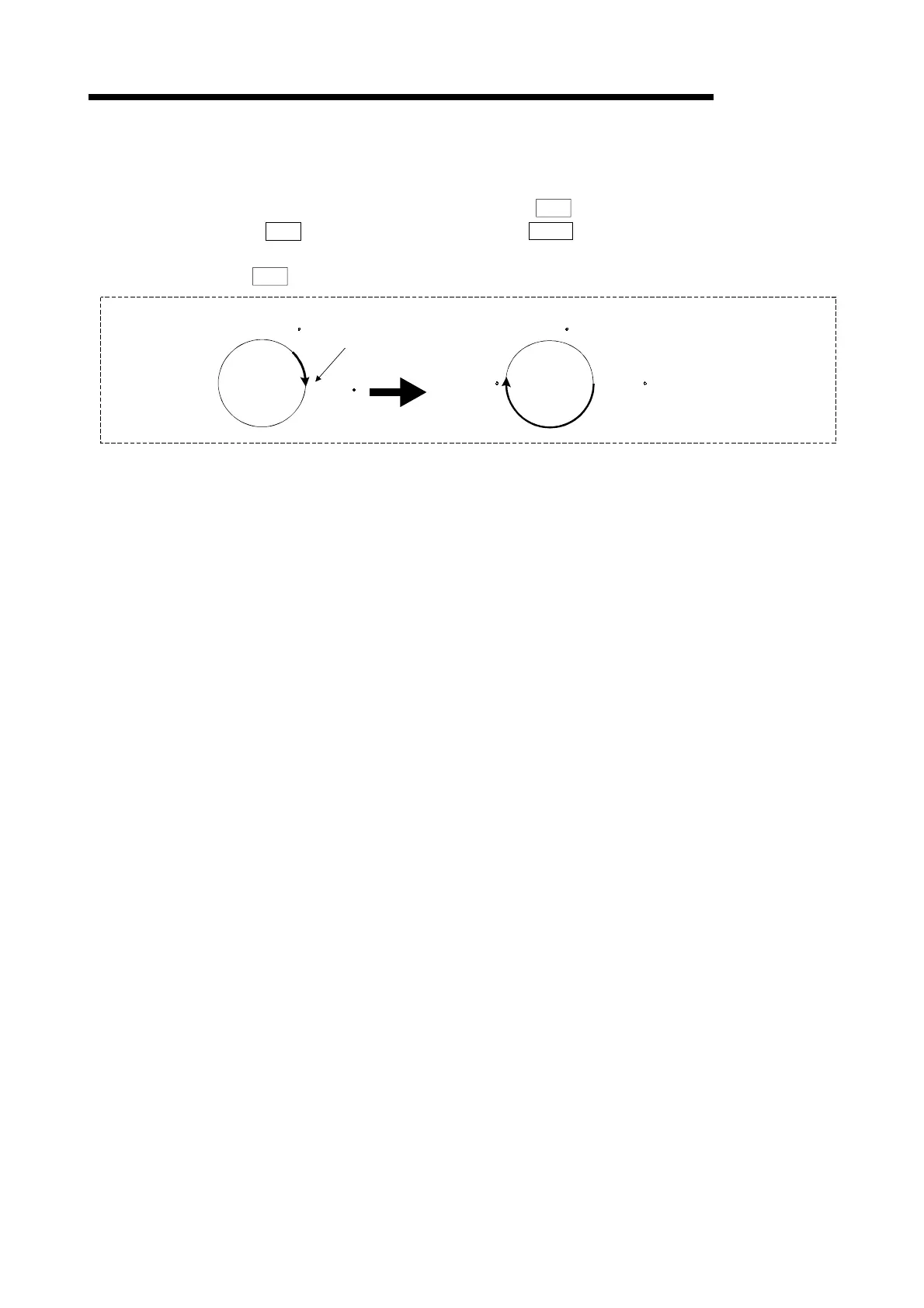

[Operation example]
The following operation assumes that the speed-position switching signal is input at the position of the
current feed value of 90.00000 [degree] during execution of "
Da.2
Control system" "Forward run:
speed/position" at "
Pr.1
Unit setting" of "2: degree" and "
Pr.21
Current feed value during speed
control" setting of "1: Update current feed value".
(The value set in "
Da.6
Positioning address/movement amount" is 270.00000 [degree])
Stop at 270.00000 [degree]
Speed-position
switching signal ON
0.00000
90.00000
0.00000
90.00000270.00000
