12 - 82
MELSEC-Q
12 CONTROL SUB FUNCTIONS
[2] "Acceleration/deceleration method setting" control details and
setting
In the "acceleration/deceleration method setting", the acceleration/deceleration
processing method is selected and set. The set acceleration/deceleration
processing is applied to all acceleration/deceleration.
The two types of "acceleration/deceleration method setting" are shown below.
(1) Automatic trapezoidal acceleration/deceleration processing
method
This is a method in which linear acceleration/deceleration is carried out
based on the acceleration time, deceleration time, and speed limit value set
by the user.
Velocity
Distance

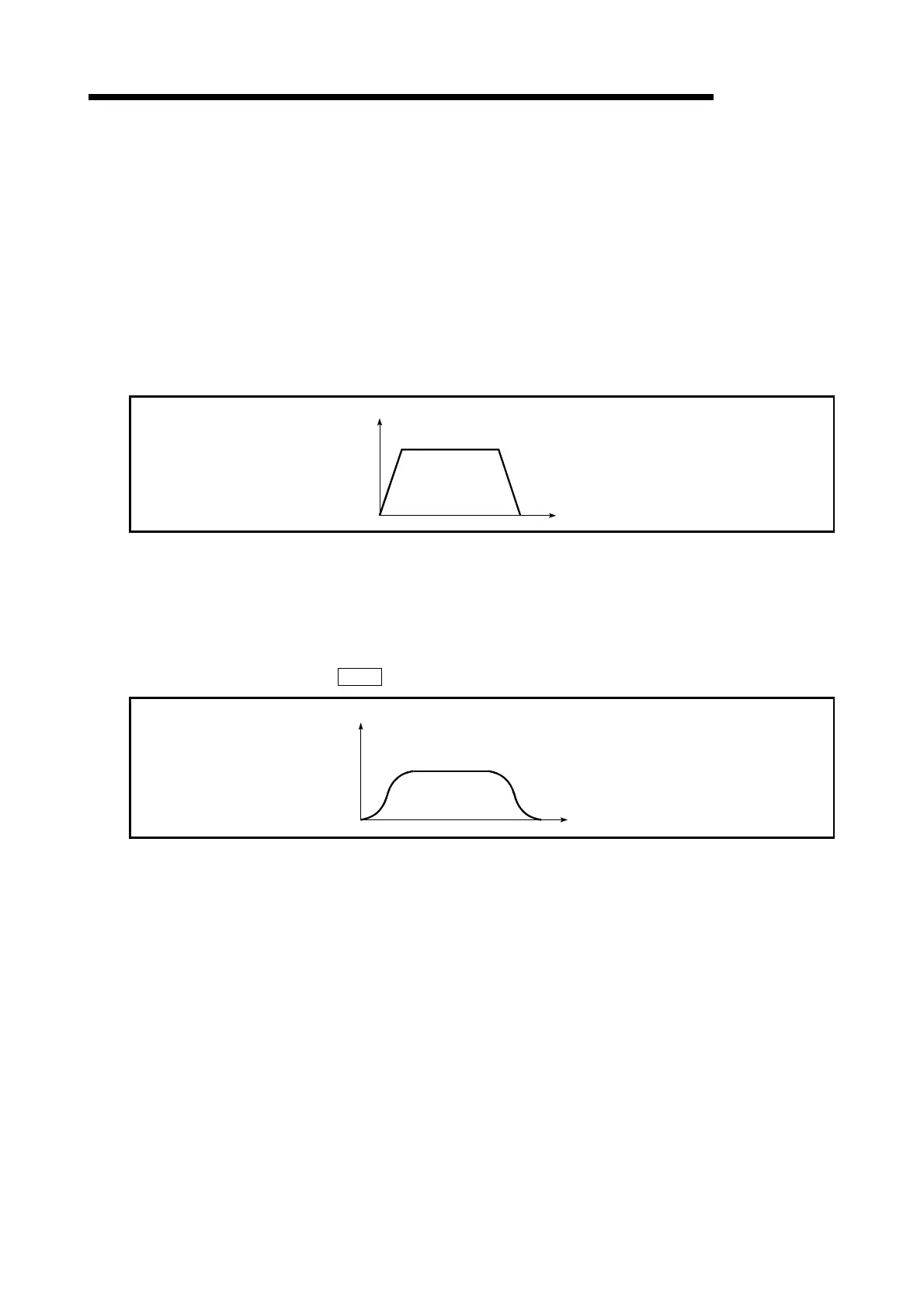

Fig. 12.45 Automatic trapezoidal acceleration/deceleration processing method
(2) S-pattern acceleration/deceleration processing method
In this method, the motor burden is reduced during starting and stopping.
This is a method in which acceleration/deceleration is carried out gradually,
based on the acceleration time, deceleration time, speed limit value, and
"
Pr.35
S-pattern proportion" (1 to 100%) set by the user.
Velocity
Distance
Fig. 12.46 S-pattern acceleration/deceleration processing method
To Next Page
