12 CONTROL SUB FUNCTIONS
The pre-reading start function is effective for the system as shown below.
Cutter
Cutter shaft
Feed shaft
Stock

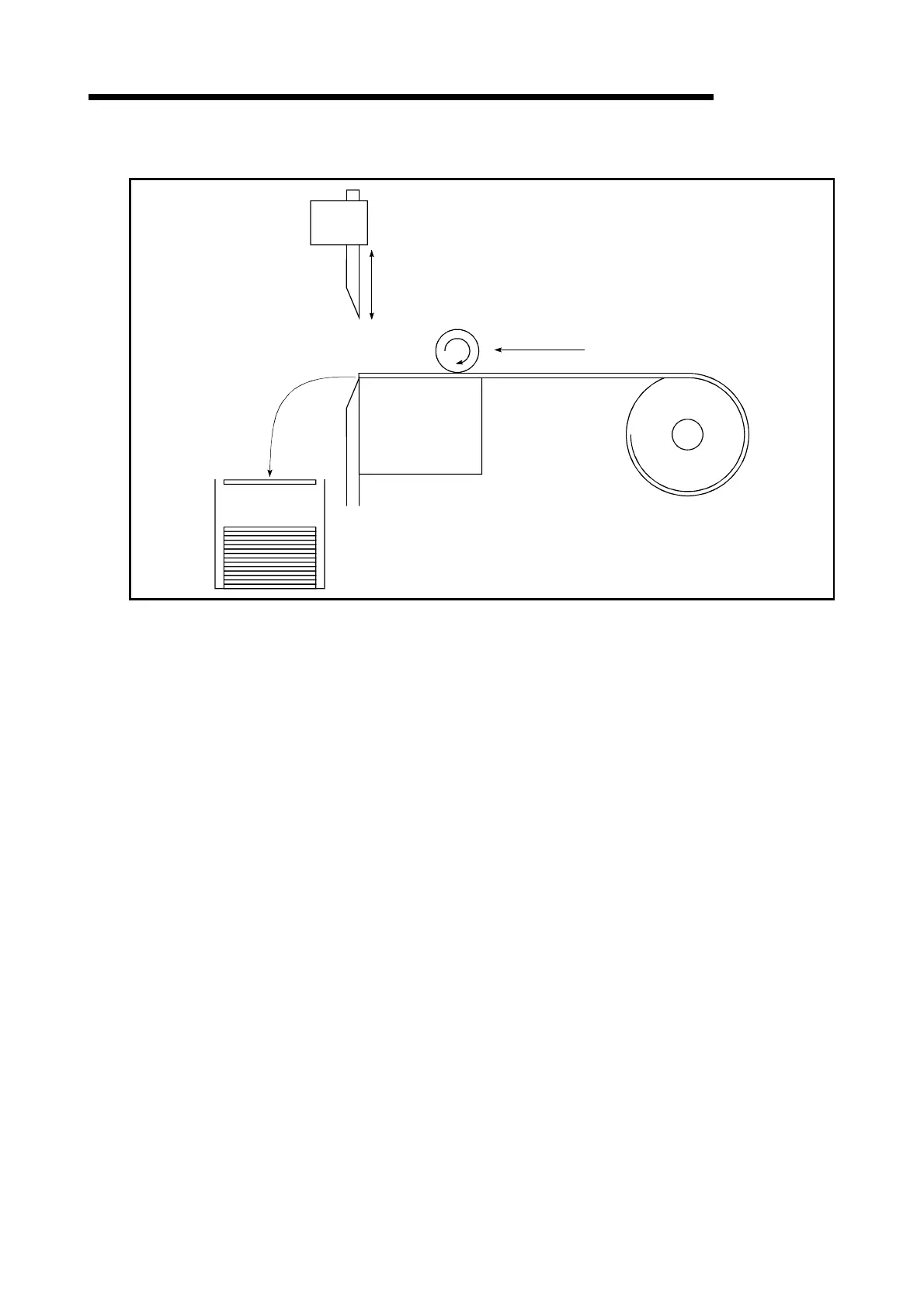

Fig. 12.49 System example using pre-reading start function
Fig. 12.49 shows a system example which repeats:
1) Feeding a stock with a feed shaft; and
2) Cutting it with a cutter
to cut the stock to fixed size. The operations of the feed shaft and cutter shaft are
represented as shown in Fig. 12.50.
