7 PROGRAMMING WHEN EXECUTING THE MASTER FUNCTION

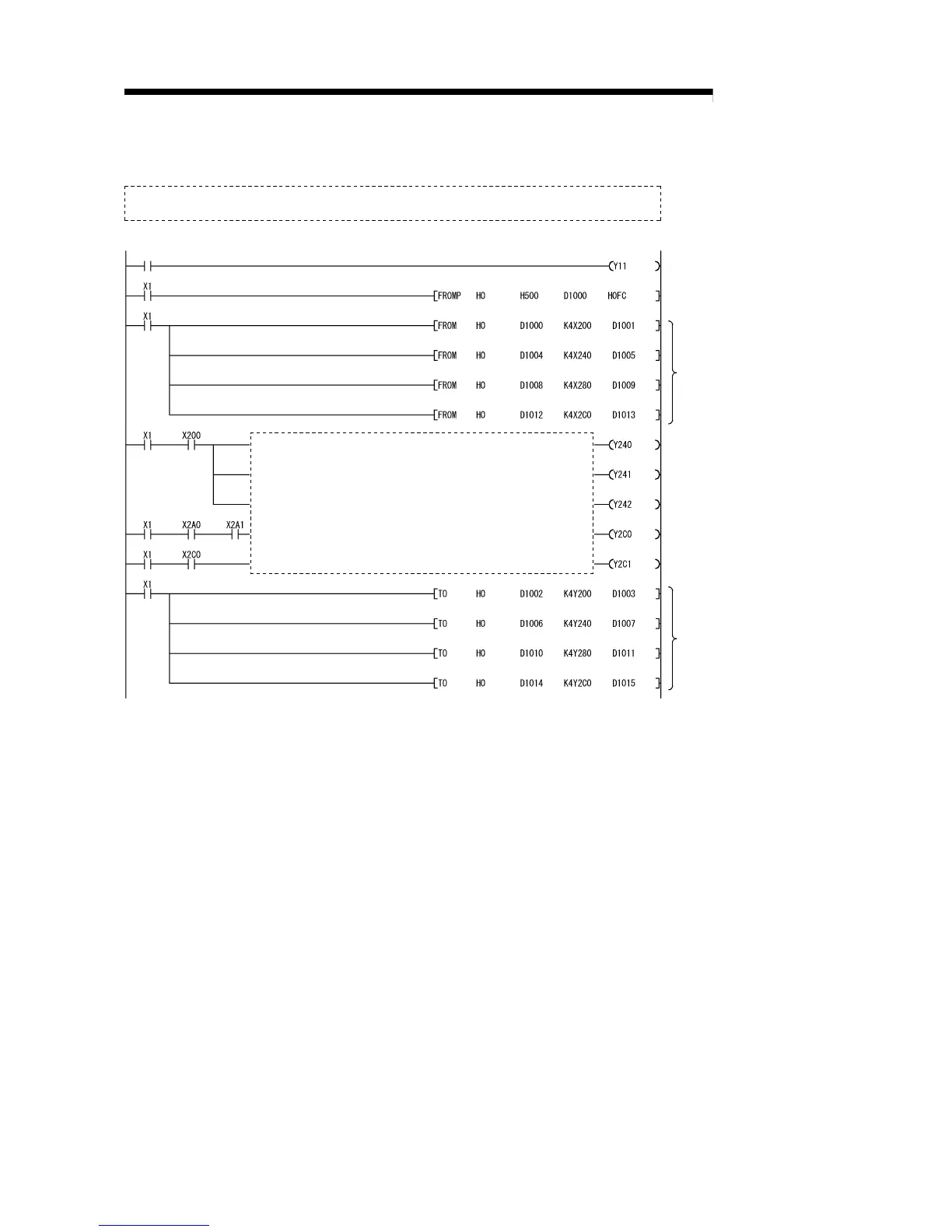

The following explains an example of the sequence program used in this case.
Parameter setting program
(See Section 7.3.)
Starts I/O communication.
Reads the I/O address area
information.
Reads the reception data
according to the I/O address
area information.
Writes the transmission data
according to the I/O address
area information.
I/O communication
start command
Parameter setting program
Controls based on the reception data that has been read.
