6 UTILITY PACKAGE (GX Configurator-DN)
6.3.3 Starting the intelligent function module utility
[Purpose of Setting]
By starting the intelligent function module utility from the GX Developer, display the
Parameter Setting Module Selection screen. From this screen, the screens used to
perform auto refresh and monitor/test module selection (selecting the module for which
monitoring/testing is to be performed) of the QJ71DN91 can be started.
[Startup procedure]
[Tools] [Intelligent function Module utility] [Start]

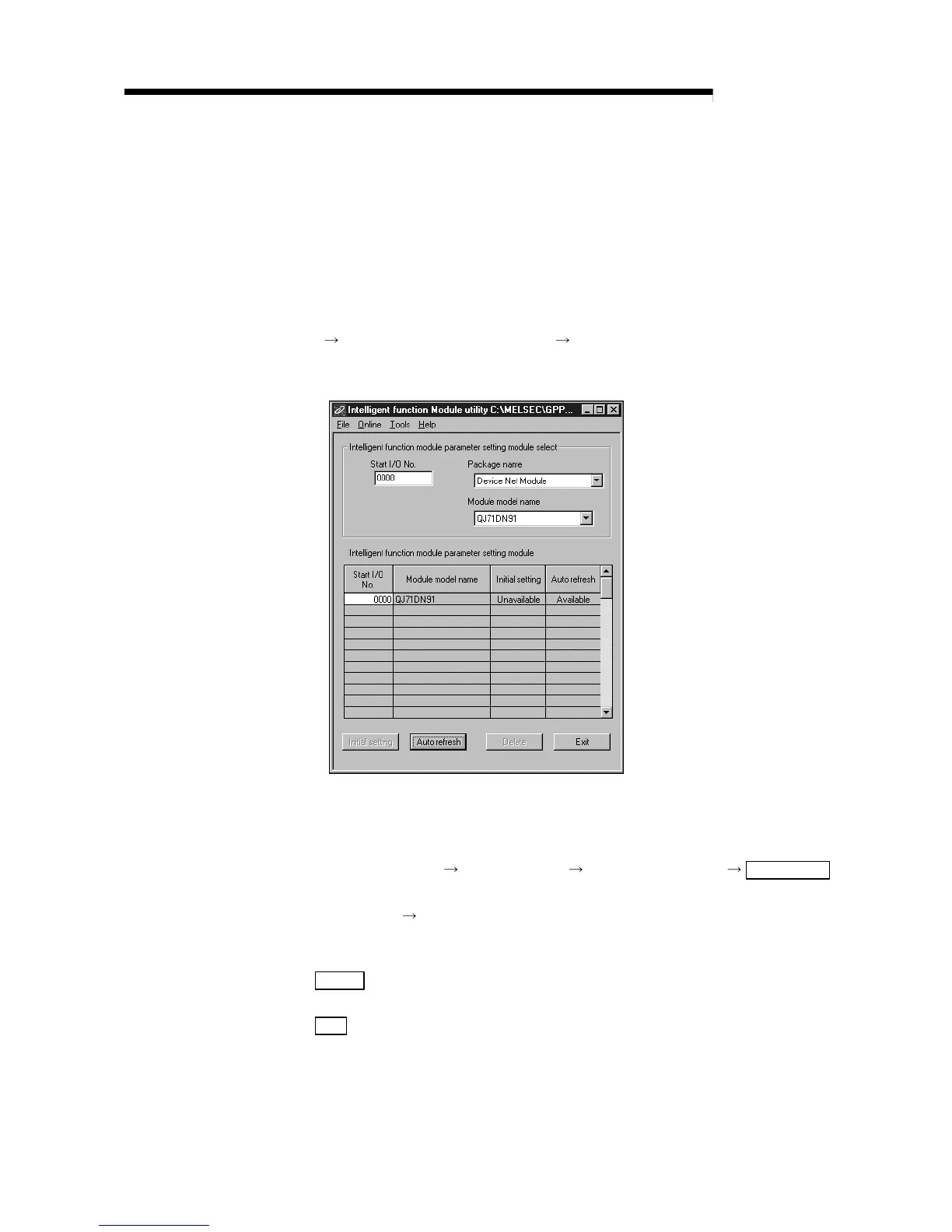

[Setting screen]
[Explanation of items]
(1) Startup operation on each screen
(a) Starting auto refresh settings
"Start I/O No. "
"Package name" "Module model name" Auto refresh
(b) Monitor/Test Module Selection screen
[Online]
[Monitor/test]
(2) Explanation of screen command buttons
Delete
Deletes the initial setting and auto refresh setting of the selected
module.
Exit
Closes the Parameter Setting Module Selection screen.
