2 ENGINE - OUTLINE
Mitsubishi Diesel Engine S16R & S16R2 OPERATION & MAINTENANCE MANUAL
81
Pub. No. K29001-00320 Revision: 1

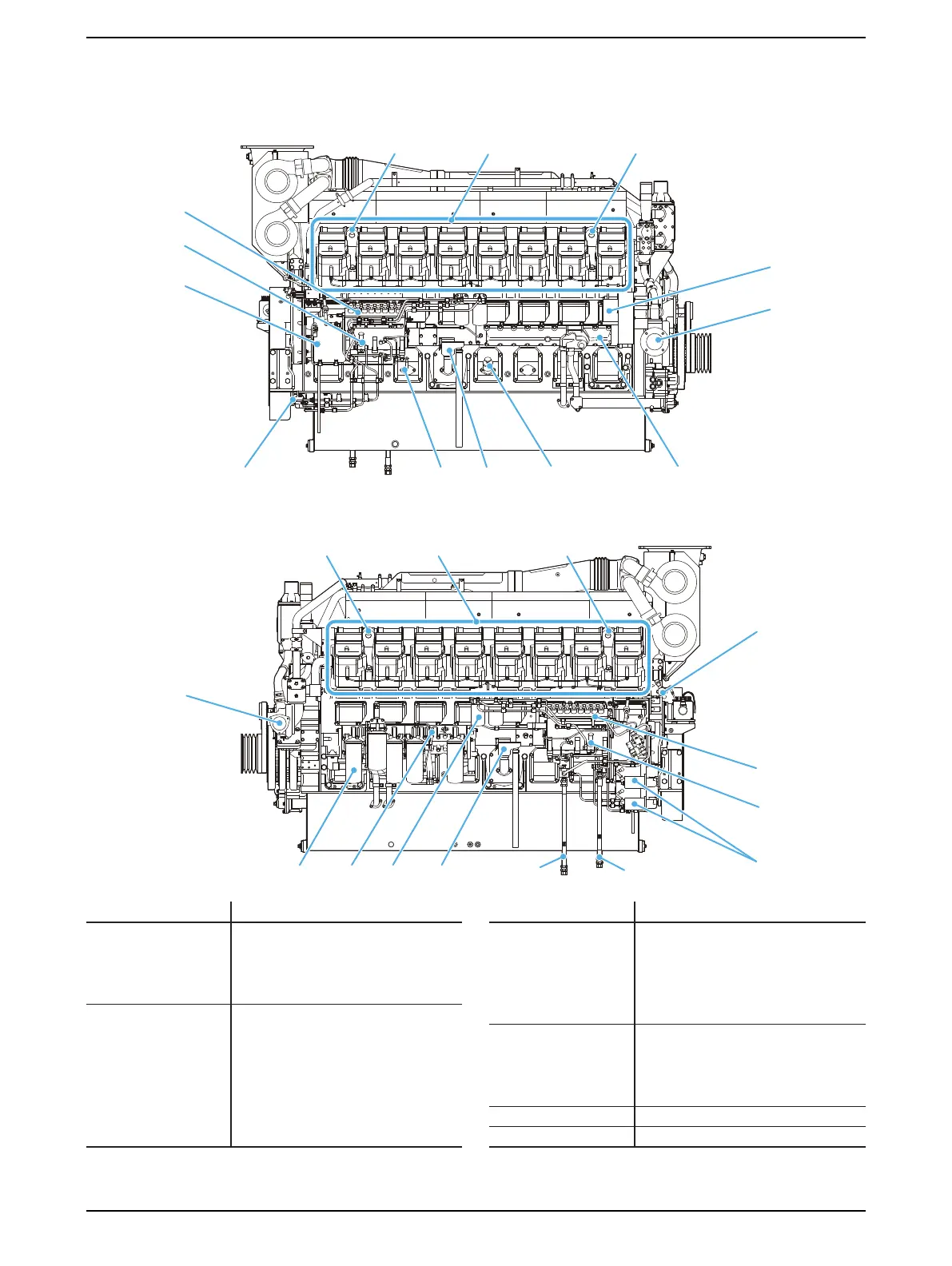

■ Right Side View
■ Left Side View
(3)
(2) (1)
(16)
(20)
(6)
(5)
(12) (15)(11)(13)(4)
(18)
No. Name No. Name
Engine body
(1) Front hanger
Lubrication system
(11) Breather
(2) Rear hanger (12) Oil filler
(3) Cylinder head (13) Oil level gauge
(4) Manual turning gear (14) Oil filter
Fuel system
(5) Fuel injection pump (15) Oil cooler
(6) Priming pump/
Cooling system
(16) Engine coolant inlet
Fuel feed pump (17) Air cooler coolant inlet
(7) Fuel filter (18) Engine coolant drain
(8) Fuel control link cock
(9) Fuel inlet Starting system (19) Starter
(10) Fuel return port Electrical system (20) Alternator
(3)
(1) (2)
(19)
(5)
(6)
(11)
(9) (10)(7)(15)
(14)
(8)
(17)
