LUBRICATION SYSTEM
9-3
1.2
Removing and inspecting oil p
an,
oil pump,
oil pressure switch

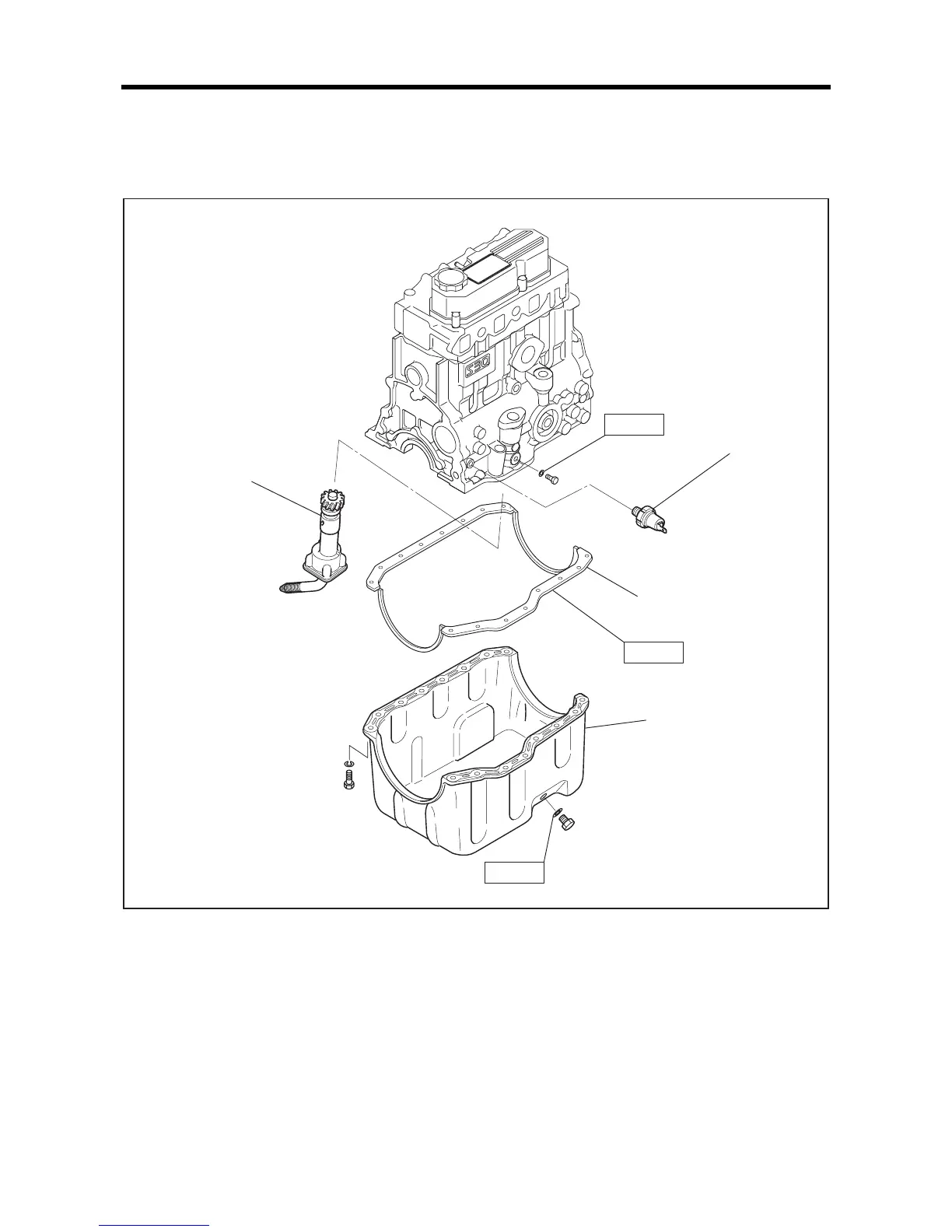

Removing and inspecting oil pan, oil pump, oil pressure switch
Removing sequence
1
Oil pan
3
Oil pu
mp
2
Oil pan gasket
4
Oil pressure switch
4
3
1
2
Replace
Replace
Replace
112
114
